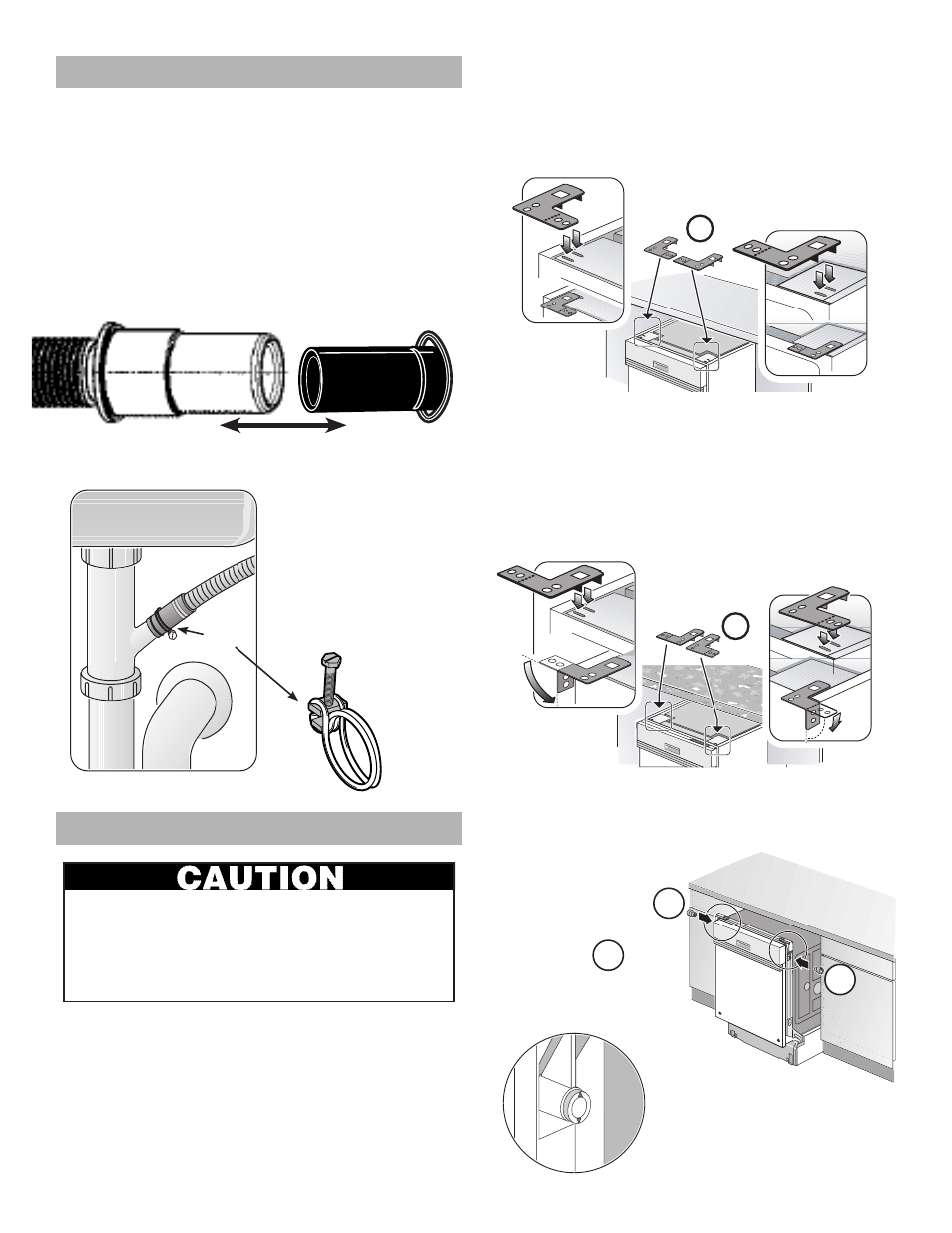

10
Top Mount is used for countertops made of wood or other
materials that can be easily drilled. Orient the mounting
brackets as shown in Figure 14, and position the two small
tabs on the mounting brackets over the two slots on the
dishwasher’s front corners. Push the mounting brackets down
firmly to insert the tabs into the slots.
For a large port, use the drain hose as it is.
For a small port, use the provided Rubber Drain Hose
Adaptor (J).
1. Obtain the Rubber Drain Hose Adaptor (J) from the
Dishwasher Installation Kit (do not substitute).
2. Insert the Rubber Drain Hose Adaptor into the end of
the drain hose (see Figure 12). Be sure to fully insert
the drain hose adaptor.
3. Use the Screw Clamp (G) provided to attach the drain
hose to the house plumbing as shown in Figure 13.
The dishwasher can be secured into its enclosure in 3 ways:
NOTE: If your dishwasher opening width measures >23 15 /
16
in
(60.8 cm) use the TOP or SIDE MOUNT mounting methods.
If your dishwasher opening width measures <23
15 /
16
in (60.8
cm) use the ALTERNATE SIDE MOUNT mounting method.
Figure 13
Before installing the supplied countertop mounting
brackets, decide which method of securing the
dishwasher into its enclosure will be used. Once the
mounting brackets are installed on the dishwasher,
removing them is difficult and will damage the
mounting brackets and the dishwasher.
Screw
Clamp
Installation of Mounting Brackets
Installation of Rubber Drain Hose Adaptor
Alternate Side Mount (for opening less than 23 15 /
16
in) is used
for countertops made of marble, granite, or other very hard
materials that cannot be easily drilled. Insert a side mount
force distributor (Part M) in each side as shown in Figure 16.
Alternate Side Mount
Figure 16
M
M
M
Figure 12
Side Mount is used for countertops made of marble, granite,
or other very hard materials that cannot be easily drilled.
Bend the mounting brackets along the small holes and in the
same direction as the two small tabs. Orient the mounting
brackets as shown in Figure 15, and position the two small
tabs on the mounting brackets over the two slots on the
dishwasher’s front corners. Push the mounting brackets down
firmly to insert the tabs into the slots.
Top Mount
Figure 14
Figure 15
Side Mount
C
C
