Water Supply Shut Off Valve
Install an easily accessible shut-off valve (not supplied) in
the hot water supply line, as shown in Figure 7. All solder
connections must be made before the water line is connected
to the dishwasher.
To connect the hot water supply:
1. Assemble the water supply adaptor fitting from the
parts bag onto the dishwasher water supply hose. This
connection does not require Teflon brand tape.
2. Pass the dishwasher water supply line with attached
adaptor through the opening toward the water shut off
valve. Take care not to allow the hose to kink or twist
behind the dishwasher.
3. Connect the dishwasher water supply line with adaptor to
the water shut off valve. You will need to use an approved
dishwasher water supply line with the correct fittings for
this connection. Always use the appropriate seal when
making plumbing connections.
NOTE: The end of the dishwasher water inlet hose is heavy
and will need to be supported. It is best to lay the end on
the cabinet floor as shown in Figure 7.
4. After all connections are made, turn on the hot water and
check for leaks.
The dishwasher drain hose may be connected to the house-
hold or field drain plumbing in one of four ways. You will
need a 1
1 /
4
” diameter hole in order to pass the drain hose
through the cabinet.
1 Directly to the under sink dishwasher drain connection,
as shown in Figure 8.
2 Directly to a disposer dishwasher drain connection, as
shown in Figure 9.
3 To the under sink dishwasher drain connection through
an air gap, as shown in Figure 10.
4 To a disposer dishwasher drain connection through an air
gap, as shown on Figure 11 .
IMPORTANT NOTES:
• If local ordinance require an air gap, install it according
to the manufacturer’s instructions.
• If the dishwasher drain hose is to be connected to a
disposer dishwasher drain connection, remove the plug
from the disposer’s dishwasher drain connection.
• The dishwasher drain hose must have one place along
its length that is securely attached 20 inches above the
cabinet floor.
• The drain hose length can be extended if necessary.
The maximum length of the drain hose, including the
hose leading to the air gap, is 150 inches.

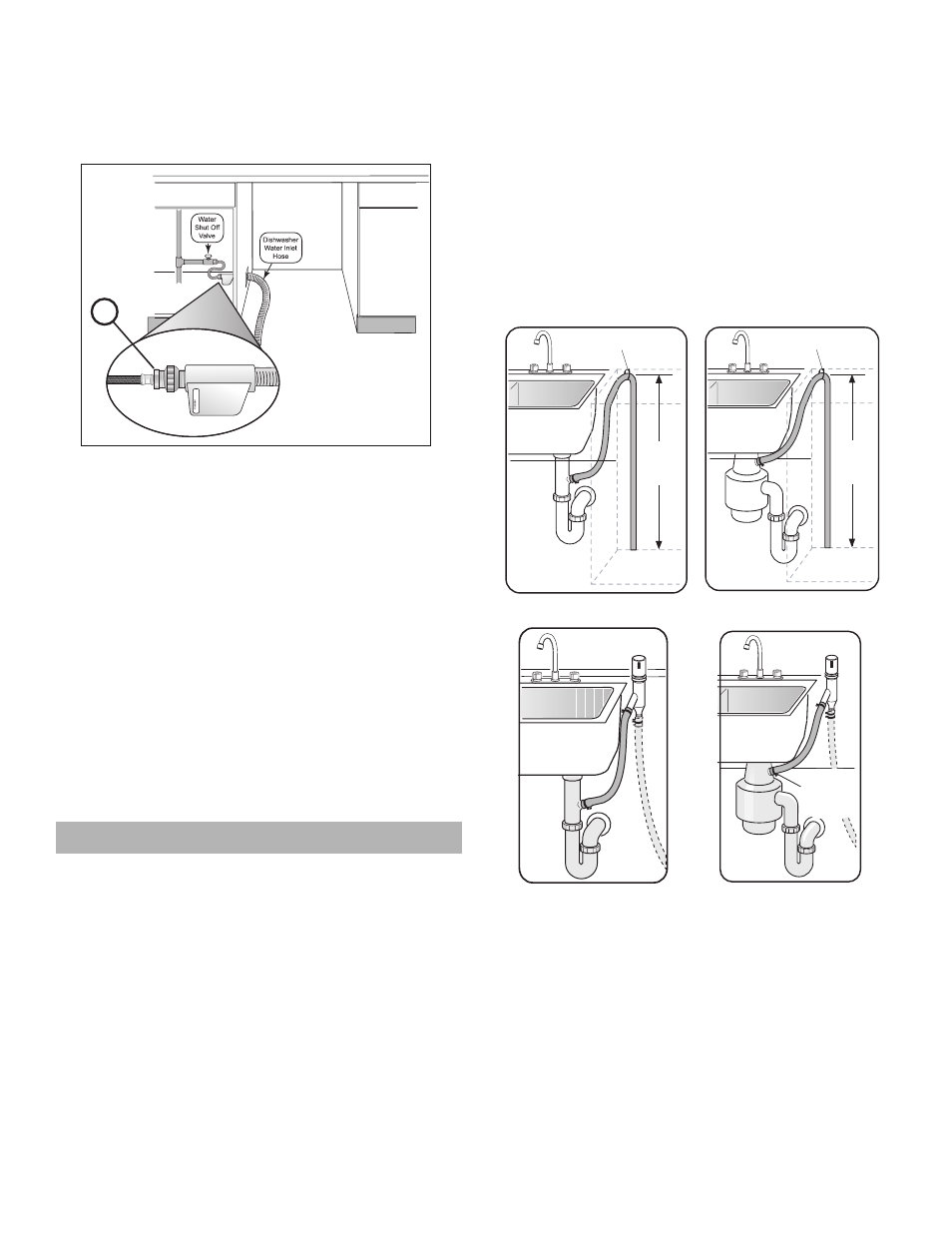

Figure 7
Figure 10 Figure 11
Figure 8
Non-Metallic Tie
MIN.
20"
MIN.
20"
Non-Metallic Tie
Figure 9
Remove
plug
Drain Connections
