NX800LX
20
1.6 Connectors

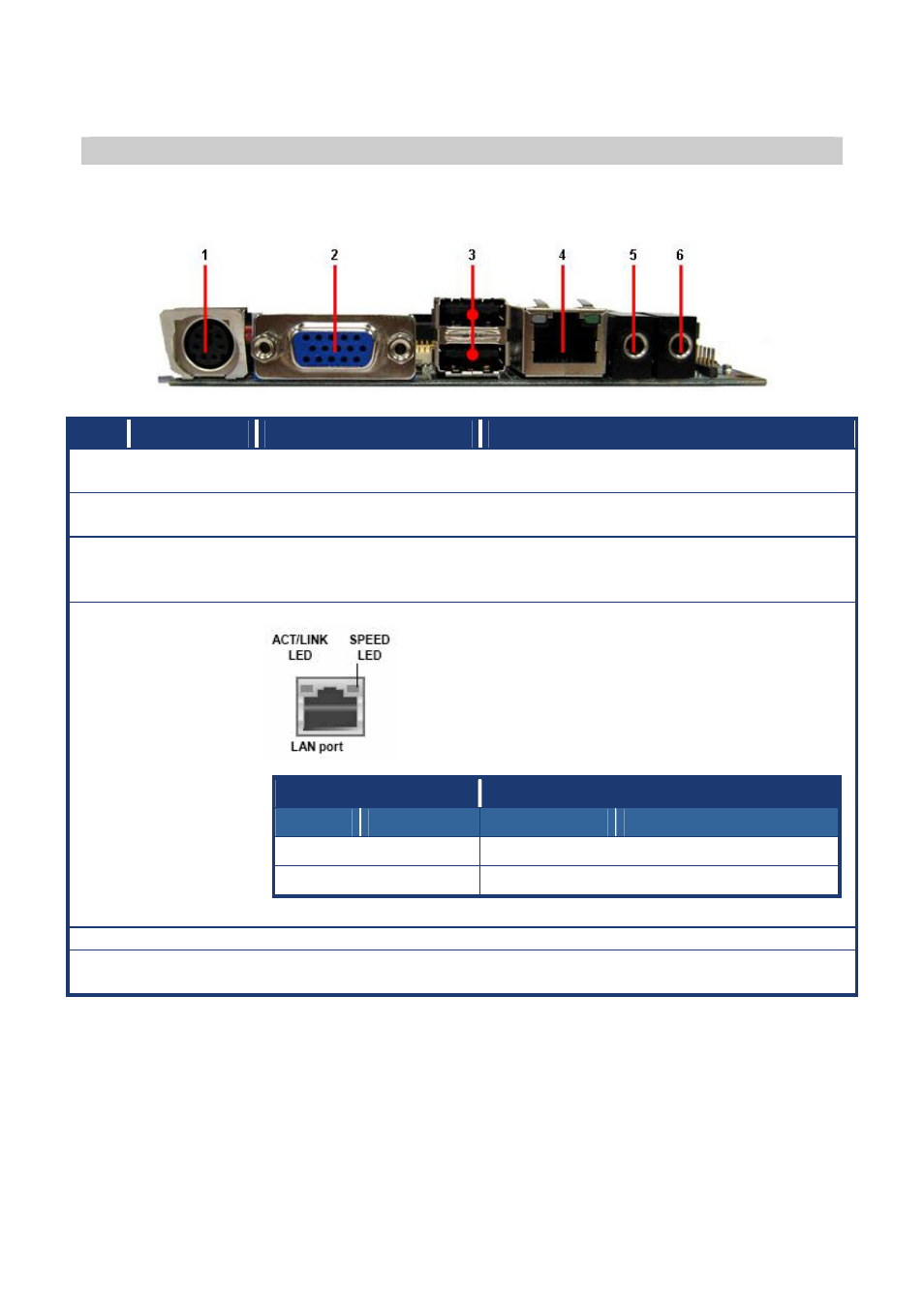

1.6.1 Rear Panel Connectors
No Label Function Description
1 CN1 PS/2 keyboard and
mouse connector The standard PS/2 DIN connector is for a
PS/2 keyboard and mouse
2 VGA1 VGA port This 15-pin port is for a VGA monitor or
other VGA-compatible devices.
3 USB23 USB 2.0 connector x 2 These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0
devices.
LAN (RJ-45) connector This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications. The optional
10/100 Mbps LAN controller allows 10/100
Mbps connection to a Local Area Network
(LAN) through a network hub. 4 CN9
ACT / LINK LED SPEED LED
Status Description Status Description
OFF / Y Linked OFF 10Mbps connection
B. Y Activity Green/Orange 100Mbps connection
5 CN3 Microphone port (Black) This port connects a microphone.
6 CN2 Line in / Line out port
(Black) This port connects a headphone or a
speaker.
