Chapter 5
88

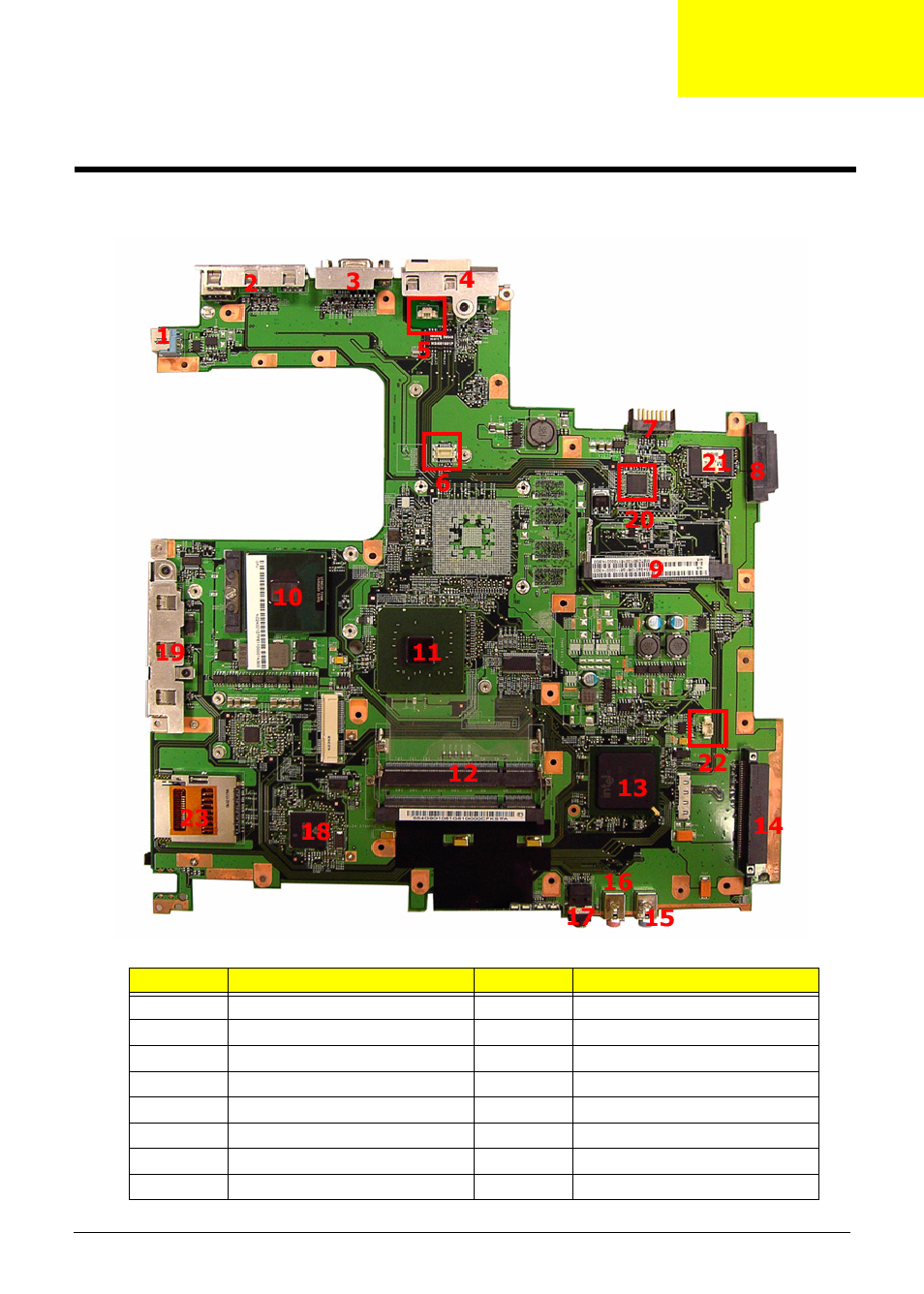

Top View
No.
Description
No.
Description
1
DC-in jack
2
USB connector
3
CRT connector
4
RJ11 & RJ45 connector
5
MDC module connector
6
MDC board connector
7
Main battery connector
8
ODD connector
9
Mini PCI slot
10
CPU
11
North bridge
12
DIMM slot
13
South bridge
14
HDD connector
15
Line-in jack
16
Microphone-in jack
