Chapter 3 56

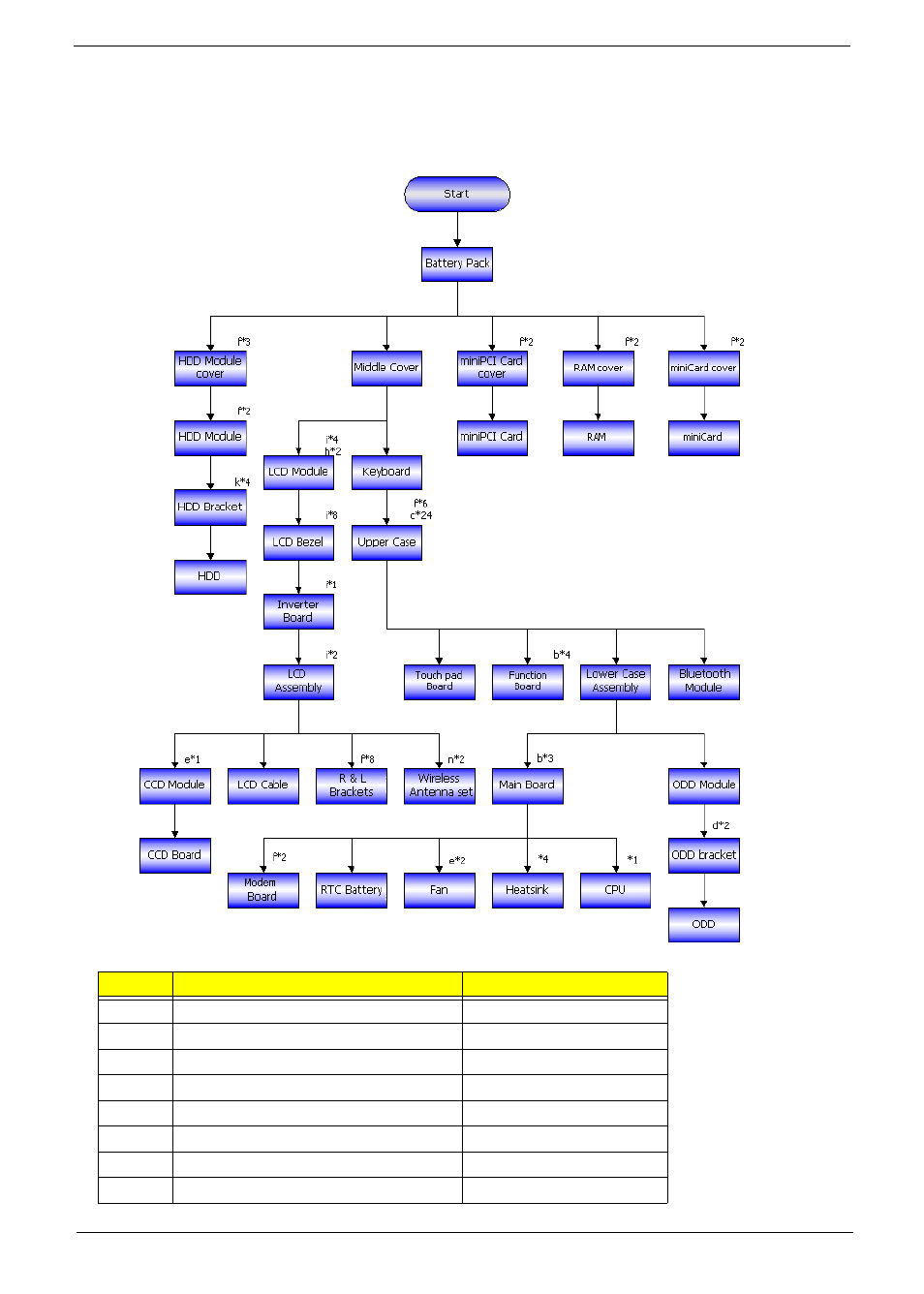

Disassembly Procedure Flowchart
The flowchart gives you a graphic representation on the entire disassembly and reassembly and instructs you how
to remove the components.
No. Description Part No.
a SCW HEX NYL I#R-40/O#4-40 L5.5 34.00015.081
b SCREW MACH WAFER M2*L4 NI 86.T39V1.002
c SCRW M2.5*6 ~ L-CASE + U-CASE 86.00D28.330
d SCRW M2*L3 86.00D29.620
e SCRW M2.5*5 WAFER B-ZN ROHS 86.00D47.630
f SCREW M2*L3 NYLOK CR 3+ 86.00E25.723
g SCREW M2*L3 NON-NYLOK CR3+ 86.00E31.723
h SCREW M2.5*L6 NYLOK CR3+ 86.00E33.736
