Base view – Acer 5620 User Manual
Page 20
10
Chapter 1

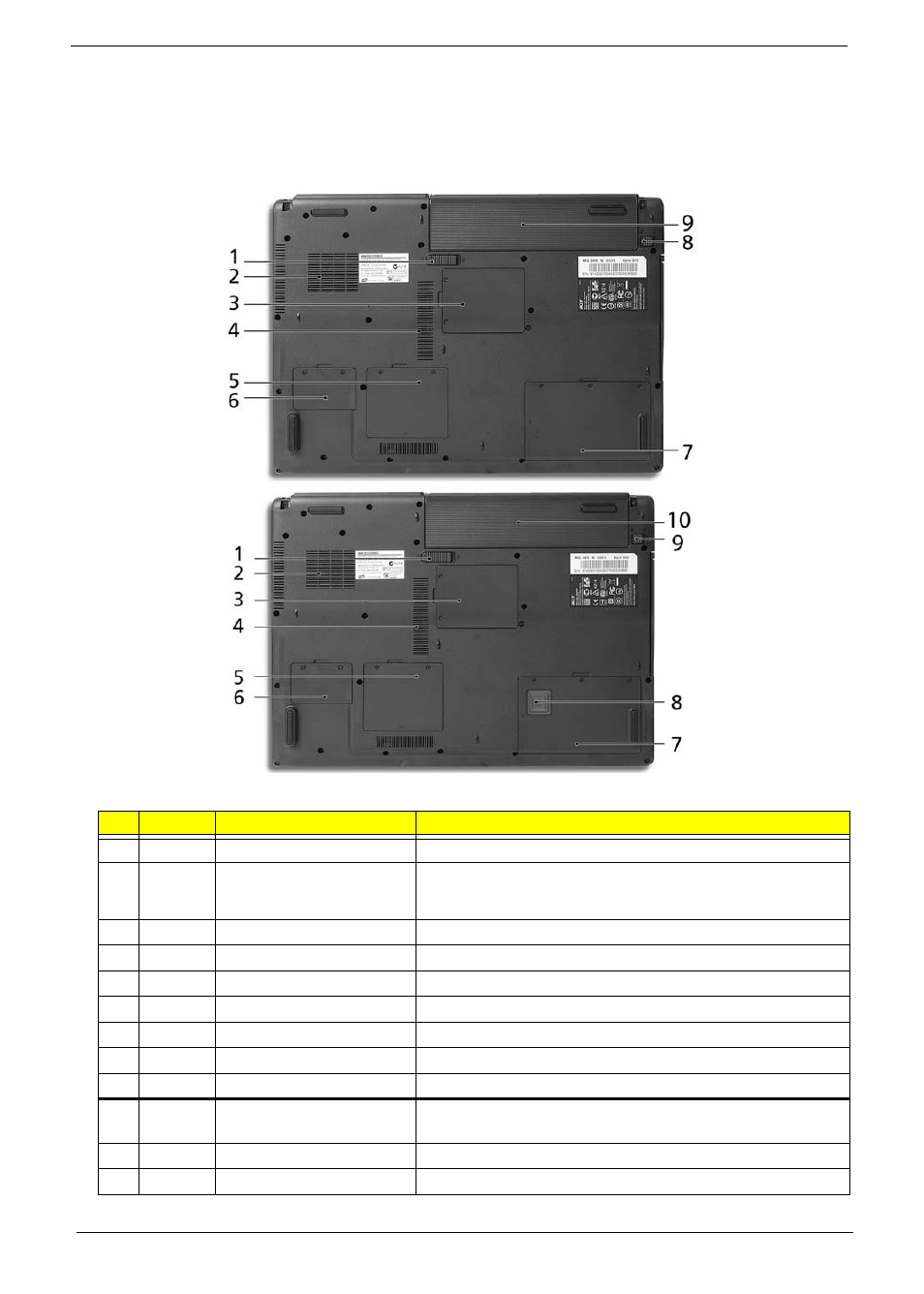

Base View
Upper: Aspire 9420/ 9410/ 7110 Series
Lower: TravelMate 5620/ 5610 /5110 Series
#
Icon
Item
Description
1
N/A
Battery release latch
Releases the battery for removal.
2
N/A
Cooling fan
Helps keep the computer cool.
Note: Do not cover or obstruct the opening of the fan.
3
N/A
Mini PCI card bay
Houses the computer’s Mini PCI card.
4
N/A
Ventilation slots
Enable the computer to stay cool, even after prolonged use.
5
N/A
Memory compartment
Houses the computer’s main memory.
6
N/A
PCI Express Mini Card bay Houses the computer’s PCI Express Mini card.
7
N/A
Hard disk bay
Houses the computer’s hard disk (secured with screws).
8
N/A
Battery lock
Locks the battery in position.
9
N/A
Battery bay
Houses the computer’s battery pack.
8
N/A
Acer DASP (Disk Anti-
Shock Protection)
Protects the hard disk drive from shocks and bumps.
(TravelMate 5620/ 5610/ 5110 series)
9
N/A
Battery lock
Locks the battery in position.
10
N/A
Battery bay
Houses the computer’s battery pack.
#
