Voltage Requirements
Page 2-11
Cascading Multiple FS7000 Switches
Multiple FriendlyNET 7000 Series Switches can be connected together (called
cascading). See Figure 2-15.

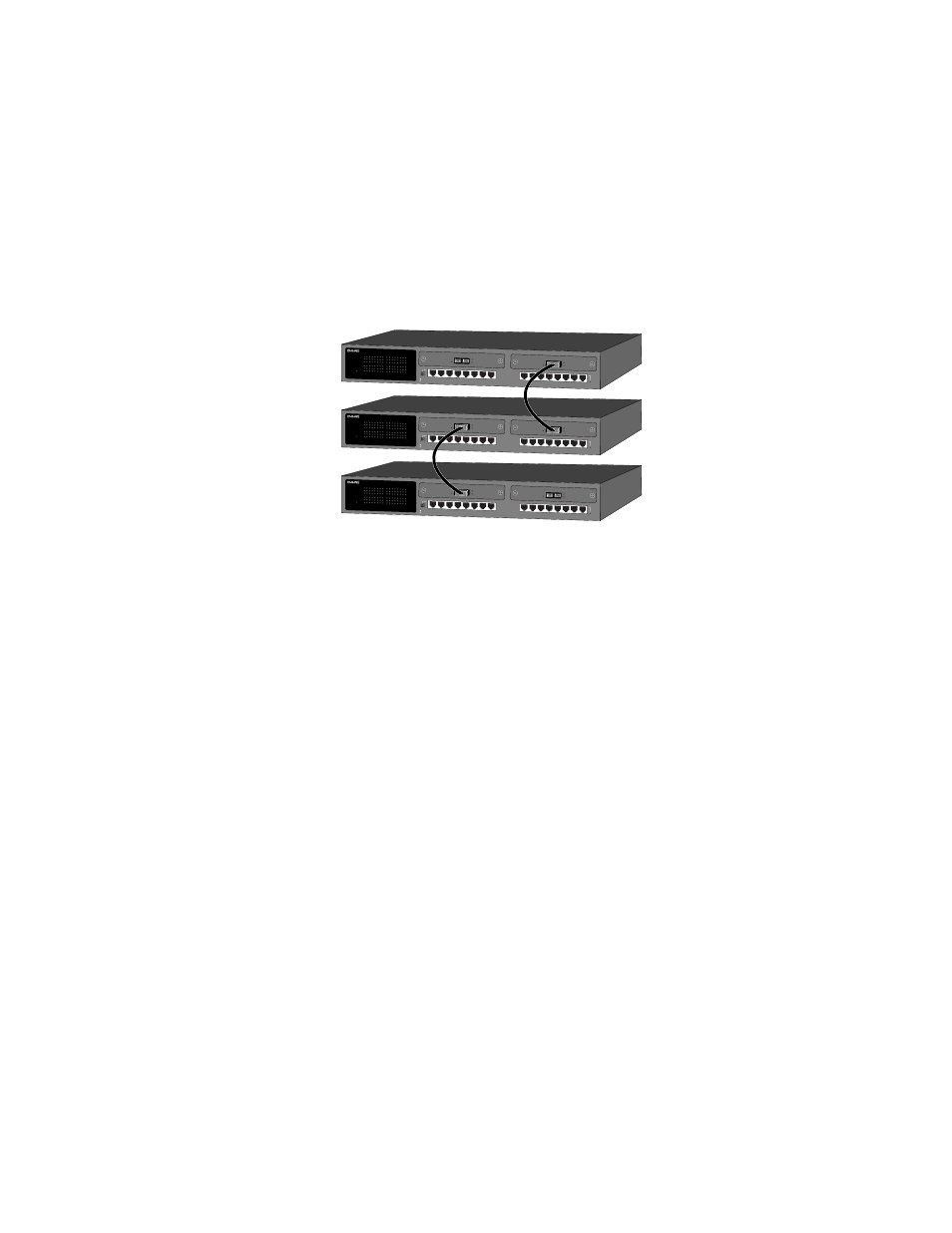

Figure 2-15 Cascading FS7000 Switches
Voltage Requirements
Voltage requirements for all models:
❑
100 to 240 volts AC, 50/60Hz, 1.2A maximum. Power sensing is
automatic for all international utility power.
▲
Important! Check the AC power line voltage used in your
area.
Powering on the Switch
The Switch may be turned on with (or without) LAN segment cables
connected.
To power on the Switch:
1
Connect one end of the power cord (supplied) into the
AC power connector on the back panel of the Switch.
◆
Note: FS7000 Series Switches are equipped with an internal
power supply. Power sensing is automatic for all interna-
tional utility power.
2
Connect the power cord to a local power source outlet.
3
Switch the power switch to the “on” position.
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Uplink
Normal
Uplink
MII
Power
Option Slot B
100/10Mbps
Full/Half
Link/Data
Power
FriendlyNET 7000 Series Gigabit Switch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
100/10Mbps
Full/Half
Link/Data
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
Option Slot A
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision
Power
Tx
Rx
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision
Power
Tx
Rx
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Uplink
Normal
Uplink
MII
Power
Option Slot B
100/10Mbps
Full/Half
Link/Data
Power
FriendlyNET 7000 Series Gigabit Switch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
100/10Mbps
Full/Half
Link/Data
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
Option Slot A
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision
Power
Tx
Rx
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision
Power
Tx
Rx
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
Uplink
Normal
Uplink
MII
Power
Option Slot B
100/10Mbps
Full/Half
Link/Data
Power
FriendlyNET 7000 Series Gigabit Switch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
100/10Mbps
Full/Half
Link/Data
A1 A2 A3 A4 A5 A6 A7 A8
B1 B2 B3 B4 B5 B6 B7 B8
Option Slot A
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision
Power
Tx
Rx
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision
Power
Tx
Rx
