Installation
Page 2-4
To install the Gigabit SX XP Module:
1
Power down the unit.
2
Remove the metal cover from the front of an empty expan-
sion slot (located on the Switch’s front panel) using a small
Phillips screwdriver.
3
Align the bottom of the Gigabit module with the rails on
the inside of the expansion slot. See Figure 2-5.

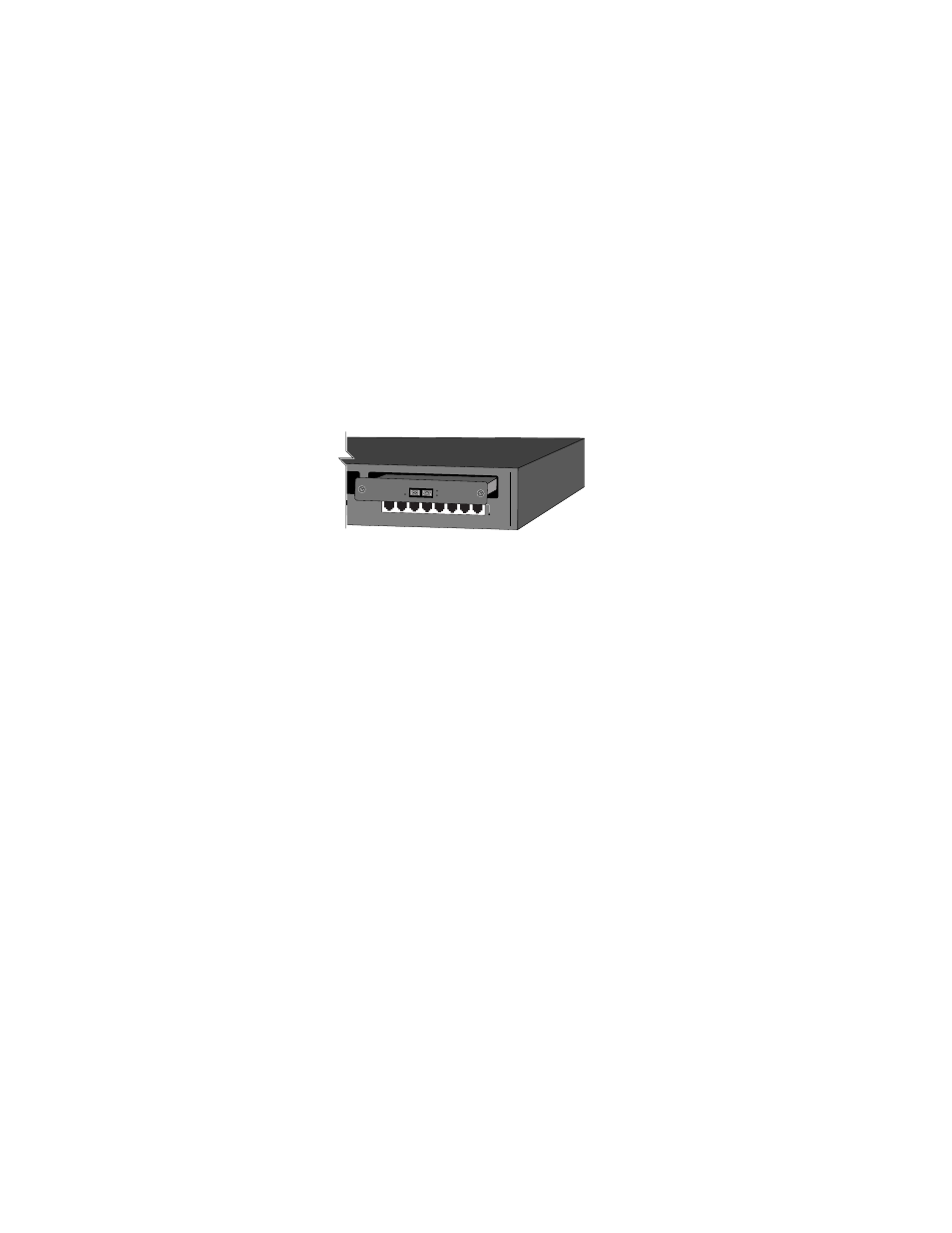

Figure 2-5 Installing a Gigabit module
4
Slide the module into the expansion slot until it stops, then
push the module in until it seats with the connector.
5
Secure the module into place by tightening the screws on
the module’s cover using a small Phillips screwdriver.
10/100 8-Port XP Module
Each Asanté 10/100Mbps 8-port expansion module adds another 8 ports to the
Switch. Installation is easy.
To install the 10/100 8-Port XP Module:
1
Power down the unit.
2
Remove the metal cover from the front of an empty expan-
sion slot (located on the Switch’s front panel) using a small
Phillips screwdriver.
3
Align the bottom of the 8-port expansion module with the
rails on the inside of the expansion slot.
4
Slide the module into the expansion slot until it stops, then
push the module in until it seats with the connector.
5
Secure the module into place by tightening the screws on
the module’s cover using a small Phillips screwdriver.
16 15 14 13 12 11 10 9 MII Power
Option Slot B
Switched Gigabit Ethernet Port
Link/Data
Full Duplex/Collision Power
Tx Rx
