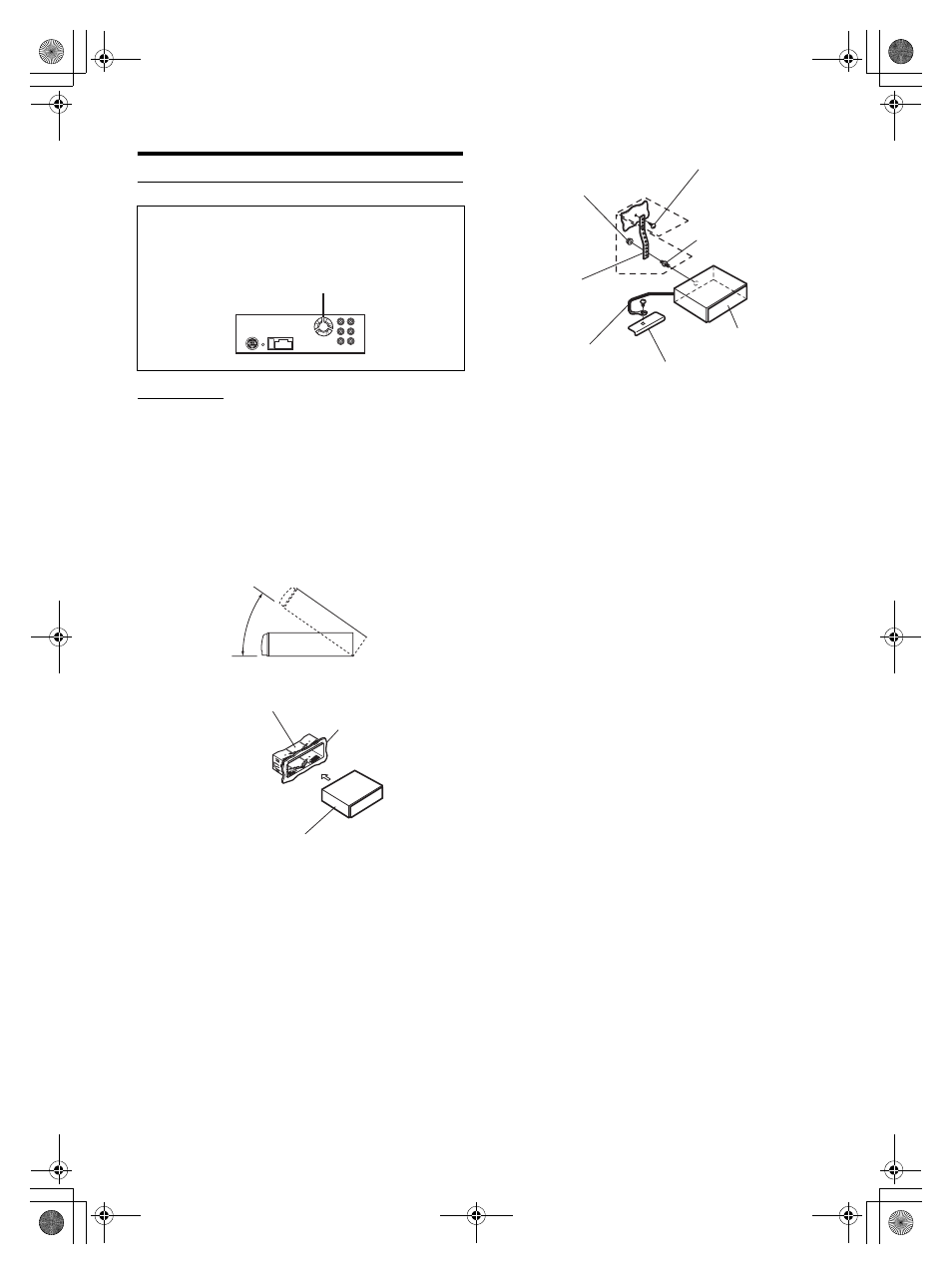

Installation

Accessory List

• Head unit .............................................................................1
• Power cable.........................................................................1
• Mounting sleeve ..................................................................1
• Carrying case ......................................................................1
• Bracket key..........................................................................2
• Screw (M5x8).......................................................................4
• Owner’s Manual .............................................................1 set
• Remote Control....................................................................1
• Battery (AAA size) ...............................................................2

The main unit must be mounted within 35 degrees of the horizontal

plane, back to front.

Caution

Do not block the unit's fan or heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the unit and
may cause a fire.

1

Remove the Detachable Front Panel (refer to
page 6). Slide mounting sleeve from main unit (see
“Removal” on page 33).

Air ventilation hole

Less than 35°

Mounting Sleeve
(Included)

Dashboard

this unit

2

Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (
*

1

) already

attached to the vehicle's chassis.

For the screw marked “*

2

”, use an appropriate screw for the chosen

mounting location.

Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the CDA-9857. Connect all other
leads of the CDA-9857 according to details
described in the CONNECTlONS section.

3

Slide the CDA-9857 into the dashboard until it clicks.
This ensures that the unit is properly locked and will
not accidentally come out from the dashboard.
Install the detachable front panel.

Hex Nut (M5)

Screw

Bolt Stud

this unit

Chassis

Ground Lead

Metal
Mounting
Strap

*

2

*

1
