GENERAL is selected on the setup main menu in step 2.
Birthday Opening Message Setting (Birthday Set)
By inputting your birthday details, a message can be displayed on that
day. Turn the Rotary encoder to set “mm” (Month), then press
MODE. Turn the Rotary encoder again to set “dd” (Date), then press
MODE again.
Setting the Clock Display (Clock Mode)
You can select the clock display type, 12-hour or 24-hour, depending on
your preference.
Turning the Clock Display ON/OFF
When ON is set, the time always appears in the lower left of the display.
Playing MP3/WMA Data (Play Mode)
This product can playback CDs containing both CD and MP3/WMA
data. However, in some situations (some enhanced CDs), playback may
be difficult. For these special cases, you can select playback of a single
session only, containing the CD data. When a disc contains both CD or
the MP3/WMA data, playback starts from the CD data portion of the
disc.
• Perform this setting before inserting a disc. If a disc has already been
inserted, perform the setting after you remove the disc. (If you use an
MP3 changer, you have to change discs.)
Sound (Beep) Guide Function
This function will give audible feedback with varying tones depending
upon the button pressed.
Turning Mute Mode On/Off (INT Mute)
If a device having the interrupt feature is connected, audio will be
automatically muted whenever the interrupt signal is received from the
device.
Setting the AUX Mode (V-Link)
You can input TV/video sound by connecting an optional Ai-NET/RCA
Interface cable (KCA-121B) or Versatile Link Terminal (KCA-410C) to
this component.
You can change the AUX name display when AUX IN is set to ON.
Press MODE when AUX IN is set to ON, and select the AUX Name
mode by pressing
or , then press MODE.
After that, turn the Rotary encoder to select the desired AUX name.
If the KCA-410C is connected, it is possible to select two AUX names.
• Via KCA-410C, up to 2 external devices with RCA output can be
connected. In this case, press SOURCE/POWER to select AUX mode
and then press BAND to select your desired device.
Setting the External Digital Input
When an ALPINE Ai-NET compatible digital audio processor (PXA-H701)
and a DVD player (DVE-5207) not compatible with Ai-NET are connected,
set Digital AUX to ON to enjoy 5.1-channel surround sound.
• Press SOURCE/POWER, and select the D.AUX mode, and adjust
the volume, etc.
• Depending on the connected audio processor, DVD player sound
may continue to be output, even though the source is changed to
another one. If this occurs, set the DVD player's power to OFF.
Connecting to an External Amplifier
When an external amplifier is connected, sound quality can be improved
by stopping the power supply of the built-in amplifier.
• No sound is produced by the system when the power output is set to
OFF.
General Setting
mm/dd
AM (Before noon) 12:00 (12-hour) (Initial setting) /
00:00 (24-hour)
Clock ON (Initial Setting) / Clock OFF
CD-DA (Initial setting) / CDDA&MP3/WMA
CD-DA : Only the CD data in Session 1 can be
played back.
CDDA&MP3/WMA :Both CD data and MP3/WMA file tracks on a
mixed mode, multi-session disc can be played
back.
BEEP ON (Initial setting) / BEEP OFF
INT Mute ON (Initial setting) / INT Mute OFF
AUX IN ON / AUX IN OFF (Initial setting)
Digital AUX ON / Digital AUX OFF (Initial setting)
Power IC ON (Initial setting) / Power IC OFF
Power IC OFF : Use this mode when the front and rear pre-
amplifier of the unit are used to drive an
external amplifier connected to the speakers. In
this setting, the head unit's internal amplifier
has no output to drive speakers.
Power IC ON : The speakers are driven by the built-in amplifier.

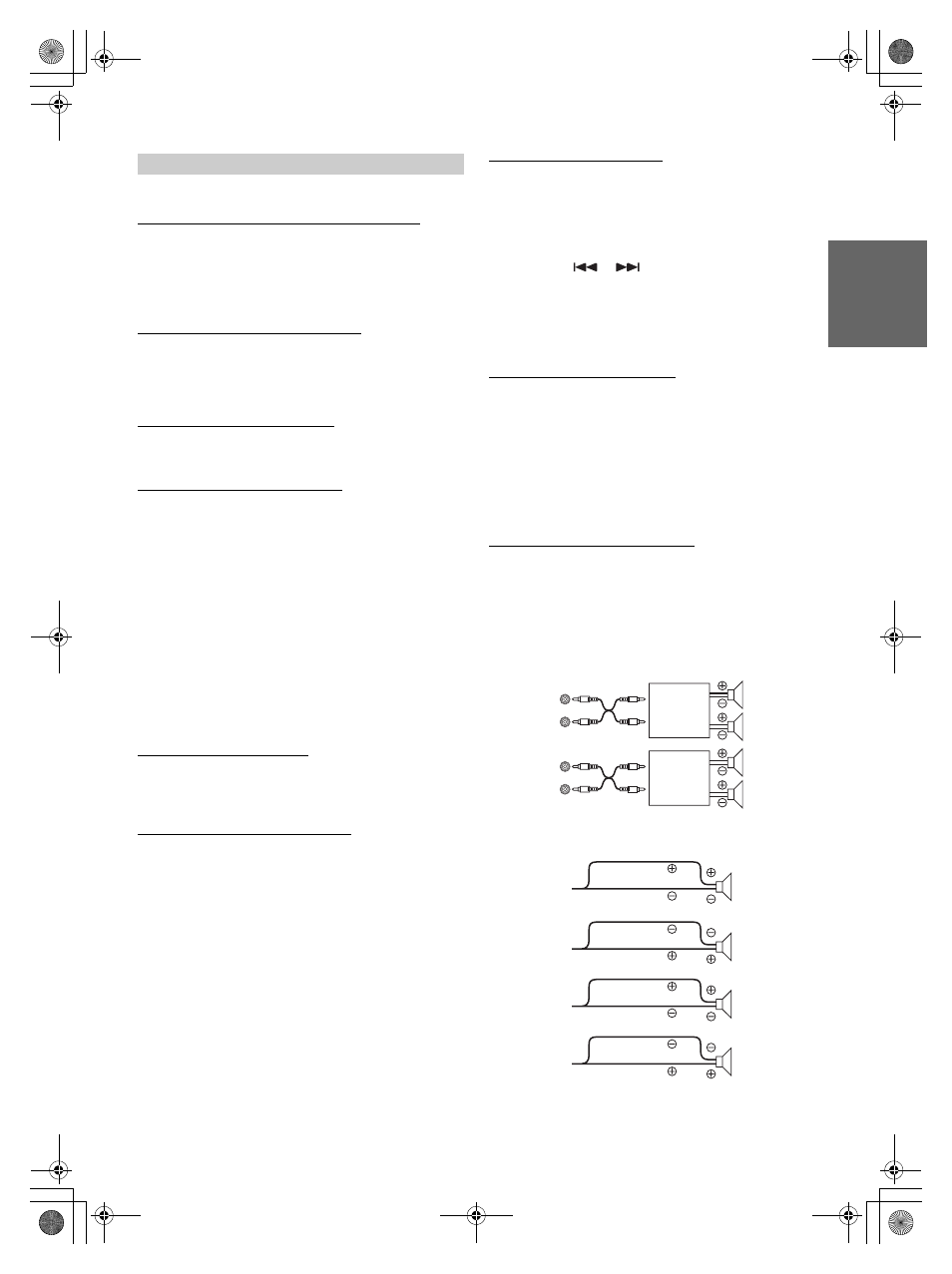

Amplifier
Front
left
Front
right
Amplifier
Rear
left
Rear
right
Speakers
SPEAKER
RIGHT FRONT
Front
right
SPEAKER
RIGHT REAR
Rear
right
SPEAKER
LEFT REAR
Rear
left
SPEAKER
LEFT FRONT
Front
left
