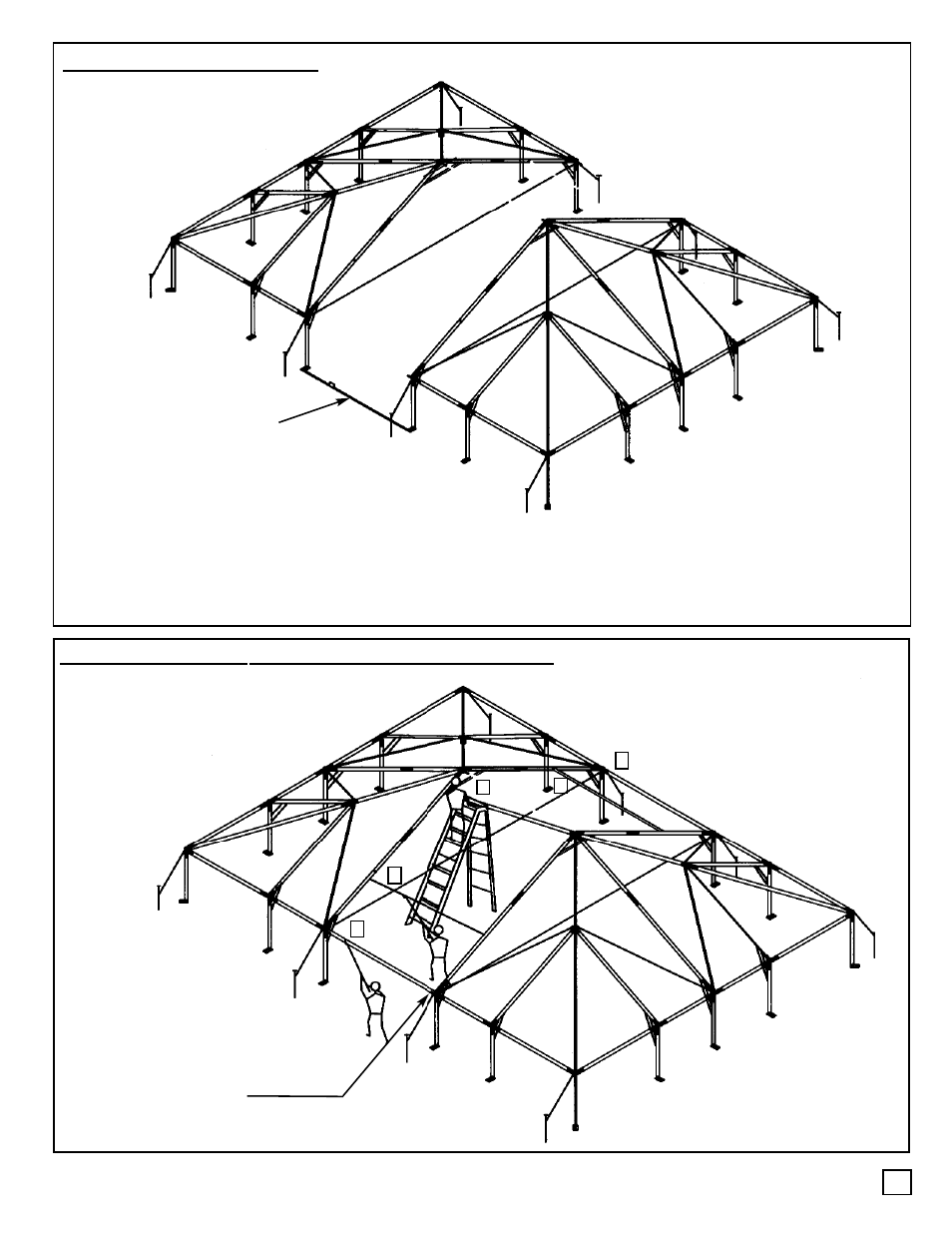

INSTALLING MID BAY PURLINS AND EAVE/RIDGE BARS
FOR MOST EASE, INSTALL
IN THE ORDER SHOWN
FOR PURLINS & EAVE/RIDGE BARS,
INSTALL HOOK END FIRST, THEN THE 90
DEGREE OPPOSITE END.
UNITS WITH (1) MIDDLE BAY
FABRIC NOT SHOWN
ADJUST TO DESIRED SPACING
AND FIT END CONNECTORS OVER
GUIDE PEGS ON BASEPLATES.
NOTE: FOR FREQUENT INSTALLATIONS, THE PURCHASE
OF A 2ND GUIDE BAR COULD BE HELPFUL.
THE EXTENDED RECTANGULAR UNIT ALWAYS INCLUDES (2) HIP END MODULES FACING
EACH OTHER WITH THE DESIRED NUMBER OF 10’, 15’ OR 20’ MIDDLE BAYS SEPARATING
THEM. NOTE: UNLIKE THE RIGID EAVE AND LOWER RAFTER CONNECTIONS OF THE
END MODULE, MIDDLE BAYS USE DROP-IN PURLINS AND EAVE/RIDGE BARS.
NOTE: ONLY FIXED-BASE
UPRIGHTS ARE TO BE USED
IN END MODULES.
(2) END MODULES FACING
EACH OTHER.
1
2
3
13-T
13-B
FABRIC NOT SHOWN
FABRIC NOT SHOWN
FABRIC NOT SHOWN
5
4
CONNECTION SEQUENCE
SHOWN MAY CHANGE WITH
THE TERRAIN.
