12

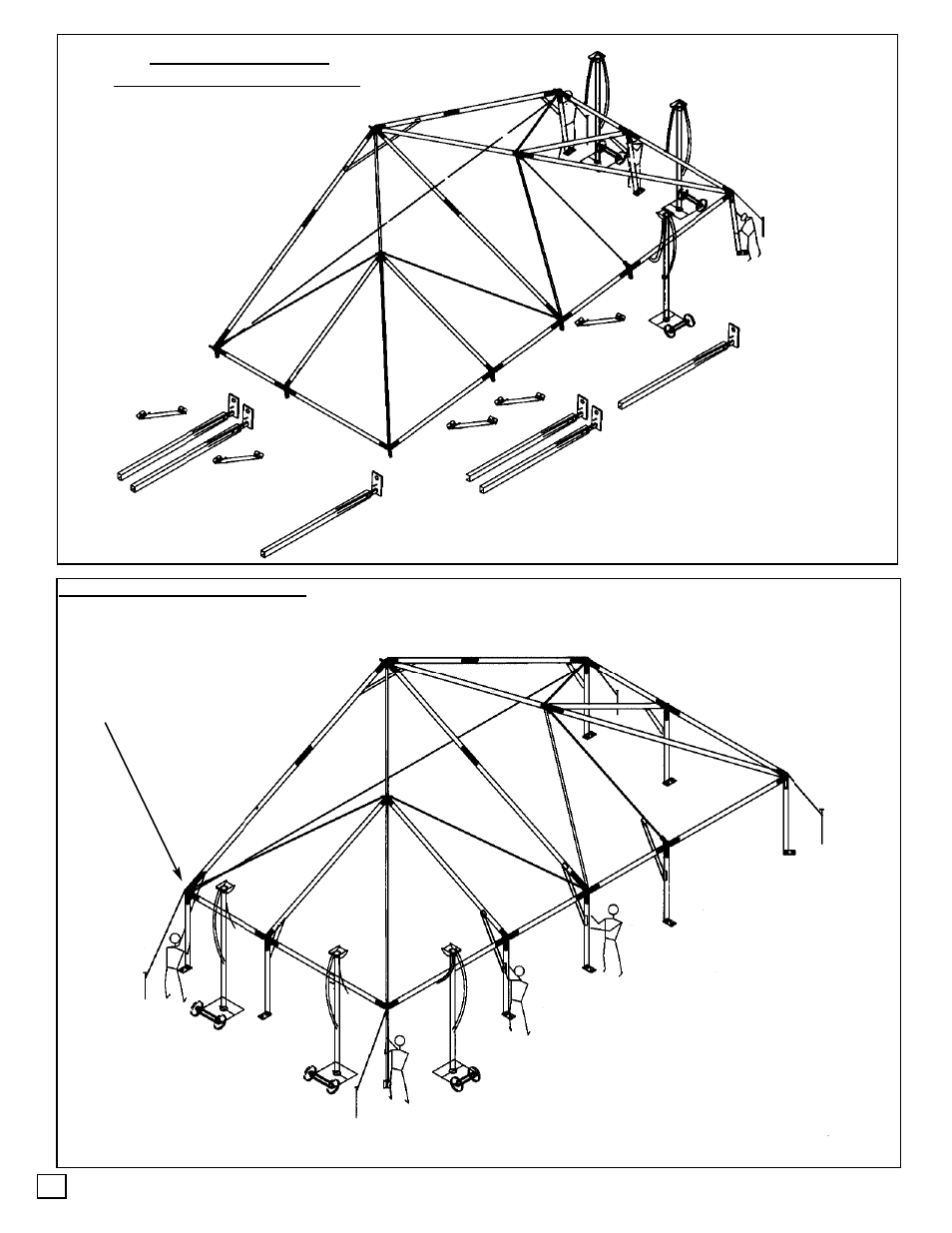

HIP END MODULES
FOR RECTANGULAR UNITS
THE RECTANGULAR UNIT IS SIMPLY (2) HIP
ENDS FACING EACH OTHER AND SEPARATED
BY PARALLEL-BEAMED MIDDLE BAYS.
NOTE: ONLY FIXED-BASE UPRIGHTS
ARE TO BE USED IN END MODULES.
FOR RECTANGULAR UNITS, FIRST CONSTRUCT
HIP ENDS, INSTALLING FABRIC LOOSELY AND
RAISING EACH SIDE TO INSTALL UPRIGHTS AND
BRACES, JUST AS IN THE SQUARE TENT IN
PRECEDING PAGES.
FABRIC NOT SHOWN
COMPLETING THE HIP END
LIFT SECOND (OPPOSITE) SIDE OF THE
HIP END AND PIN UPRIGHTS INTO POSI-
TION. INSTALL UPRIGHT BRACES AT
INTERMEDIATE POSITIONS. THE CROSS-
CABLE REMAINS AS A PERMANENT PART
OF THE 50’ NAVI-TRAC UNIT.
FABRIC NOT SHOWN
THE HIP END FABRIC IS INSTALLED THE SAME AS
ON SQUARE UNITS (SEE ILLUSTRATION #9-B).
NOTE: BEFORE INSTALLING FABRIC, BE SURE
ALL PINS AND BOLTS ARE PROPERLY SEATED
AND SECURED WITH LANYARD PINS AS NEEDED.
12-T
12-B
LIFT FIRST SIDE AND INSTALL UPRIGHTS (WITH
UPRIGHT BRACES AT INTERMEDIATE LOCATIONS).
