Quick Start Guides

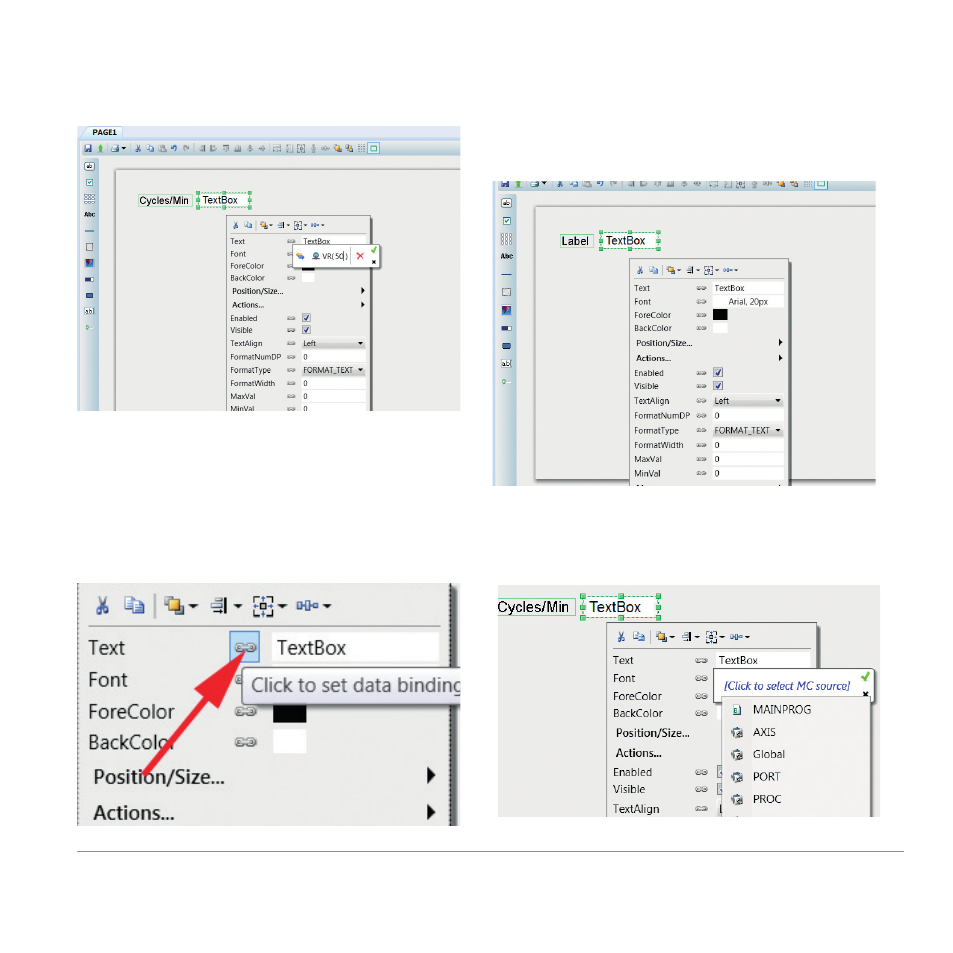

The properties of each component can be edited
by a menu brought up using a right mouse click:
LINKING PROPERTIES TO
CONTROLLER DATA
The properties of each component can be fixed
or linked to controller data. To link a component
property to controller data click on the small
“chain” bitmap alongside each property.
The menu then lets you choose what type of
controller data to link to. This can be a program
variable, for example in the program
“MAINPROG” below, or VR, or other controller
data types.
In this example we link the textbox “text”
property to VR(50) in the controller. Click on the
green tick to complete the link and the chain like
“link” icon will turn blue.
