Quick Start Guides
INSTALLATION
1 The Motion Coordinator default IP address is
192.168.0.250
2 The UNIPLAY panel default IP address is
192.168.0.251
3 The HMI panel must be aware of the Motion
Coordinator IP address. If this is not at default

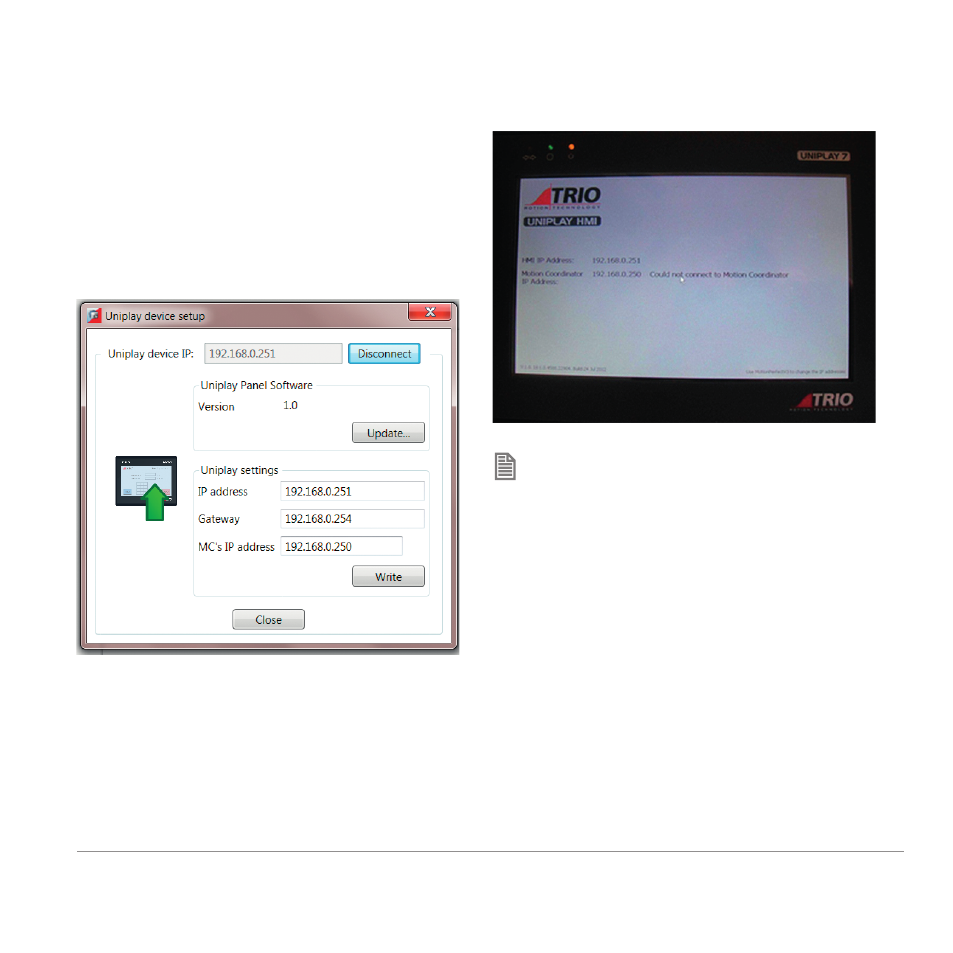

use MPv3 Tools->Setup UNIPLAY HMI device
screen to store the Motion Coordinator IP
address into the panel.
4. Whilst attempting to connect to the Motion
Coordinator the panel displays a page:
If no HMI page exists, the UNIPLAY panel
will display”invalid HMI page”.
