INTRODUCTION
UNIPLAY HMI is a whole new way of creating and
storing HMI screens. HMI screens can be created
and linked to programs directly inside MPv3. The
HMI screens are stored with and loaded with the
machine project on the Motion Coordinator.
REQUIREMENTS
The following versions are required:
1 Trio Motion Technology Motion Perfect v3
version greater than 3.1.0.5544.
2 UNIPLAY 7 or UNIPLAY 10 HMI panel.
3 MC4XX Motion Coordinator with system
software 2.0199 or higher.
USING UNIPLAY
UNIPLAY HMI’s work with the Trio 4xx Motion Coordinator range. Motion Perfect 3 is used to create
operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime.
Trio recommend using a USB powered switch

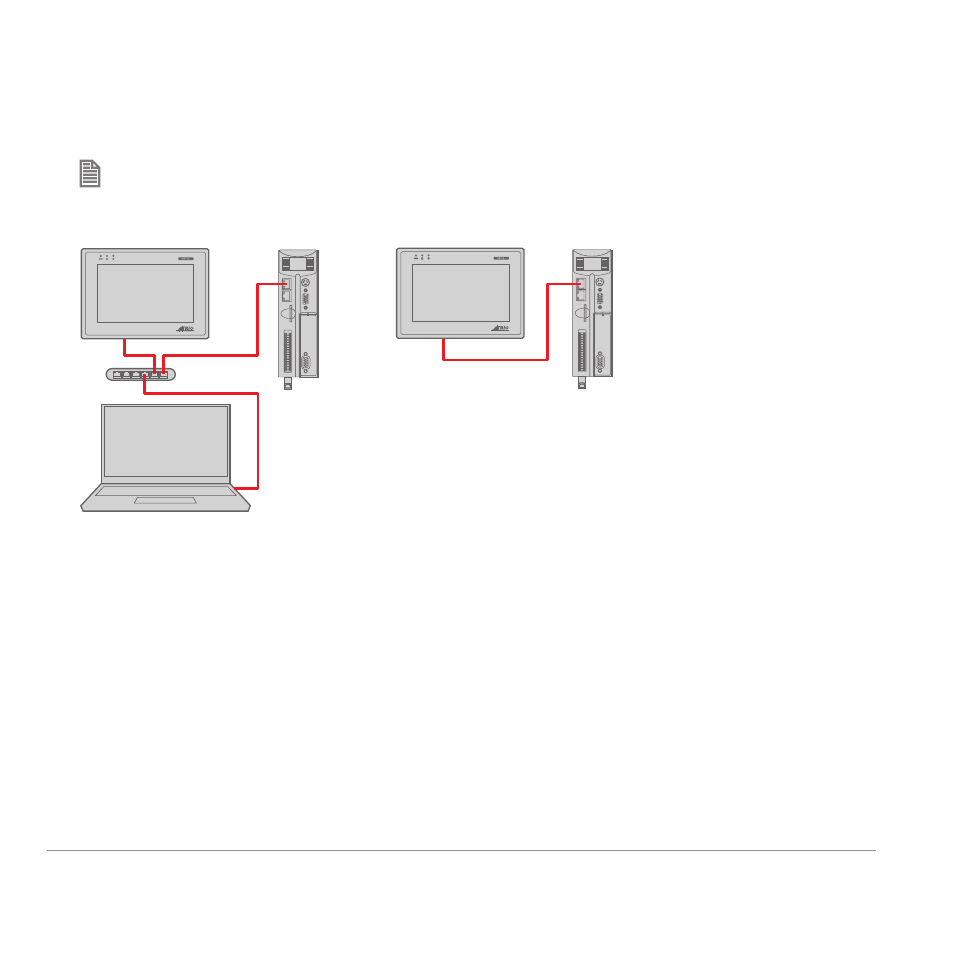

CONFIGURATION RUNNING
To allow a laptop PC
to be connected to the
Motion Coordinator at the
same time as the HMI, an
Ethernet switch / hub is
required.
