Trio Motion Technology Uniplay HMI - Manual (Page 12)

270.97mm
212.97mm
201mm
259mm
50mm
R2mm

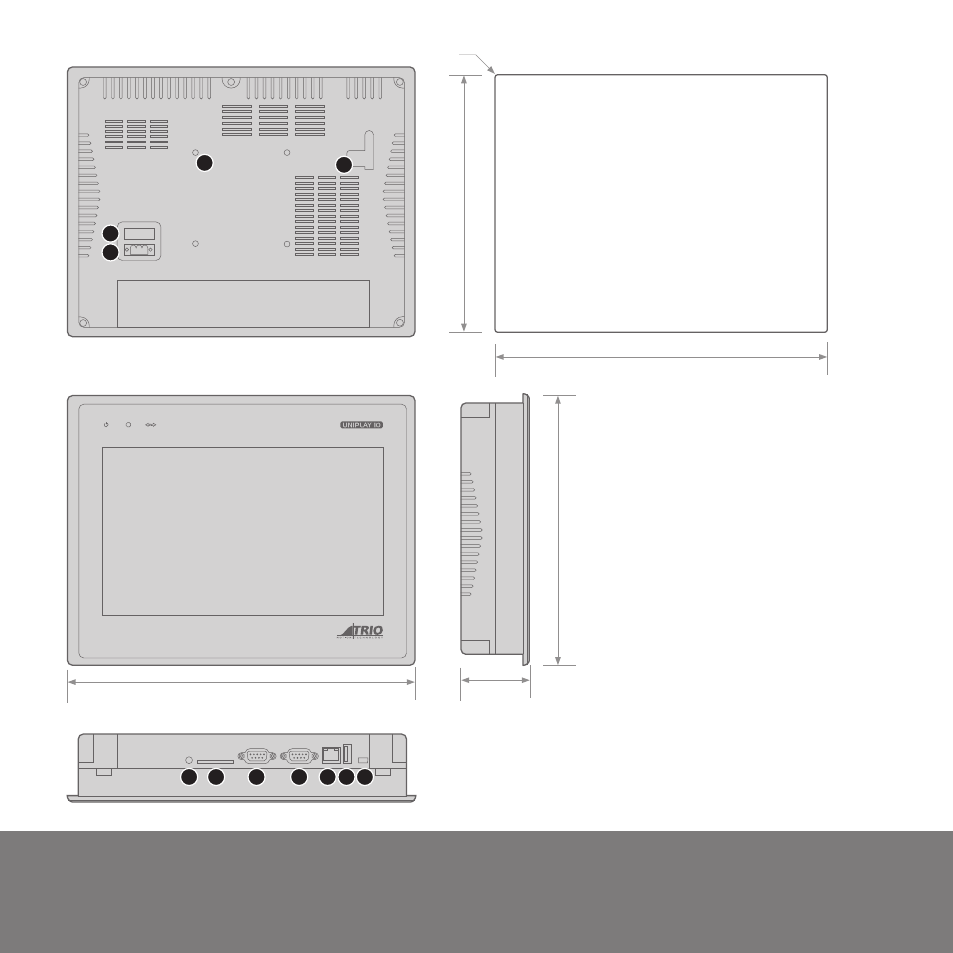

CUTOUT DIMENSIONS
A
C
B
D
E G F H I K J
UNIPLAY 10
