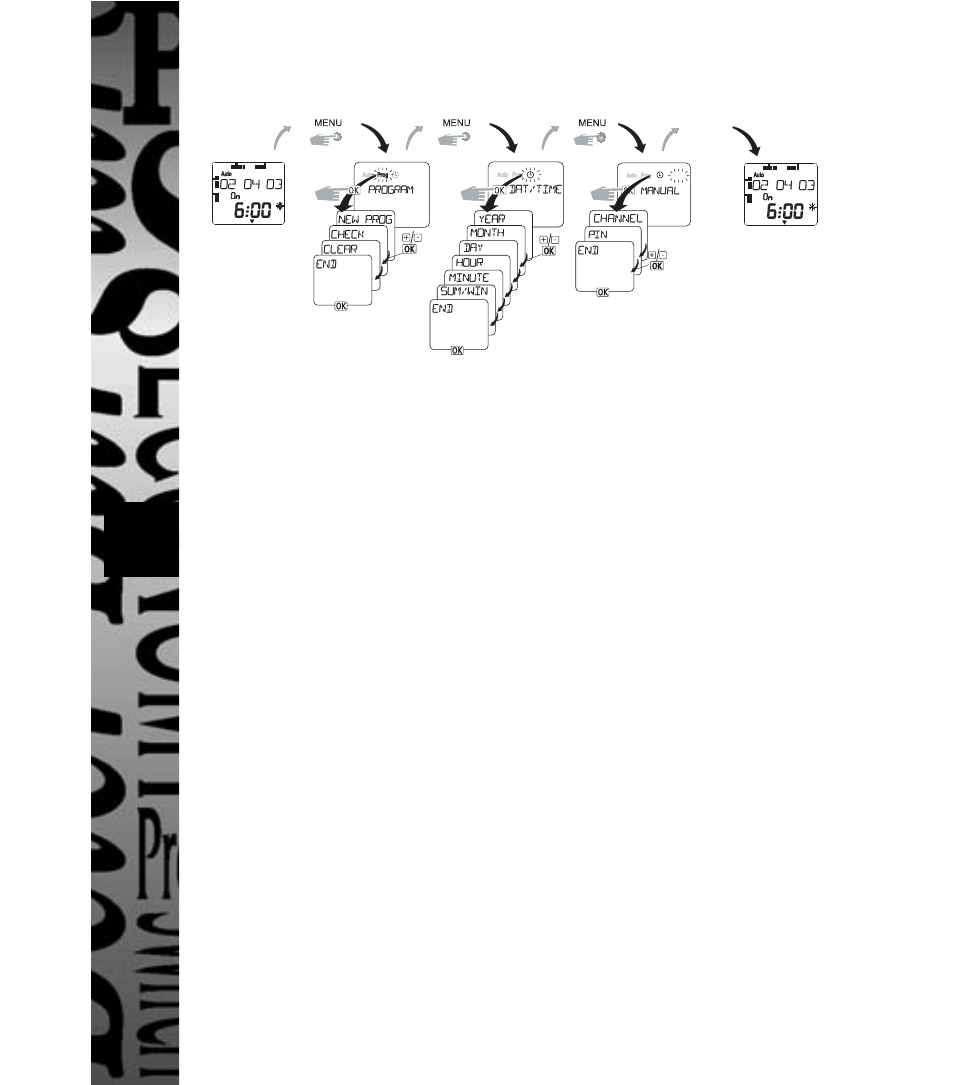

Specifications
Ma n Ma n Ma n
Operating voltage VCC 3.0VDC ±10%
NAK 3.0VDC ±10%
Current consumption IVCC During operating processes appr. 700μA
Automatic return to Auto mode after appr. 90 secs
Auto-Mode appr. 25μA
Additionally per actuated channel
appr. 30μA
Additionally with NAK=1 appr. 350μA
INAK appr. 50μA
Time basis Quartz 32768 Hz
Accuracy < 1 Sec. per day at 20°C
Shortest switching time 1 minute
Switching precision
accurate to the second
Language group D - F - GB - I - E - NL
Preset summer/winter time EU
Configuration 1F 7D 40 2F
Operating temperature -10°C ... 65°C
Switching output C1,C2 Open collector Off max. 55VDC at 0mA per channel
On 0.2VDC at max. 4mA per channel
ICmax 4mA
Pmax 160mW at 20°C
Connection 5-pole flexible lead, length appr. 125mm, without plug
Backlighting: VLED+; VLED- IF appr. 14mA (max. 20mA at 25°C)
UF appr. 8V
(e.g. using series resistor)
Connection 2-pole flexible lead, length appr. 90mm, without plug
Switching mat Colour blue PANTONE 286C, Imprint black RAL 7035
