1
TR671/TR672TOP 24Hr/7 Day 1/2
Channel Digital ‘TOP’ Module
(without Power Supply)
Please read the instructions before using the product and retain for
future use.
The TR671/TR672TOP are electronic timer modules for OEM
applications featuring ‘Text Oriented Programming’. Requires a 3V
DC power supply.
Please refer to www.theben.de/downloads/manuals/TERMINA/
TR-671-672-top_GB.pdf for further information.

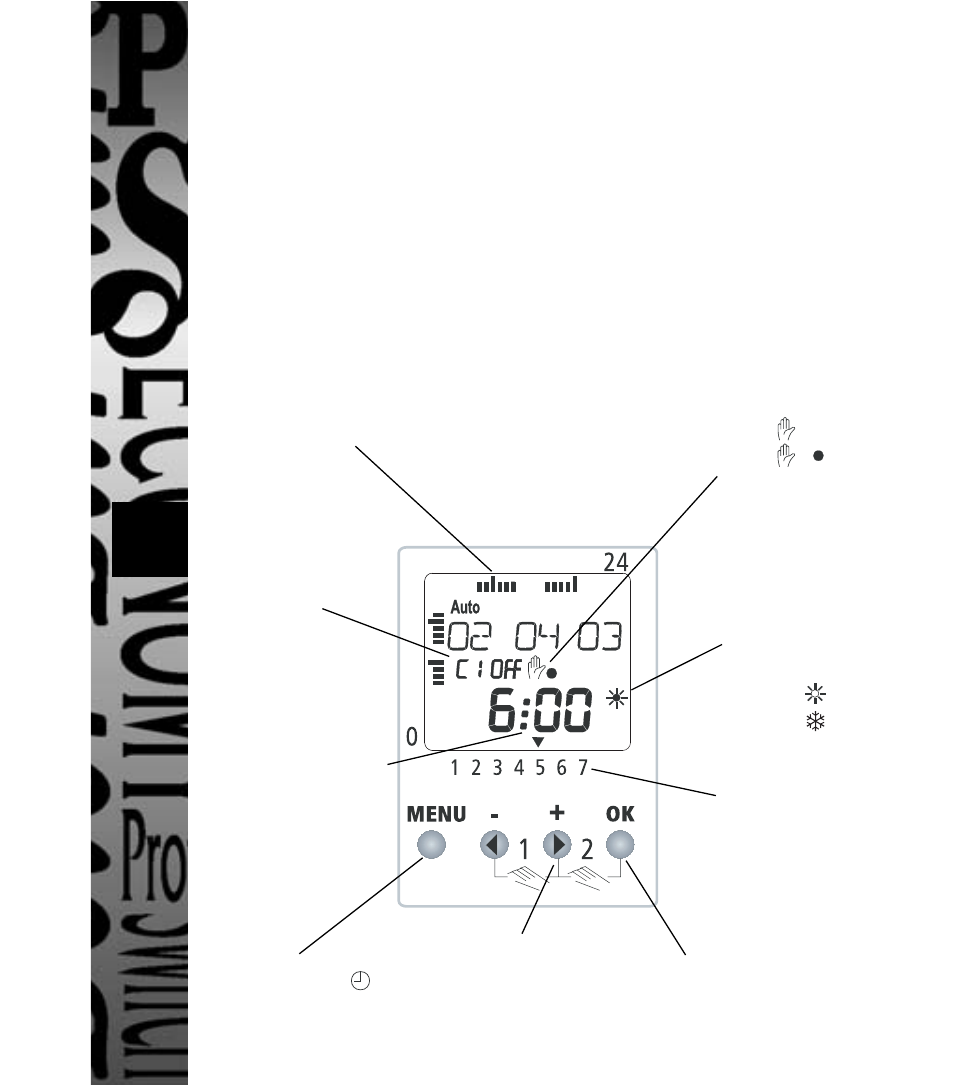

Overview per day of
the programmed
switching times
5
= Friday
Display of special functions:
Hand ON/OFF
Permanent ON/OFF
Displayed only
whensummer/
winter time
changeover
is activated
Summer time
Winter time
Current days
of the week
1 = Monday,
2 = Tuesday, ...
The decision Yes
confirms the
selection or
programming
Decision No means
continue
Channel statuses
C1 or C2 are
displayed
alternatively
ON/OFF
Service voltage OK:
Two flashing dots
Power reserve mode:
Three flashing dots
Selection
e.g.: Auto, Prog, ,
Man, Abort
