GRN4-605 Chapter 2: Functional Description 23 of 93

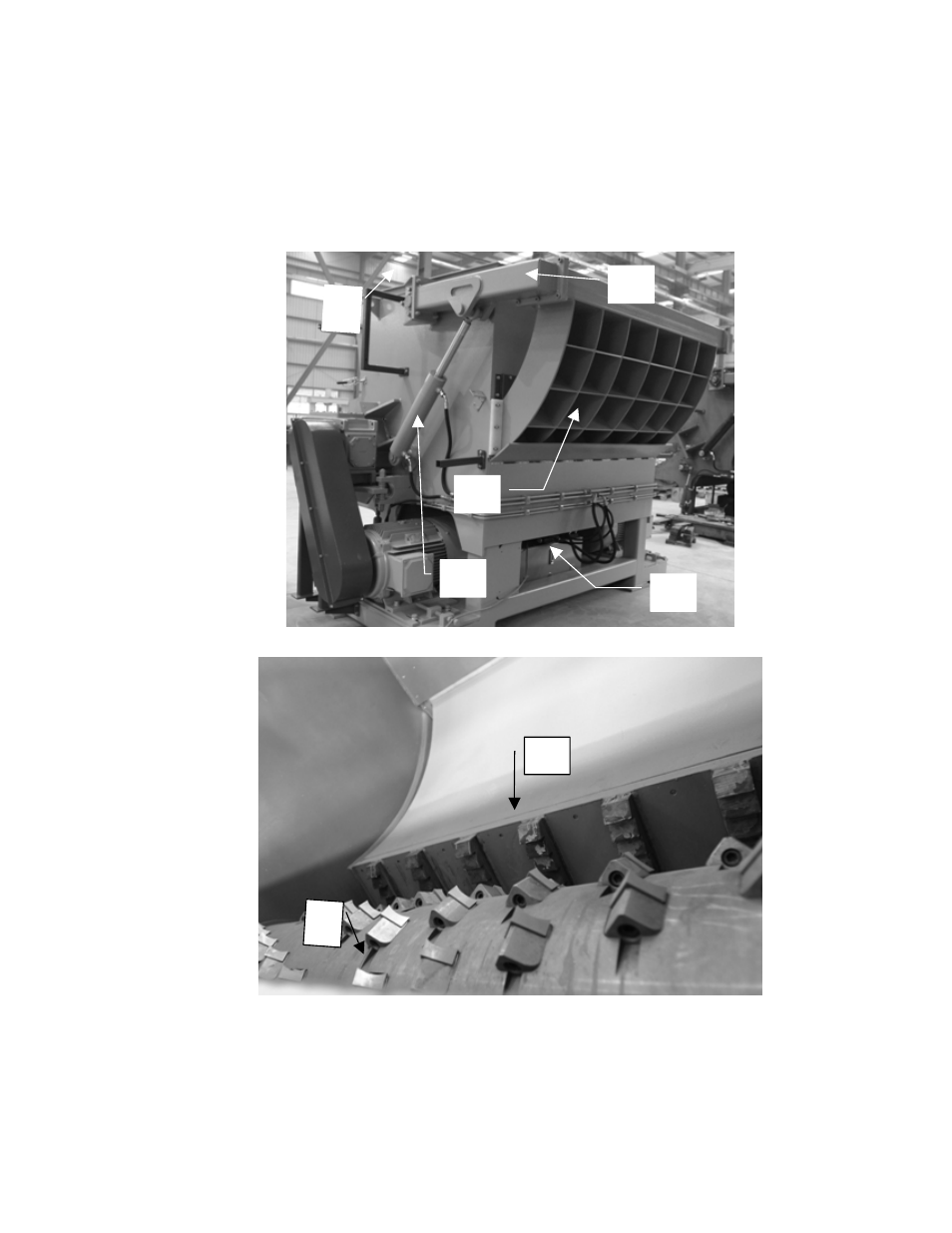

Hydraulic Ram
The hydraulic ram is fixed on two arms arranged on flange bearings. Two heavy-duty
hydraulic cylinders move the ram back and forth. The ram moves automatically after
switching ON the hydraulic system and the shredder when the machine is operated in
automatic mode.
NOTE: The ram can be moved by hand on the control panel when run in manual mode.
3
2
4
1
5
(1) Hydraulic cylinder
(2) Flange bearing
(3) Ram arm
(4) Ram
(5) Hydraulic unit
2
1
(1) Serrated ram front
plate
(2) Rotor
1
2
