GRN4-610 Chapter 2: Functional Description 17 of 73

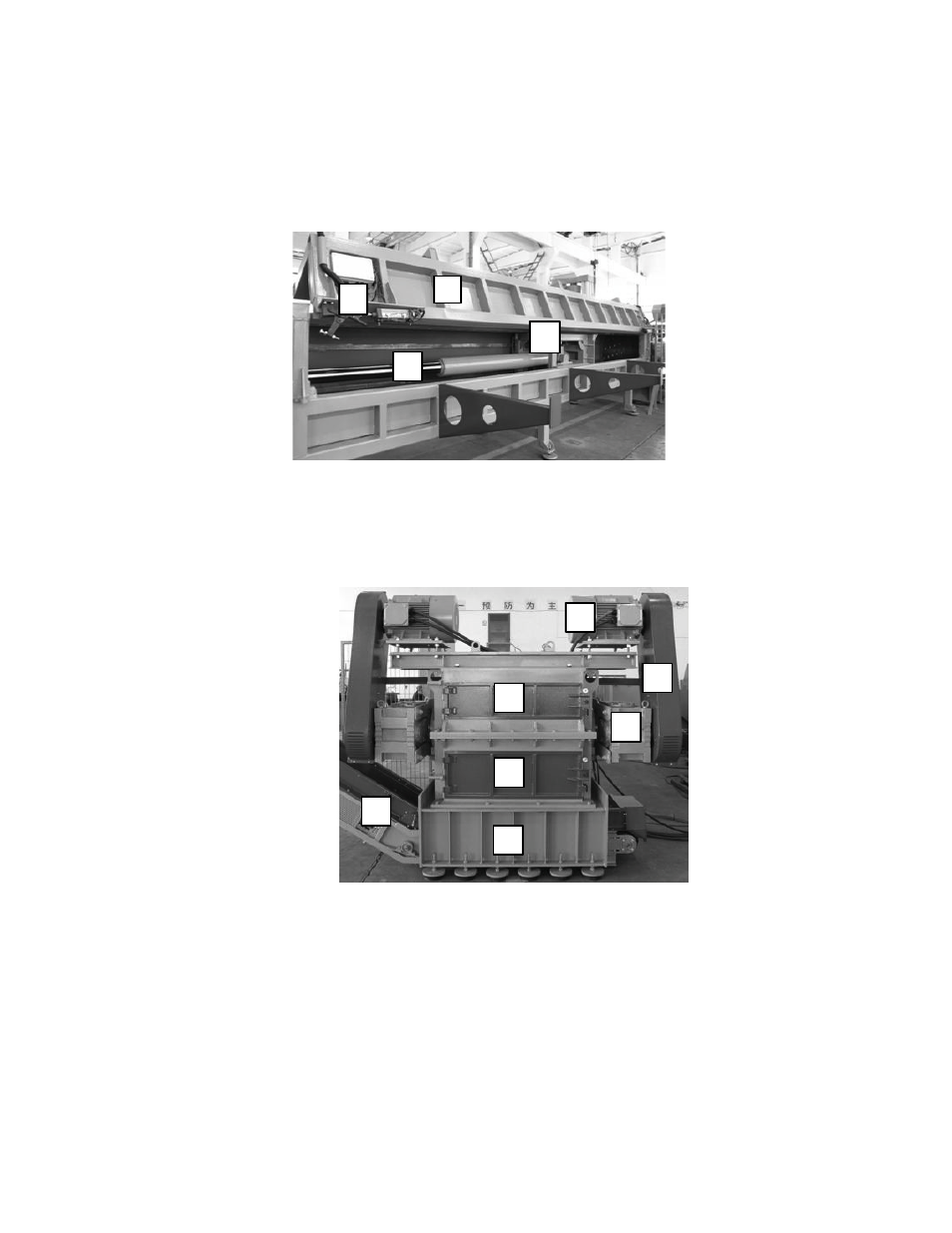

Illustration:
(1) Stage cylinder
(2) Cover
(3) Lock
(4) Pusher
Optional (not included in standard machine) the feeding trough can
be equipped with a hydraulic feeding device.
Illustration:
(1) Base frame
(2) Lower housing flap
(3) Upper housing flap
(4)Gear box
(5) Drive motor
(6) V-belt protection
(7) Discharge conveyor
The machine housing is mounted on the base frame and the drive
motor and the gear box are mounted on the machine housing. This
design makes the machine compact.
3
2
1
4
1
2
7
3
4
6
5
