Chapter 4: Operation 40 of 60
4-4 Common Screens

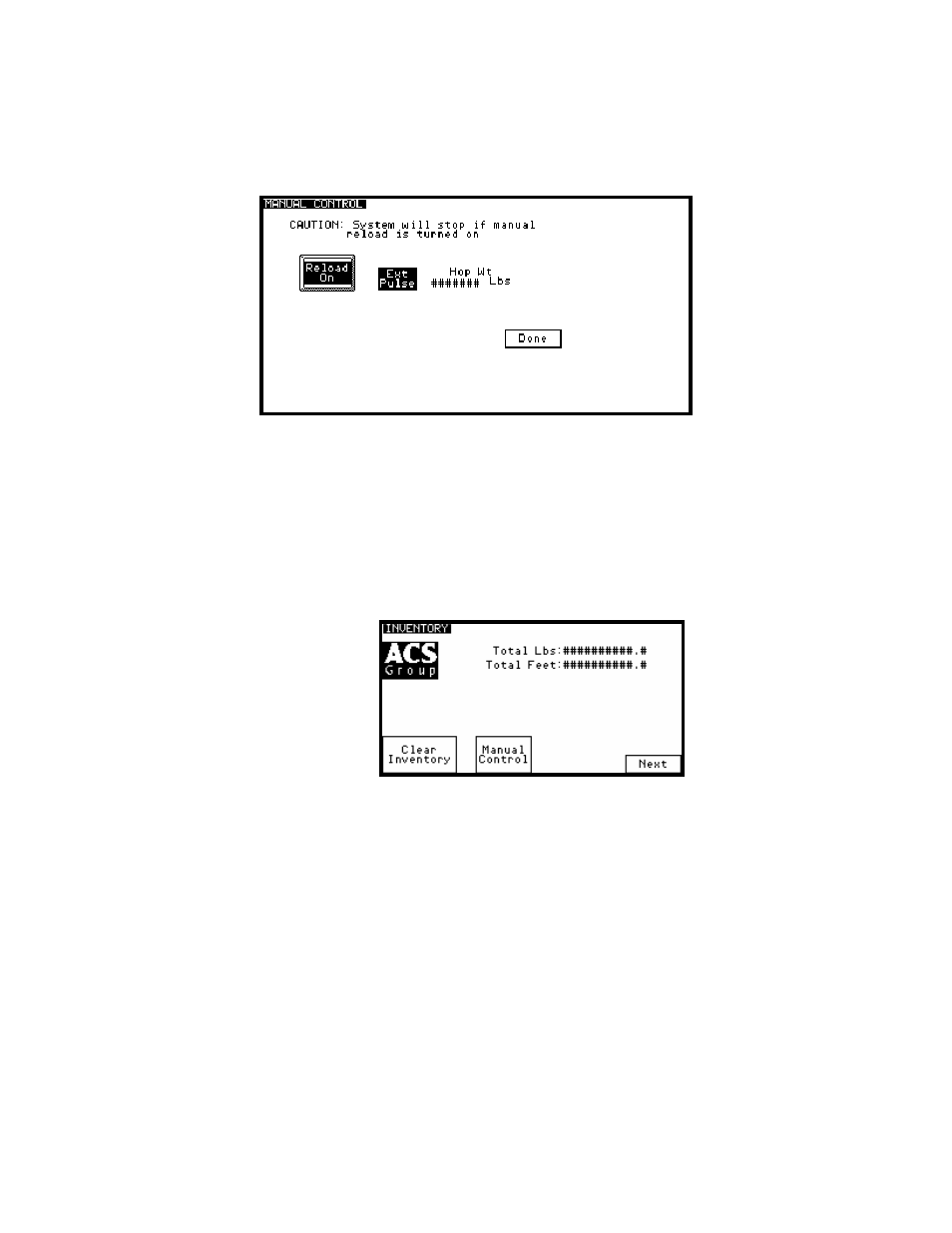

Figure 34: Typical Manual Control Operator Screen
While the rate monitor system is in operation, there are a couple of displays available to the
operator. These displays are selected simply by pressing the “NEXT” key when the unit is
running. The default display shown when the rate monitor is in run mode is the Recipe
Screen.
.
Figure 35: Typical Inventory Display Operator Screen
