These screens are used to graphically track all dryer temperatures:
Process inlet (shown above)
Process exit
Regen heater
Regen exit
Dew point
4-6 Program Upgrade Procedures
The DryPro PLC and touch screen use either a EEPROM module or compact flash memory card
for program upgrades. Occasionally, a program upgrade will become available from ACS for the
DryPro PLC, touch screen or both. Follow the instructions in this document to upgrade the
specific component.
PLC Program Upgrade
Dry-Pro PLC field upgrade instructions
- Record current dryer settings.
- Turn off power.

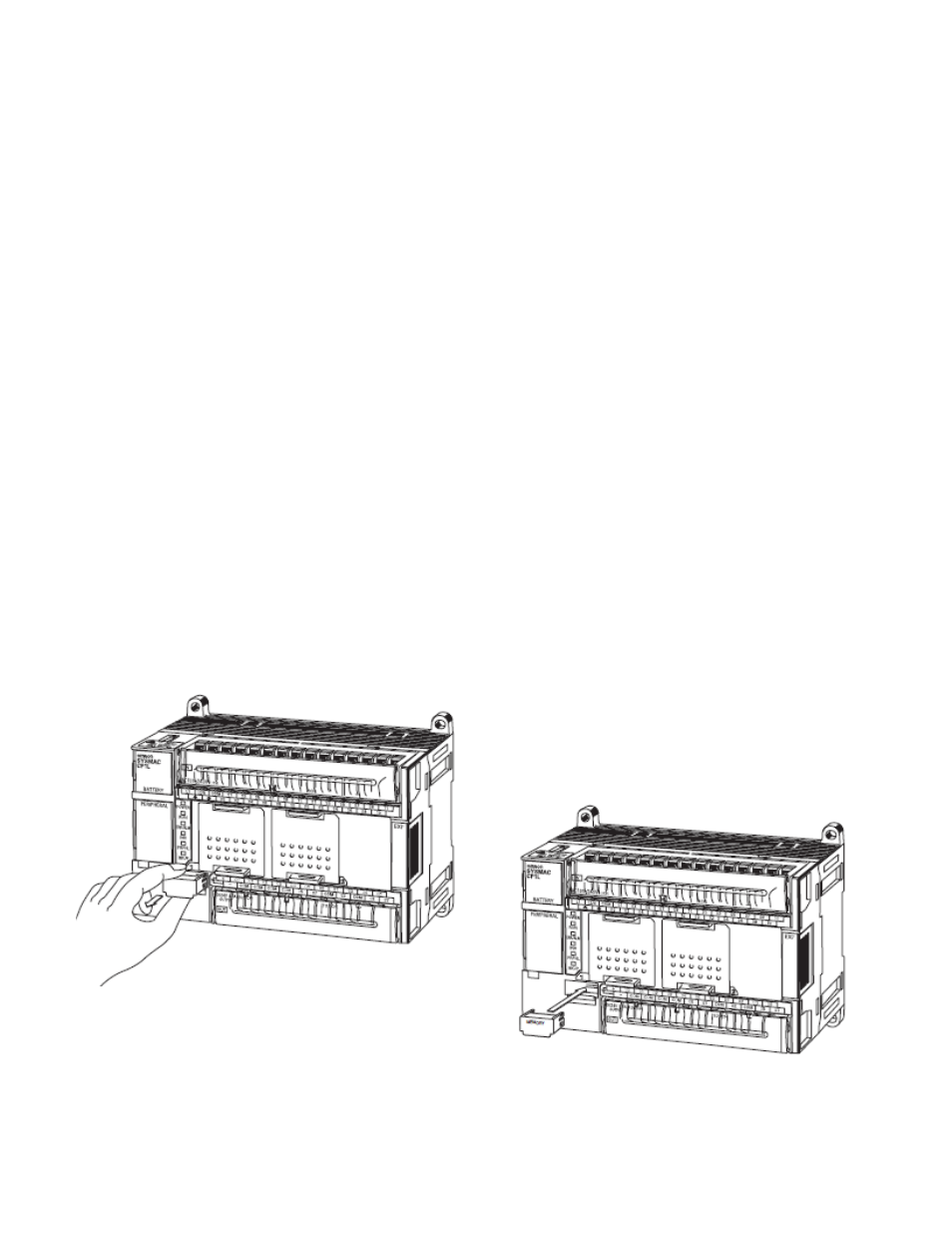

- Remove memory cassette cover.
- Insert Memory cassette.
