36
C
ONTINUITY AND
W
IRING
D
IAGRAMS

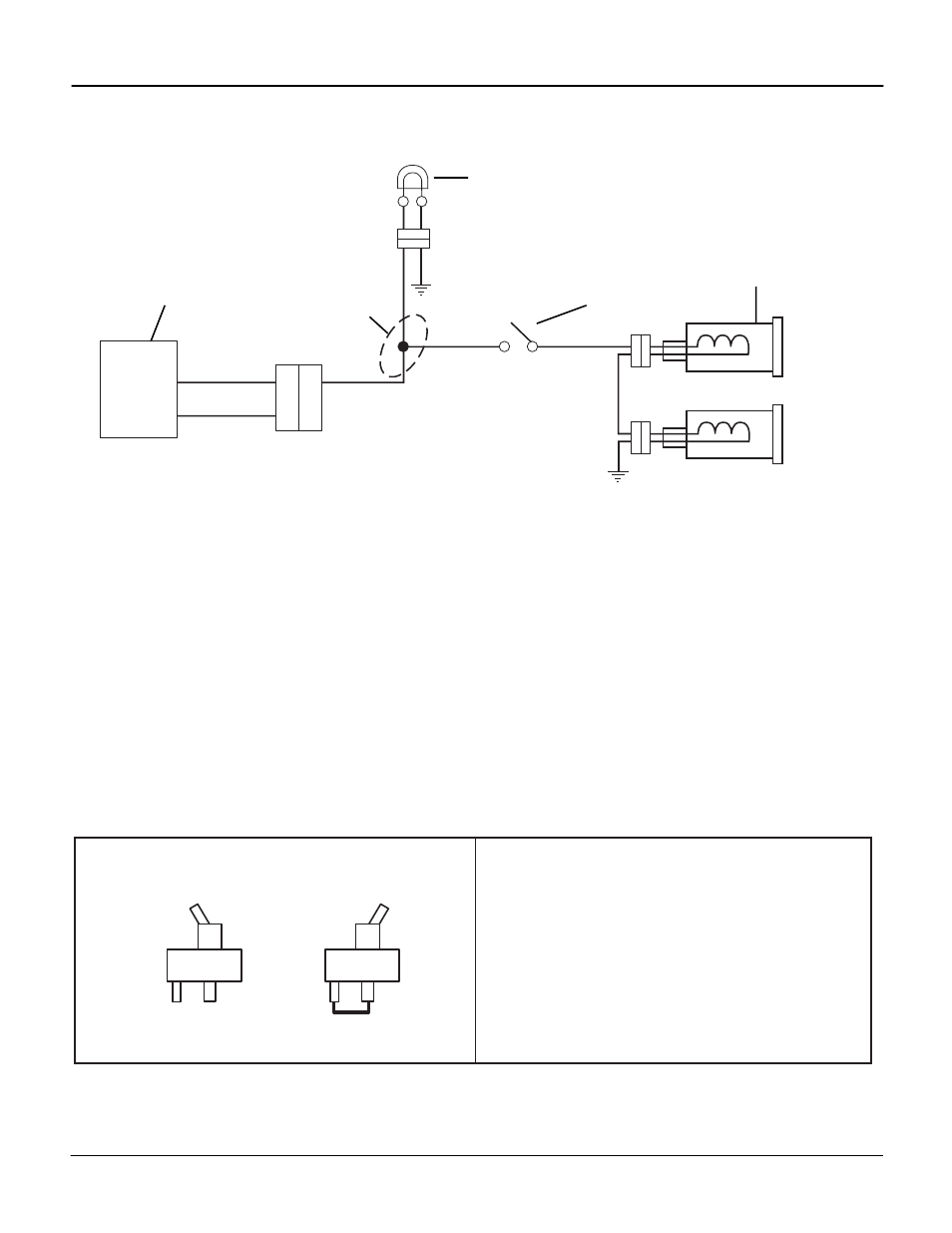

Model 924119, 120, 504
Item Part No. Qty. Description
1 08262200 1 Engine, 10HP L Head Tecumseh - 120 Volt (119)
08260700 1 Engine, 10HP OHV Tecumseh- 120 Volt (120)
08261200 1 Engine, 9HP Tecumseh OHV (504)
2 02485900 1 Headlight
3 07532900 2 Handle Hand Warmer with Terminal
4 02488800 1 Wire Harness-Hand Warmers and Light (119, 120, 504)
5 02485700 1 Switch, Hand Warmer
1
D.C. CHARGE
A.C. LIGHTING
HEAD LIGHT
BLACK
RED
2
YELLOW YELLOW
BROWN/ORANGE
1 2
YELLO W
ENGINE
BLACK
1 1
2 2
1 1
2 2
BR
O
WN/ORANGE
HAND WARMER
SWITCH
HAND
WARMERS
LEFT
RIGHT
PS0830
1
2
3
4
5
The diagrams below show the various states of connection for electrical components.
The solid lines on switches show continuity.
NOTE: All switches are viewed from the rear.
Hand Warmer Switch
(02485700)
HAND WARMER
OFF
HAND WARMER
ON
PS0820
