Ariens SNO-THRO 924119 - 1028 - Manual (Page 33)

33

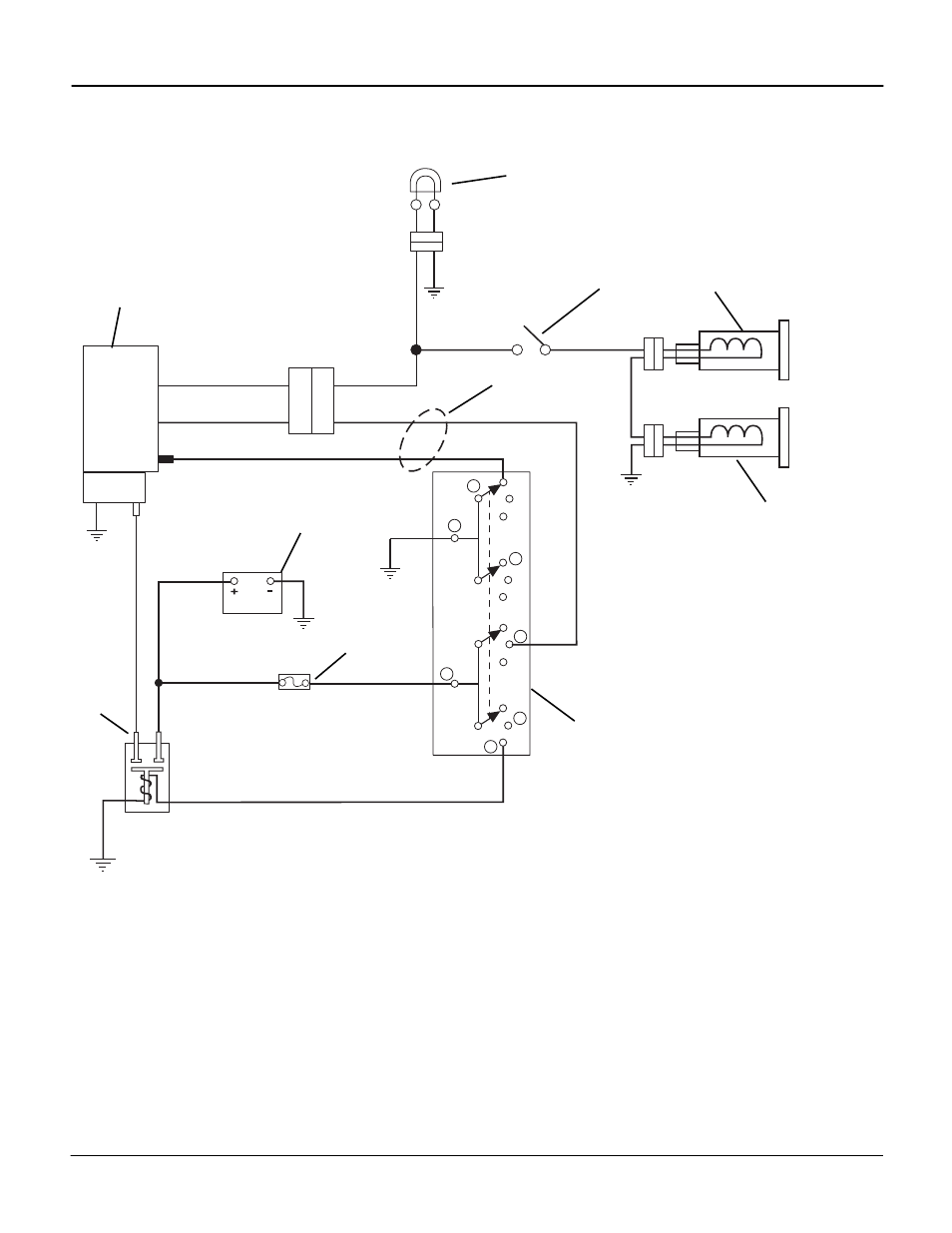

W
IRING
D
IAGRAM
Model 924333, 334
Item Part No. Qty. Description
1 08260800 AR Engine, 10HP OHV Tecumseh- 12 Volt
08261000 AR Engine, 11HP OHV Tecumseh- 12 Volt
2 02485900 AR Headlight
3 07532900 2 Grips, Hot
4 AR Battery Recommend 340 to 350 CCA at 0° F. Size U1R or U1L
5 03679000 1 Solenoid
6 02488900 1 Wire Harness 12 Volt
7 52707300 1 Switch Assembly, Key
8 00524700 1 15 AMP Fuse
9 02485700 1 Switch, Hand Warmer
ENGINE
BLACK
B ROWN
KEY
SWITCH
MAGNETO
RED
D.C. CHARGE
A.C. LIGHTING
BATTERY
RED
STARTER
BLACK
RED
RED
YELLOW
PURPLE
WHITE / BLACK
M
G
B
A
A
S
R
RE D
1
HEAD LIGHT
BLACK
2
YELLOW
BROWN/ORANGE
1 2
YELLOW
BLACK
1 1
2 2
1 1
2 2
HAND
WARMERS
BLACK
STARTER
SOLENOID
FUSE
15 AMP
A B
COIL 2 COIL 1
BR
O
WN/ORANGE
HAND WARMER
SWITCH
LEFT
RIGHT
PS0672
1
2
3
3
5
6
7
8
4
9
