Ariens SNO-THRO 924119 - 1028 - Manual (Page 17)

17
H

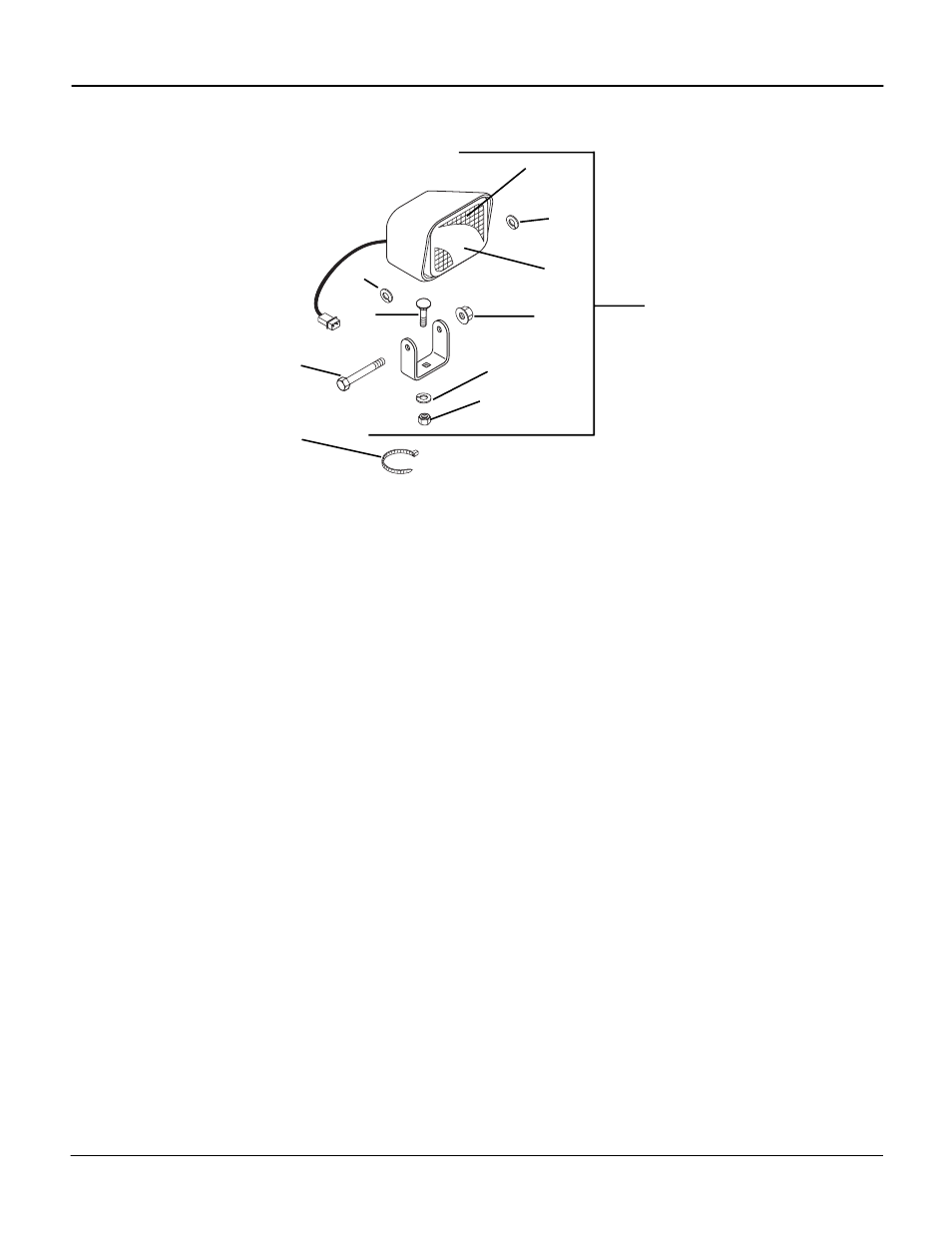

EADLIGHT
Model 924119, 120, 333, 334, 502, 503, 504
tem Part No. Qty. Description
1 02485900 AR Headlight (Contains 2-9)
2 06307200 2 Washer-Lock-External .313 x .030
3 06216100 1 Bolt-Round Head Square Neck .312-18 x 1.00
4 05952600 1 Bolt-Hex .31-18 x 2.50 Grade 2
5 06529200 1 Nut-Hex .312-18
6 02464900 1 Lens
7 02465000 1 Bulb
8 06530400 1 Nut-Flange .312-18
9 06307400 1 Washer-Lock .312
10 07517300 2 Cable Tie
PS0422
1
2
3
4
2
5
6
7
8
9
10
