Ariens SNO-THRO 924119 - 1028 - Manual (Page 21)

21

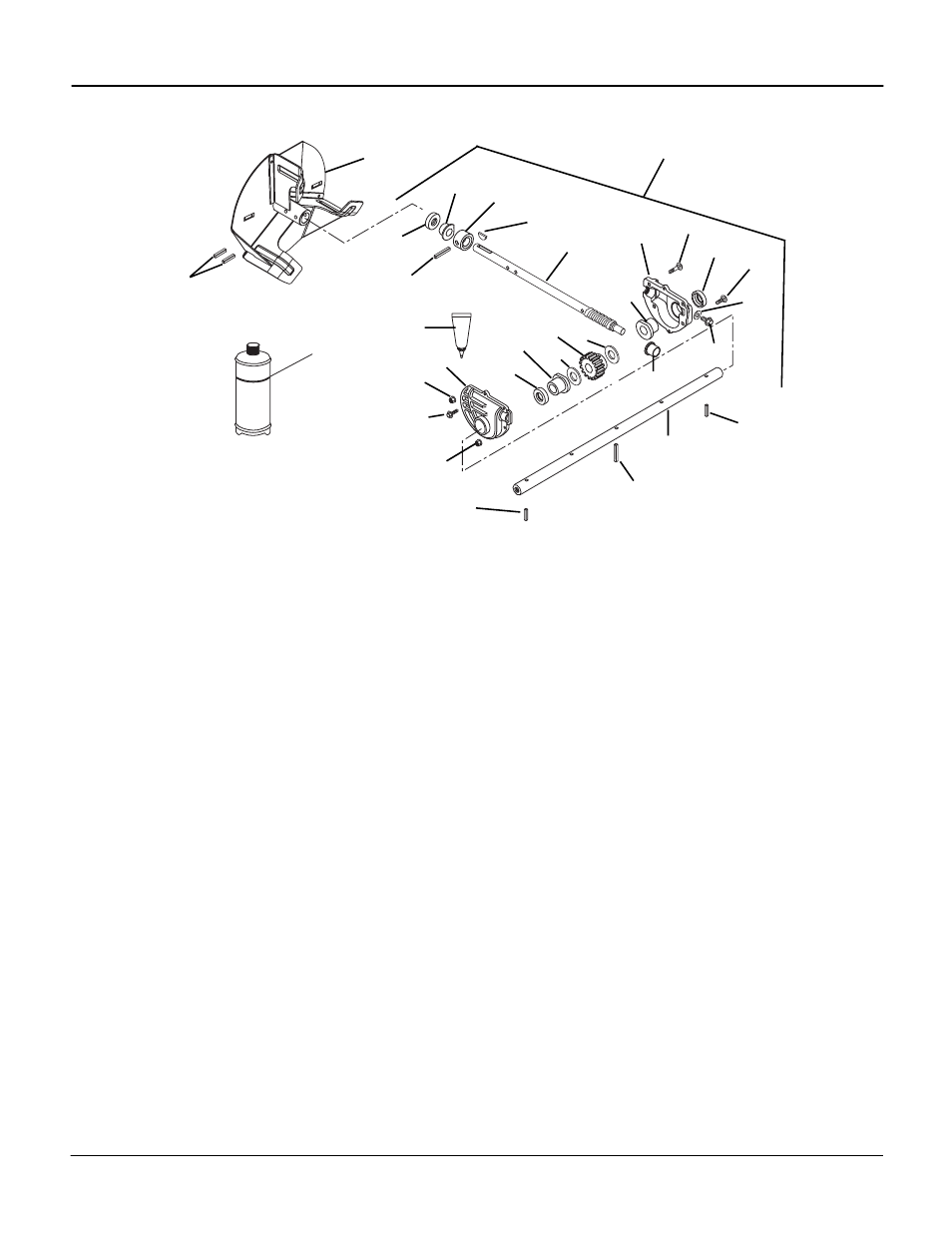

G
EAR
C
ASE
-A
LUMINUM
Model 924119
Item Part No. Qty. Description
1 05803700 2 Pin-Roll .250 x 1.75
2 02477251 1 Impeller-.75 I.D.x 12" O.D.
3 05618900 1 Seal, Oil .750 x 1.375 x .312
4 05511200 1 Bushing-Flange .75 x 1.00 x .75 x 1.25
5 03210300 1 Thrust Collar
6 05804500 1 Pin-Groove .188 x 1.25
7 06600100 1 Key-Woodruff .188 x .875 x .38
8 52413400 AR Case, Gear-Large Bore-28" (Contains Items 3-6, 9-18, 20-25)
9 07412900 1 Screw-Tapping .375-16 x .50
10 06219700 2 Bolt-Round Head Square Neck .25-20 x 1.25 Grade 5
11 05618800 2 Seal 1.000 x 1.375
12 02470600 1 LS Case Half Left Hand Large Bore
13 05530100 2 Bushing-Flanged 1.00 x 1.12 x 1.50 x .495
14 52402600 1 Worm Shaft and and Gear Assembly
15 00925700 1 Locktite Gasket 518 850 cc Cartridge
16 02470700 1 LS Case Half Right Hand Large Bore
17 06530100 4 Nut-Locking-Flange .250-20
18 07413000 2 Screw-Tapping 10-24 x .75
19 05803000 2 Pin-Roll .188 x 1.50
20 05806900 1 Pin-Groove .313 x 1.44
21 06416600 2 Washer-Flat-Steel 1.007 x 1.542 x .062
22 05520600 1 Bushing-Flange .502 x 1 x .750
23 02479300 1 Rake Shaft 28"
24 06219800 2 Bolt-Round Head Square Neck .25-20 x 1.00
25 06442500 1 Washer-Fiber .437 x .656 x .032
26 00008000 1 Ariens 16 Oz. Bottle of L2 Lube (2 oz. capacity)
PS0692
1
2
3
4
5
6
7
26 9
10
11
12
13
14
15
14
16
17
18
17
19
19
20
21
21
11
13
22
23
24
25
8
