Ariens SNO-THRO 924119 - 1028 User Manual
Page 13
13

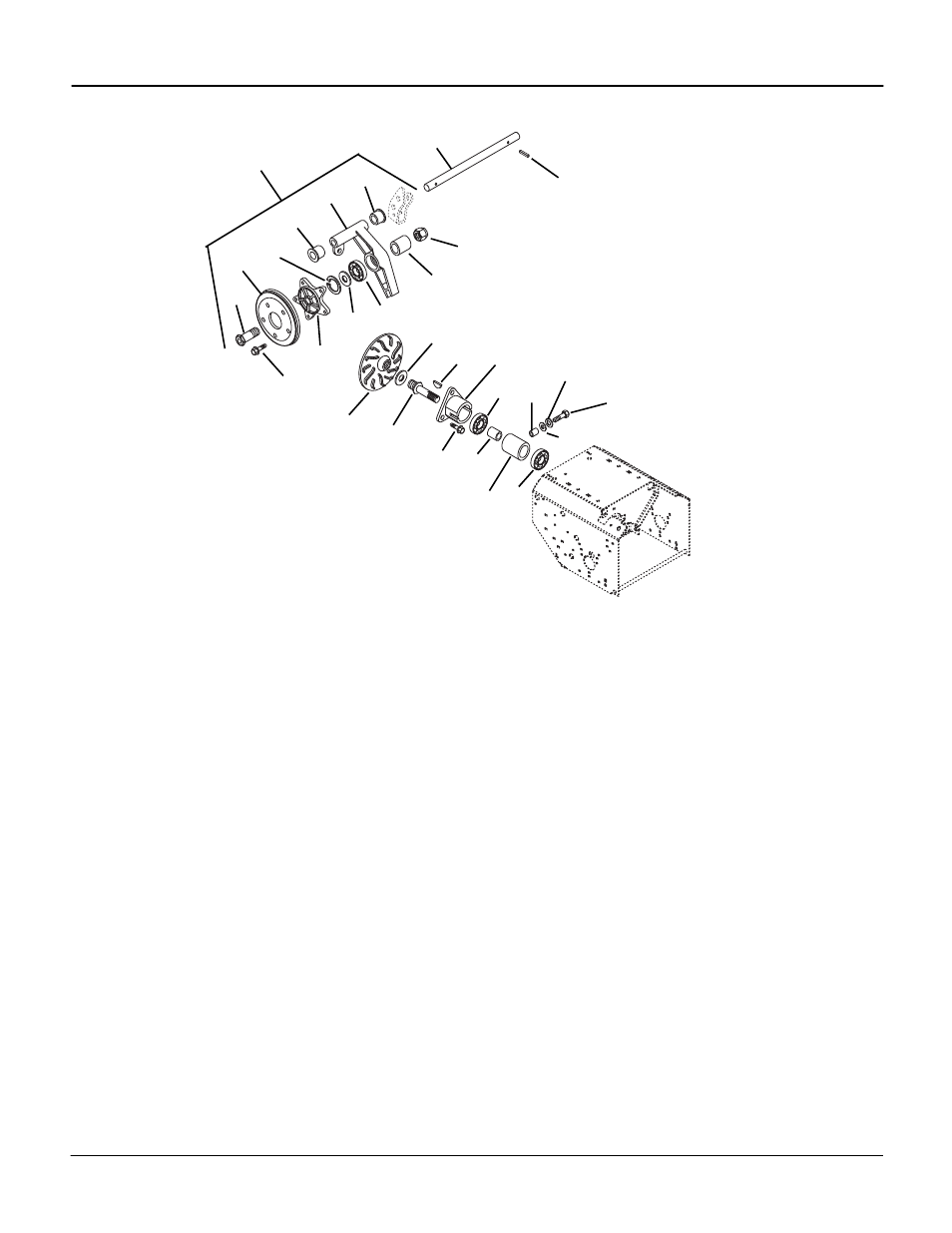

F
RICTION
W
HEEL
D
RIVE
Model 924119, 120, 333, 334, 502, 503, 504
Item
Part No.
Qty.
Description
1
07411500
8
Screw-Tapping .312-18 x .50
2
02445500
1
Spindle Hub
3
00300300
1
Friction Disc
4
02445400
1
Disc Hub
5
05702100
1
Ring-Retaining-Internal 1.750 x .062
6
06436900
1
Washer-Flat-Steel .880 x 1.250 x .062
7
05502600
2
Bushing-Flange .625 x .750 x .500 x .875
8
05512600
1
Bushing-Sleeve .882 x 1.250 x .531
9
06530500
1
Nut-Locking-Nylon .875-14
10
05409300
1
Bearing-Ball .88 x 1.75 x .50
11
02444500
1
Carrier
12
52404600 AR
Friction Wheel Assembly (Contains 1
-
11)
13
02477000
1
Carrier Shaft
14
05802900
2
Pin-Roll .156 x 1.00
15
01054600
1
Drive Plate
16
02407100
1
Drive Disc Spacer 1.3 x .76 x .19
17
02407600
1
Spindle
18
06600600
1
Key-Woodruff .125 x .50 x .203
19
02458200
1
Housing Mount
20
05435100
2
Bearing .625 x 1.375 x .43
21
02415500
1
Bearing Spacer
22
00303400
1
Roller
23
06437200
1
Washer-Flat-Steel .344 x .688 x .065
24
06308600
1
Washer-Lock .31 x .078
25
05946900
1
Bolt-Hex .31-18 x 1.00 Grade 5
26
02458100
1
Spindle Housing
PS0452
1
2
3
4
5
6
7
8
9
7
10
11
12
13
14
15
16
17
18 19
20
1
21
22
23
24
25
26
20
