Eduction, Rive – Ariens SNO-THRO 924119 - 1028 User Manual
Page 12
12

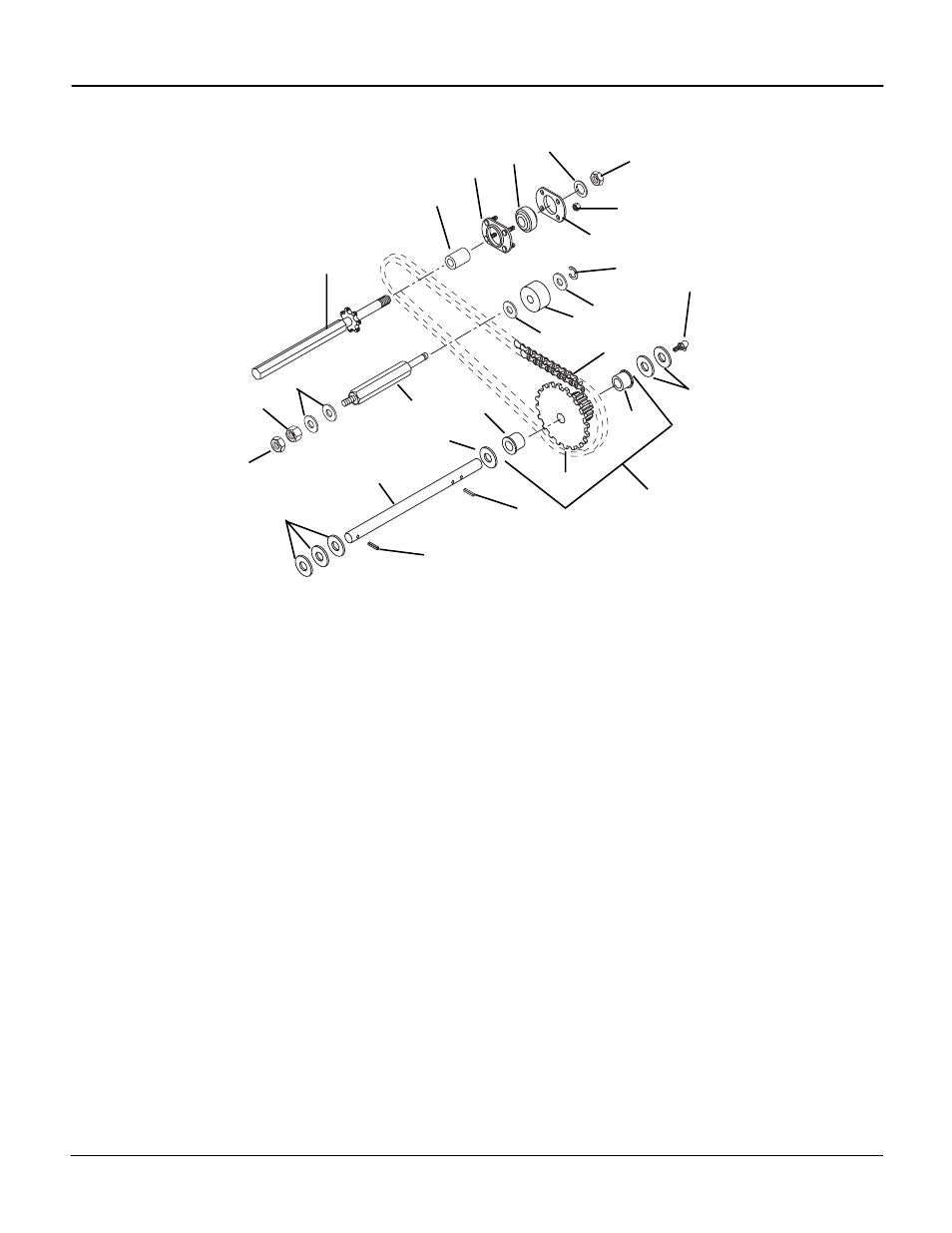

R
EDUCTION
D
RIVE
Model 924119, 120, 333, 334, 502, 503, 504
Item
Part No.
Qty.
Description
1
02477300
1
Hex Shaft
2
06437200
2
Washer-Flat-Steel .344 x .688 x .065
3
02476800
1
Hex Shaft
4
05531600
1
Spacer .450 x .75 x 1.60
5
06436600
1
Washer-Flat-Steel .505 x .880 x .072
6
00308500
1
Bearing Flange
7
05435200
1
Bearing-Ball .437 x 1.375 x .437
8
02414100
1
Bearing Flange
9
06530600
4
Nut-Locking Dual Face 10-24
10
06536400
1
Nut-Locking-Center .438-14
11
05718300
1
Ring-Retaining External .31 x .025
12
07530500
1
Idler
13
06529800
1
Nut-Locking-Center .31-18
14
06436100
6
Washer-Flat-Steel .630 x 1.005 x .062
15
02436700
1
Pinion Shaft
16
02477700
1
Roller Chain #41-34 Pitches
17
07029700
1
Drive Fitting-Hydraulic
18
05802900
1
Pin Roll .156 x 1.00
19
05800900
1
Pin, Roll .125 x 1.00
20
52403200
1
Pinion and Sprocket Assembly (Contains Items 21
,
22)
21
02436800
1
Pinion and Sprocket
22
05502600
2
Bushing-Flange .625 x .750 x .50 x .875
23
06435700
2
Washer-Flat-Steel .38 x .875 x .083
24
06536100
1
Nut, Jam .31-18
PS0463
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
14
22
