BU 6200/00 GB 3
BR
1 BR
2

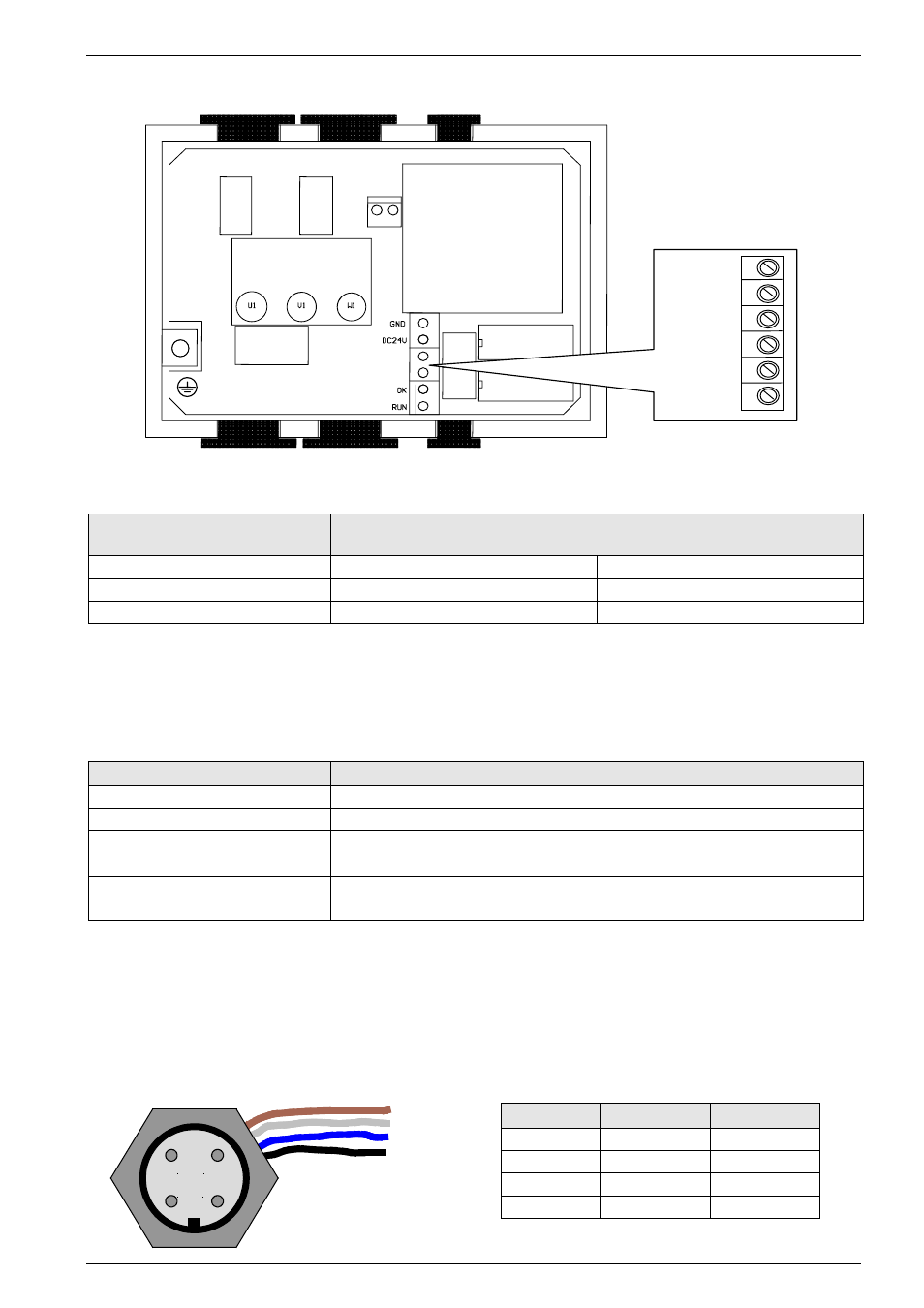

3 Connection
3.1 Power supply
Terminal Clockwise rotation Connec-
tion
Anti-clockwise rotation
U1 L1 L2
V1 L2 L1
W1 L3 L3
Use 4 mm ring tongues to connect the unit to the mains.
When you install the NORDAC connect, never do anything conflicting with the safety regulations !
3.2 Control terminals
Terminal Function
GND 0 V reference potential
DC 24 V 24 V
DC
supply voltage
RUN
24 V
DC
enable signal
high = start , low = stop
OK
24 V
DC
readiness-for-operation acknowledgement signal
high = ready for operation, low = excess temperature
Maximum connection cross section: ...1.5 mm 2
Optional: M12 circular connector
If M12 system cables are used (e.g. when the switchgear is to be connected to a field bus subassembly), the
NORDAC connect can be equipped with an optional M12 flush-mounting connector.
The M12 flush-mounting connector can be inserted in any of the four M25 cable entries.
Pin Colour Function
1 brown 24 V DC
2 white RUN
3 blue GND
4 black OK
OK
RUN
TEMP1
TEMP2
GND
DC 24 V
1
4 3
2
