NORD Drivesystems TI 278910061 User Manual
Technical information / datasheet

Technical Information / Datasheet
Adapter
SK 300E 24 V DC
1.0
Erstausgabe / first issue
0814
Bch
TI 278910061
GB
version
reason for change(s)
issue
name
document
speech
Pos : 1 /T ec hnis che Inf or mationen/ Zubehör/Adapter 300E 24VDC M 8 St ec ker - M12 Buchse / 278910061/ Basisinf or mationen [Adpat er SK 300E 24VDC ] @ 4\ mod_1383219107631_388.doc x @ 104471 @ 55555 @ 1

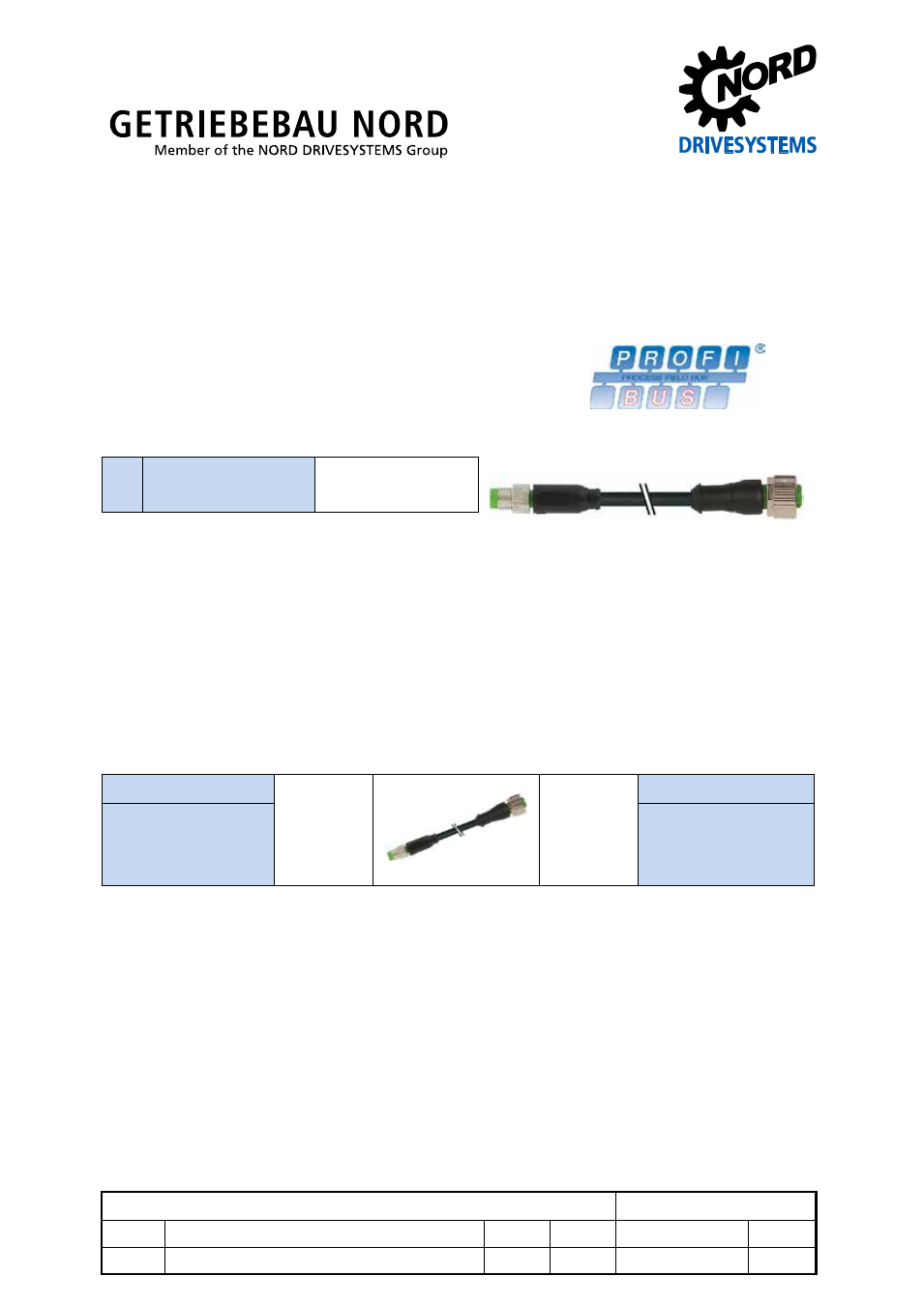

Adapter 300E 24V DC
M8 plug connector / M12 socket
Part number: 278 910 061
Connection cable for external 24V supply
M8 to M12 round plug connector
Scope of delivery
1 x
Adapter 300E 24V DC
Connection cable
M8 straight plug
connector, M12 straight
socket
Field of use
The adapter is used to connect the 24 V DC power supply for migration from SK 300E to SK 180E ...
SK 2xxE frequency inverter field bus applications. Via an adapter cable it is possible to connect the
M8 round plug connector for the external 24 V power supply of the SK TU2-xxx bus options to an M12
round plug connector for the SK xU4-xxx field bus options.
Use
The connection cable is intended for the following field bus technology units / applications.
SK 300E
M8
Plug
connector
3 pin
M12
Socket
3 pin
SK 180E … SK 2xxE
SK TU2-PBR-24V (-C)
SK CU4-PBR
SK TU4-PBR (-C)
SK TU4-PBR-M12 (-C)
