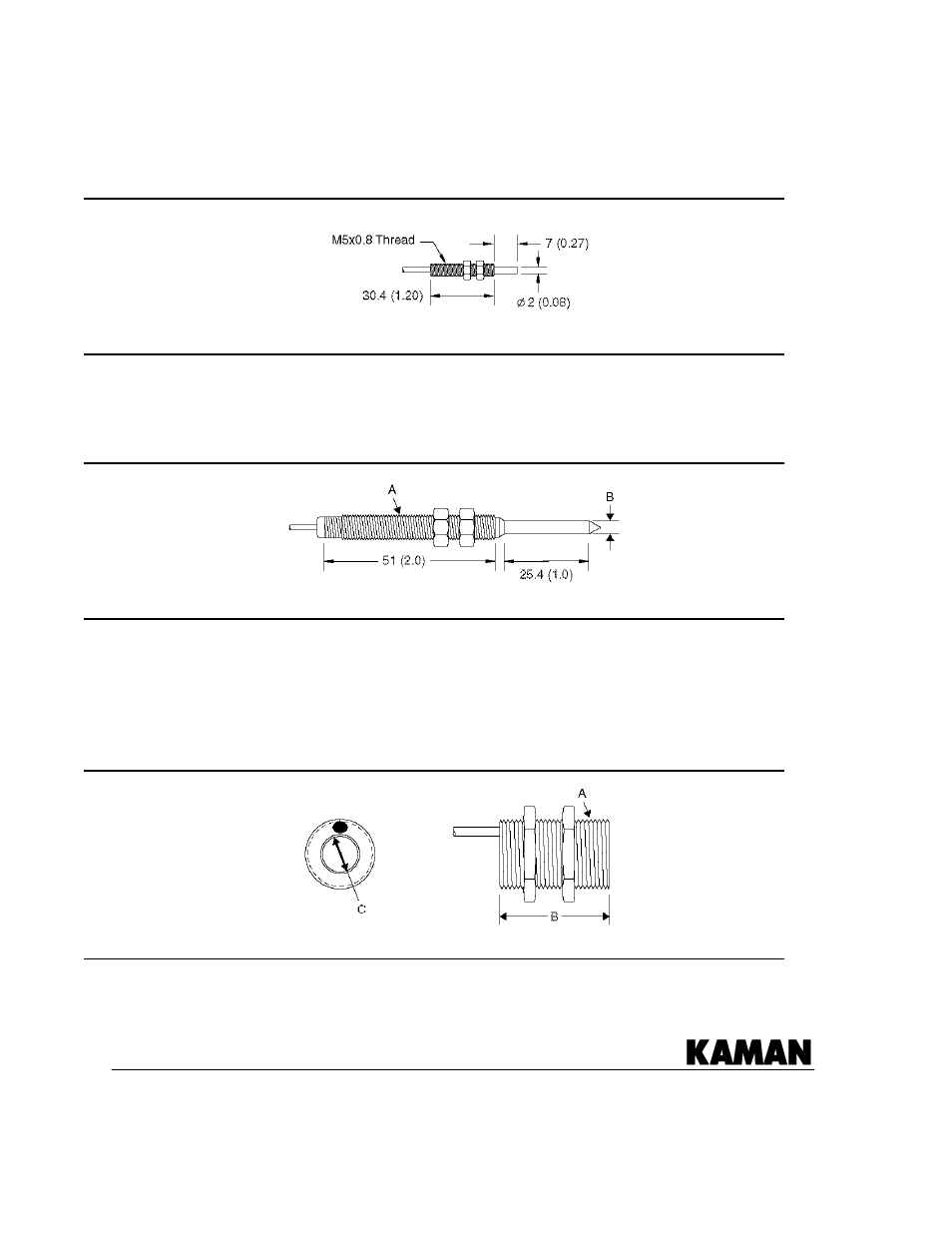

Thread Sensor Specifications:
2 mm Sensor
Hole
sizes Model/Part
#
3mm-5mm, #5-#10
2mm/855641-303
4 mm, 6 mm, 10 mm Sensors
Hole
sizes Model/Part
#
A
B
6mm-7mm,
#12-5/16”
4mm/855641-602
M8x1
4.0
(0.16)
8mm-10mm,
3/8”-1/2”
6mm/855641-802
M8x1
5.8
(0.23)
12mm-14mm, 9/16”-3/4”
10mm/855641-1202 M12x1
9.5 (0.38)
External
Thread
Sensors
Stud
sizes Model/Part
#
A
B
C
4mm-6mm, #6-#10
6mm/855800-605 M18x2.5
31.8 (1.25) 8.0 (0.31)
8mm-10mm, #12-3/8” 8mm/855800-805 M24x3
38.1 (1.50) 11.9 (0.47)
