Electronics Mounting Instructions

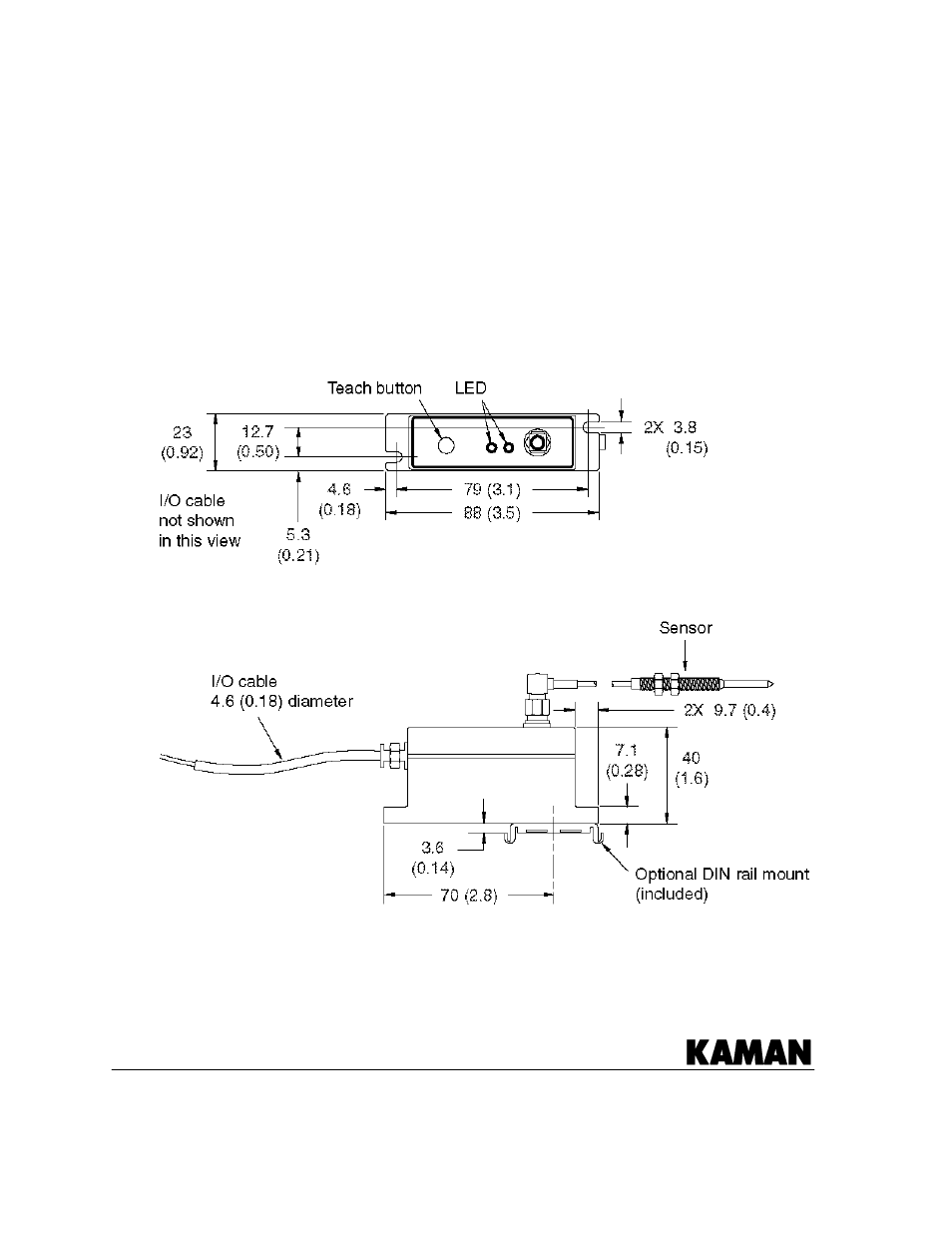

Mounting the ThreadChecker electronics module can be done using the two holes in the
enclosure, and an M-4 (or 6-32) screw (see below). The DIN mount attachment can also
be used to allow mounting on a DIN rail.

Positioning the electronics module so that it is not the low point in the cable will keep
liquids from running down the cable and into the electronics. Take care to route the
sensor cable to avoid crushing or crimping it during use. Damage to the sensor cable
may affect the desired set points and overall operation of the electronics.



All dimensions in mm(inches).
