High Temperature Displacement System
The Zero Control
The Zero control allows you to adjust the offset voltage in the system. It is influenced
slightly by the gain control -- so if you adjust the gain you will probably need to

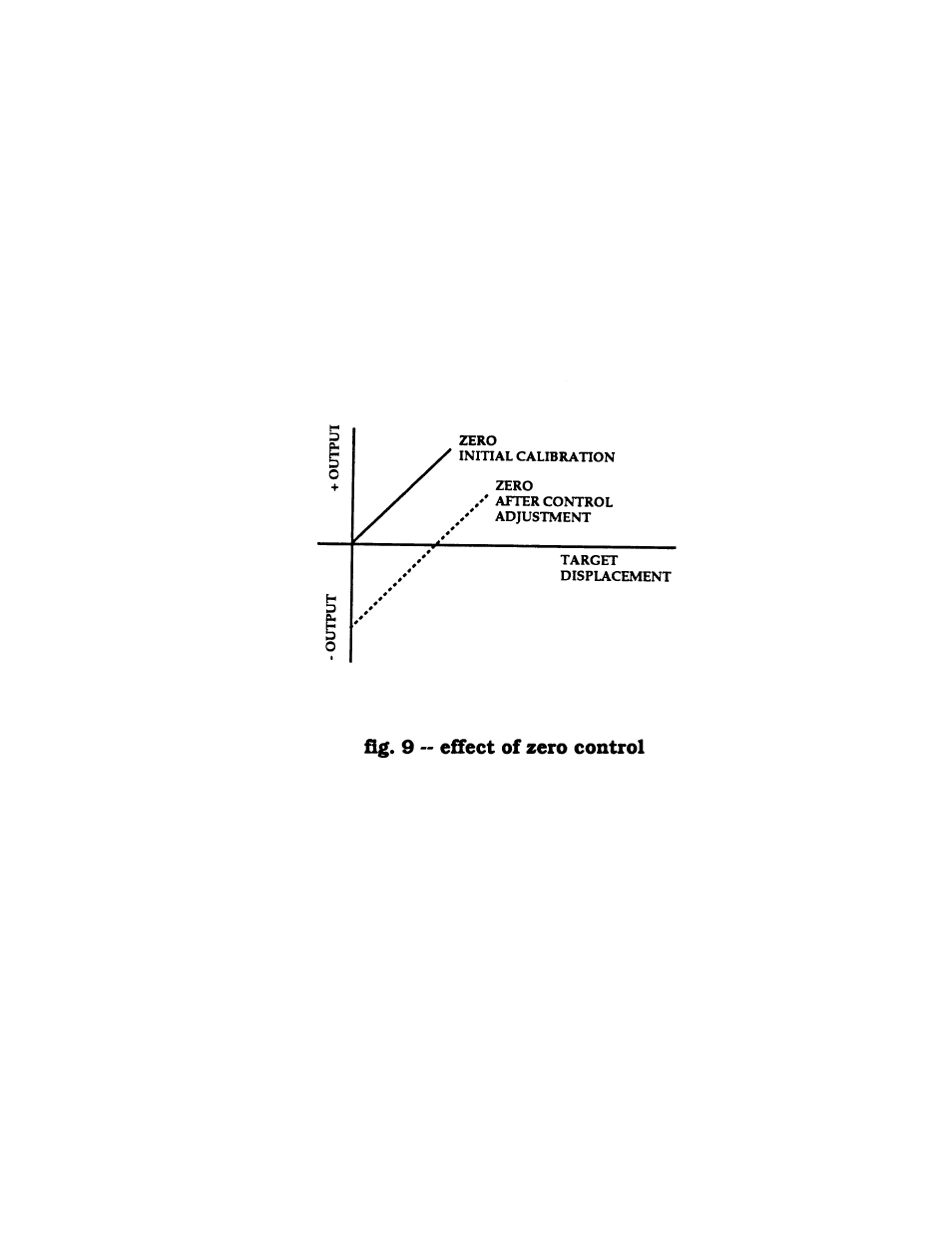

readjust the zero slightly. The effect of the zero control on the output is shown in
figure 9
