SMU-9000 User Manual 18
••••
Part IV: System Performance
SMU 9000-15N (10KHz Bandwidth)
Offset: .004”
Range: .002”
Output: 10V
Target: Aluminum
SMU 9000-15N PN 854294-014 Resolution
(Noise)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
100 1000 10000 100000 1000000
Bandw idth, Hz
p-p noise, microinches

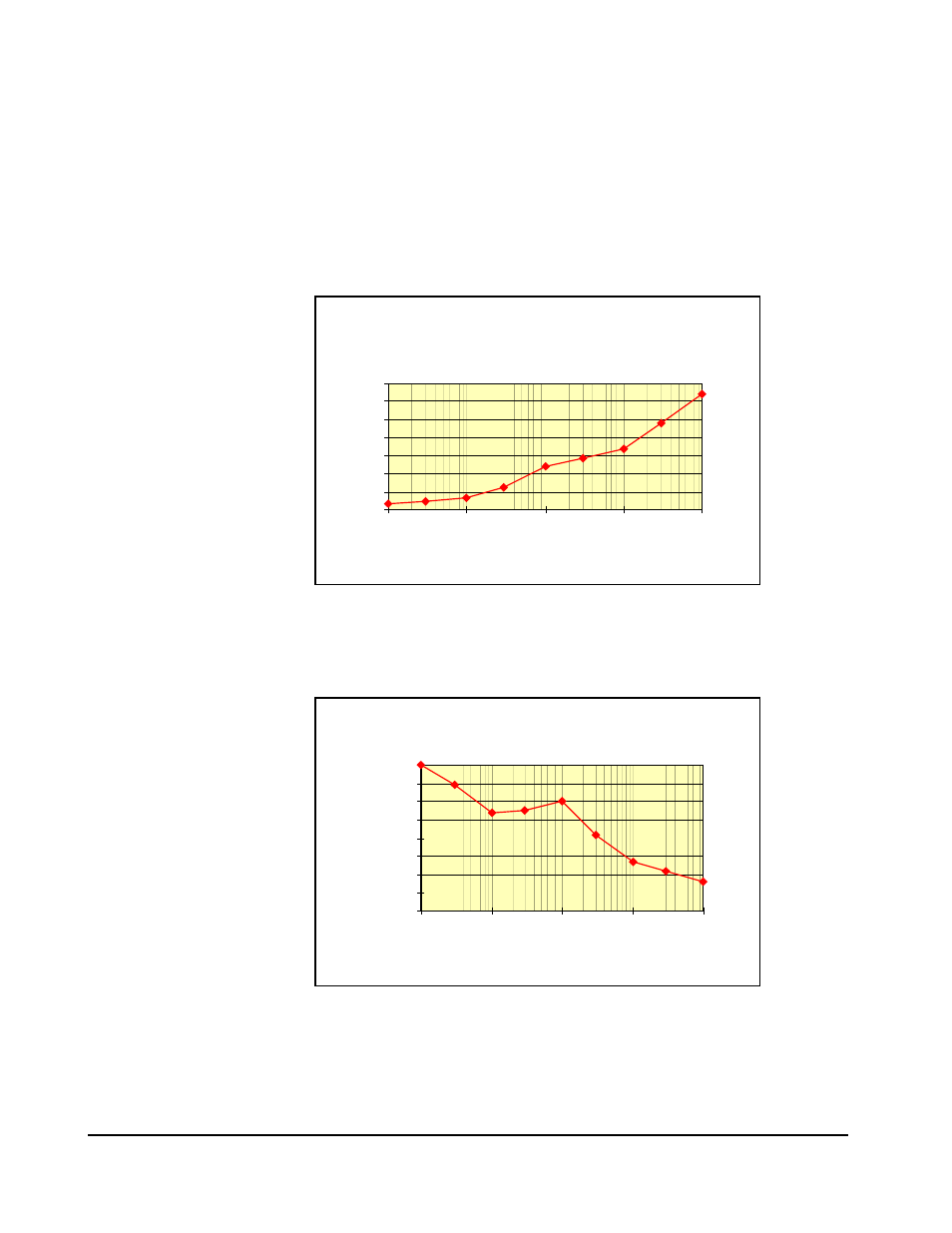

Figure 13. SMU 9000-15N Resolution
SMU 9000-15N PN 854294-014 Noise Density
0.000
0.002
0.004
0.006
0.008
0.010
0.012
0.014
0.016
100 1000 10000 100000 1000000
Bandw idth, Hz
p-p noise, microinches/root
Hz
Figure 14. SMU 9000-15N Noise Density
