3.2 Differential Voltage Output:


This is a true differential output. – V out is not Ground, but a voltage. This output is used to provide a
balanced signal for reduction of common-mode interference (noise picked up equally by both leads).
It can also eliminate a common ground between the KD-2306 and remote equipment in order to

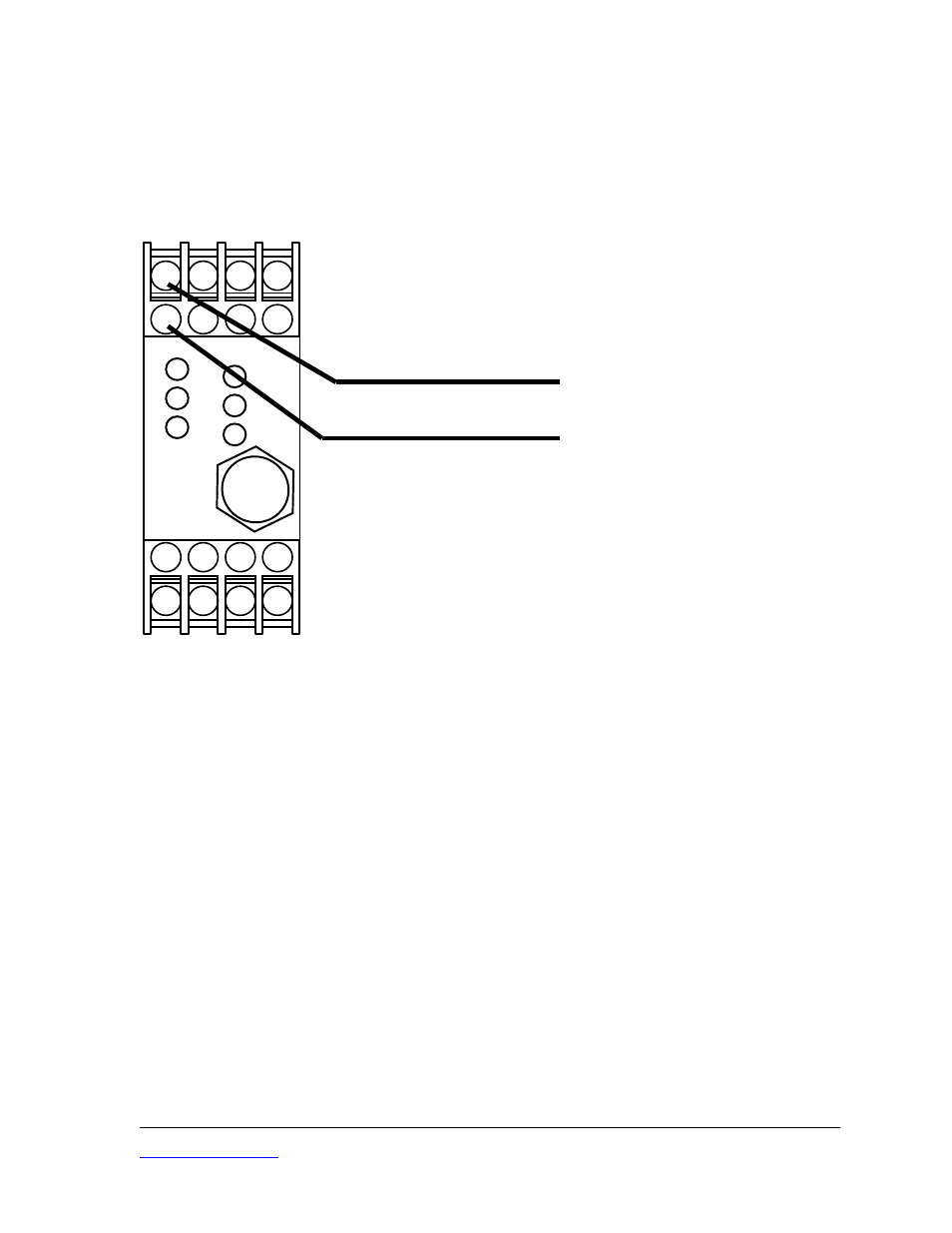

reduce ground loops. It has a maximum span of 10 VDC. For differential voltage output, connect V+
to terminal 1 and V- to terminal 5 as shown.

















+ V

out

- V

out

KAMAN

SENSOR

COARSE

FINE

MAX

MID

MIN

1

2 3

5

4

6 7 8

9 10 11

13

12

14 15 16
