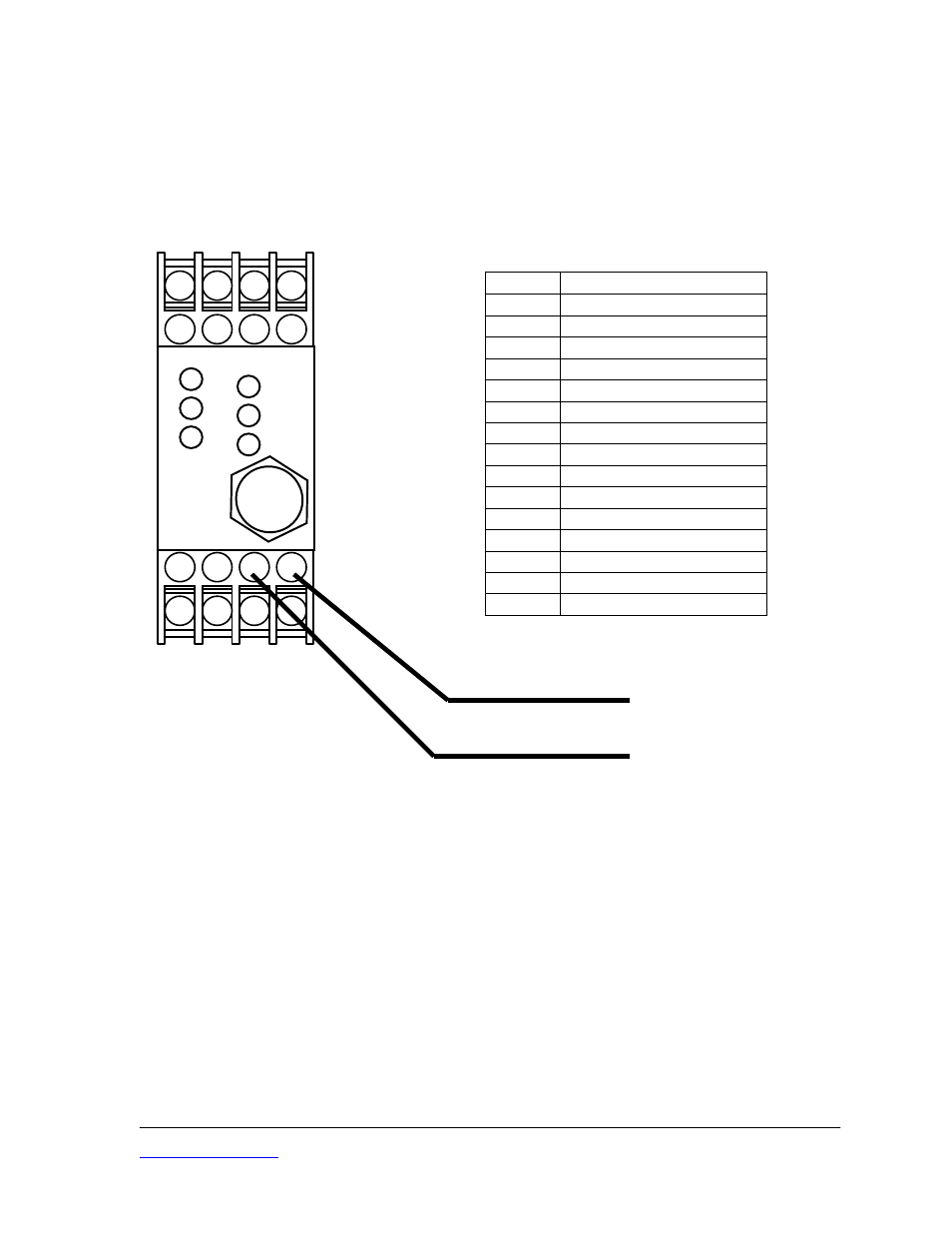

Part 2 - Connecting the KD-2306
The sensor is always connected to the twin BNC connector on the front panel. All other input,
output, and synchronization connections to the KD-2306 are at the terminals as noted in the table
below. More details on these connections are contained in subsequent sections of this manual.
Input power is connected to terminals 11 and 12 as shown. A good quality linear or switching supply
with an output of +15 to 30 VDC is recommended for best (lowest noise) performance. Consult the
Accessories Data Sheet for recommended power supply options.
1 Voltage Output +
2 4-20 mA Output High
3 Ground
4 Synchronization
In
5 Voltage Output -
6 4-20 mA Output Low
7 Ground
8 Earth
Ground
9 NC
10 Ground
11
Voltage Input +15 to 30 VDC
12 Ground
13 Ground
14 Ground
15 Synchronization
Out
16 Ground
Ground
+V
in
KAMAN
SENSOR
COARSE
FINE
MAX
MID
MIN
1 2 3
5
4
6 7 8
9 10 11
13
12
14 15 16
