Part 3 – KD-2306 Outputs
The KD-2306 system has three different analog outputs. All three outputs are always present,
but only one is calibrated. Adjustment of the calibration controls for one of these outputs will drive
the other outputs out of calibration.
Voltage outputs have a maximum single ended span of 10 VDC. Unless otherwise specified, the
system will be factory calibrated for 0-10 VDC over the full measuring range of the sensor. Other
typical outputs are 0-5 and ±5 VDC. The KD-2306 output may also be adjusted to provide a
specific sensitivity, such as 1 V/mm.
3.1 Single Ended Voltage Output:
Unless otherwise specified, this output will be calibrated for 0-10 VDC output at the factory. For

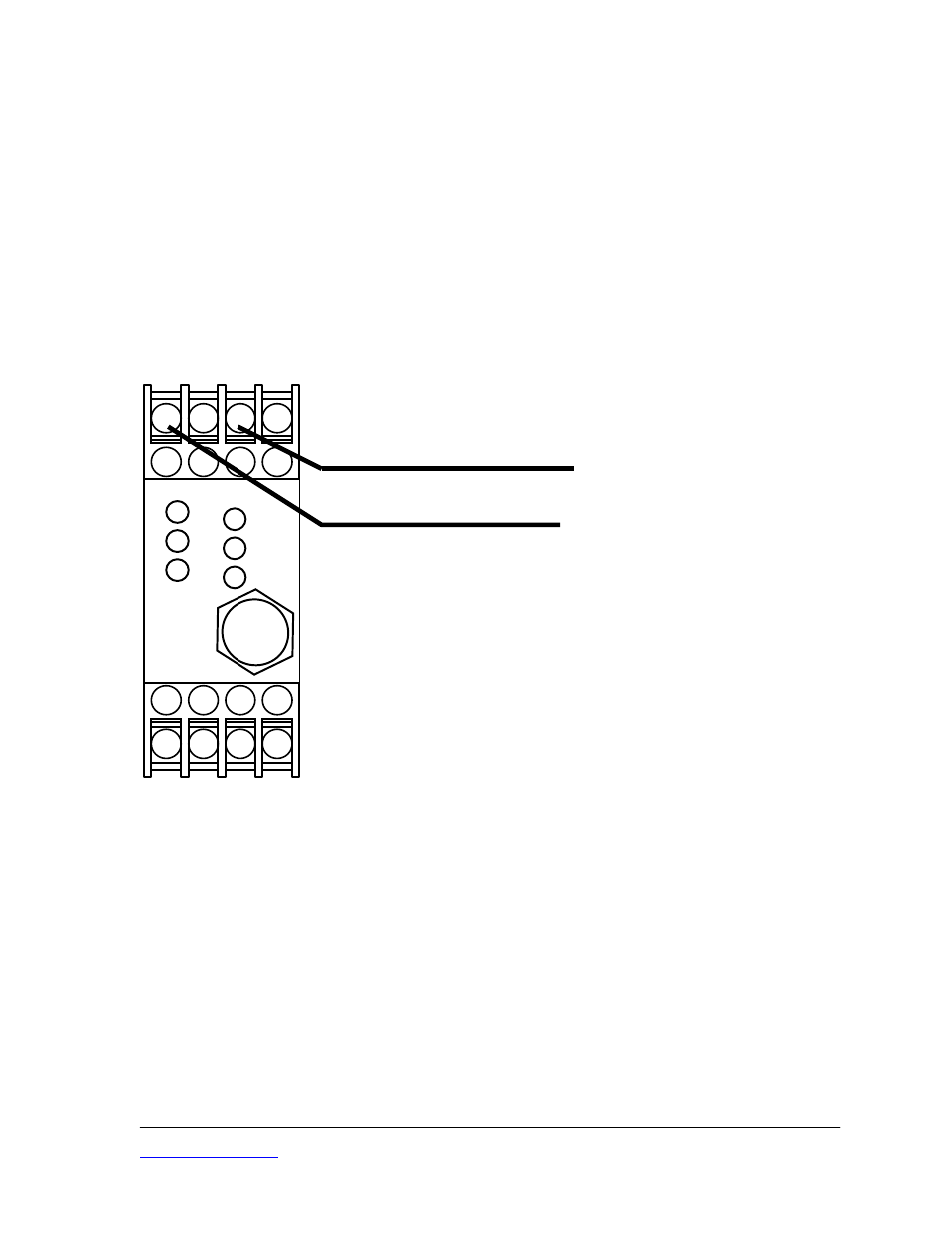

single ended voltage output, connect V+ to terminal 1 and signal return to terminal 3 as shown.
+ V
out
Ground
KAMAN
SENSOR
COARSE
FINE
MAX
MID
MIN
1 2 3
5
4
6 7 8
9 10 11
13
12
14 15 16
