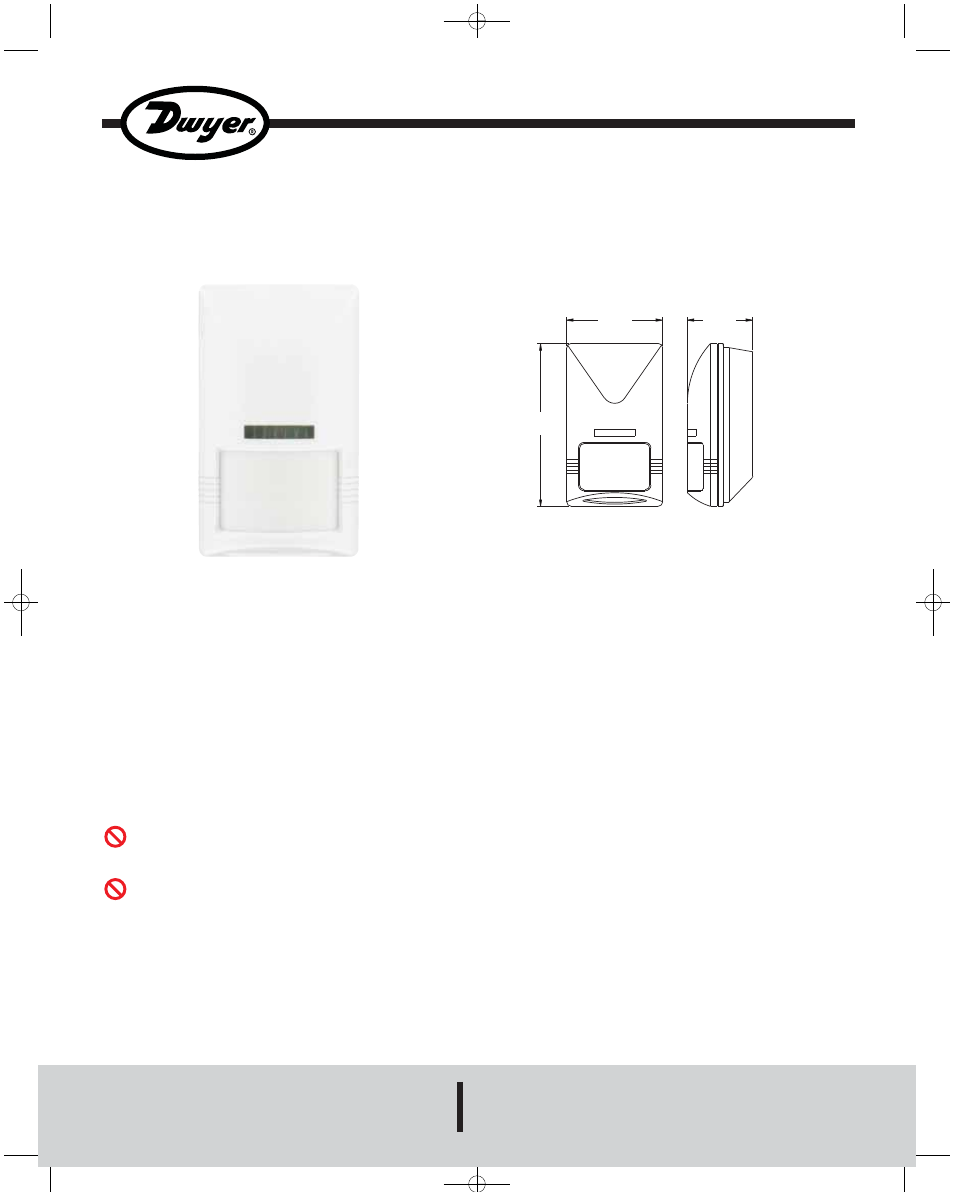

Model OSW-100 Wall Mount Occupancy Sensor
Specifications - Installation and Operating Instructions
Bulletin H-22-OSW
The Model OSW-100 Wall Mount Occupancy Sensor is
an infrared sensor designed to automatically control a
HVAC ventilation system. A unique dual delay processor
eliminates false triggers due to short-term occupancies. The
Model OSW-100 has a wide 110° viewing angle to capture
movement up to 49.2 ft (15 m) away.
INSTALLATION
Do not install where the detector is exposed to direct
sunlight or directly above strong sources of heat.
Do not install in areas that have any obstruction
(plants, large pieces of furniture, curtains, etc.) which
may block the detection.
DWYER INSTRUMENTS, INC.
Phone: 219/879-8000 www.dwyer-inst.com
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A. Fax: 219/872-9057 e-mail: [email protected]
SPECIFICATIONS
Infrared Sensor: Dual Element.
Range: 49.2 ft (15 m).
Detectable Speed: 0.33 to 9.8 ft/sec (0.1 to 3.0 m/sec).
Control Output Rating: SPDT, 0.2A @ 30 VDC.
Ambient Operating Temperature: -4 to 140°F (-20 to 60°C).
Power Consumption: Standby: 5 mA, Operating: 18 mA.
Mounting Height: 5.9 to 11.8 ft (1.8 to 3.6 m).
Power Requirements: 22 to 26 VAC/DC.
Weight: 3.2 oz (90.7 g).
Agency Approvals: CE.
2-39/64
[66.28]
1-25/32
[45.24]
4-27/64
[112.32]
