April, 2003 Page 19 of 20 LCR10 IOM

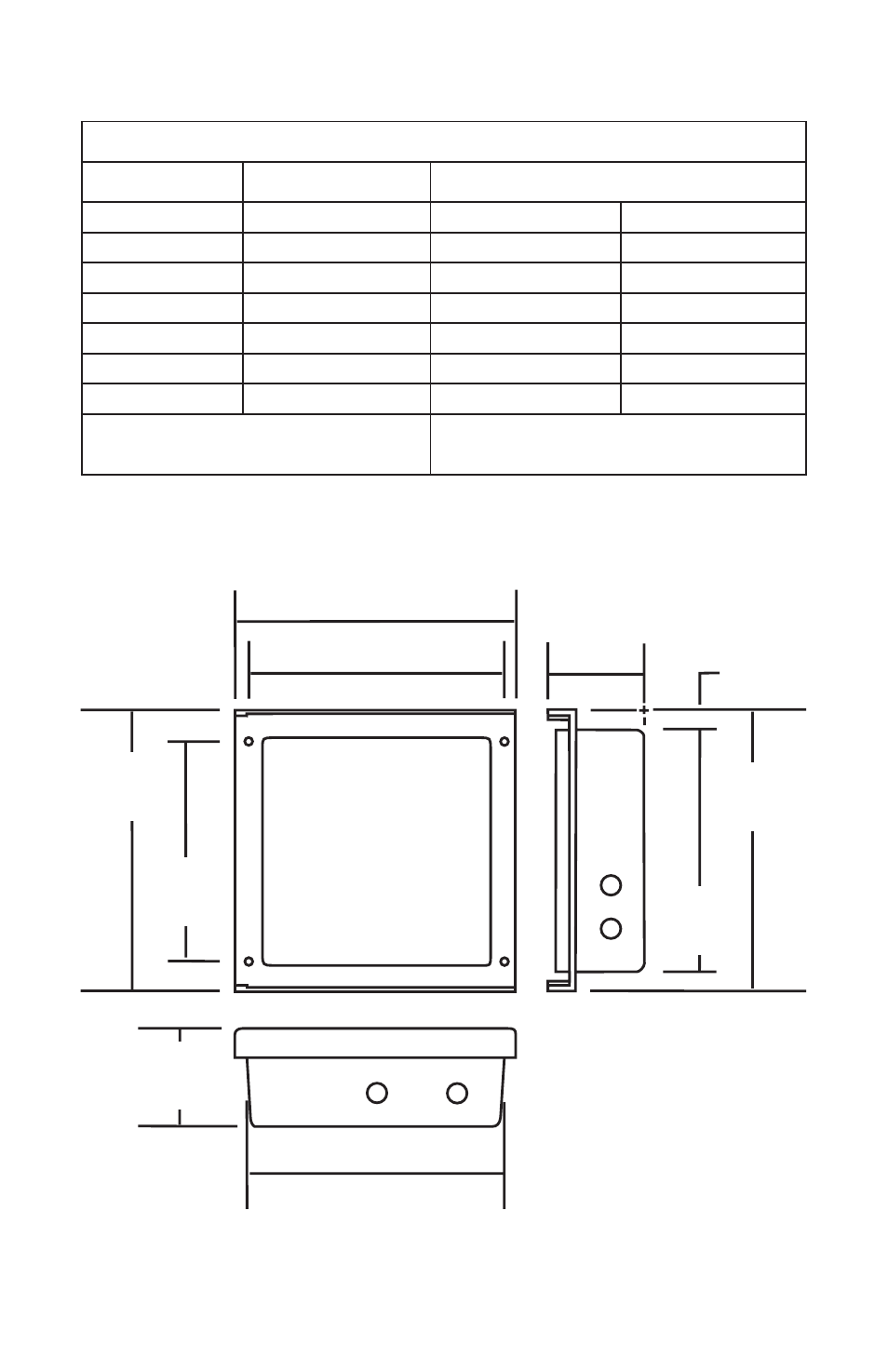

Input Ranges
Input Signals
SENSOR TYPE RANGES
Thermocouple J -130 to 760°C -202 to 1400°F
Thermocouple K -130 to 1360°C -202 to 2498°F
Thermocouple T -200 to 400°C -328 to 752°F
Thermocouple R 0 to 1650°C 32 to 3002°F
Thermocouple S 0 to 1650°C 32 to 3002°F
Thermocouple B 100 to 1824°C 212 to 3315°F
RTD 100 Ohm Plt. DIN -210 to 440°C -346 to 824°F
DC Voltage: 0 to 5 VDC, linear.
DC Current: 4-20mA, linear.
0 to 100% of the chart span.
Chapter 6 Dimensions
Dimensions are in millimeters (inches).
320.68
(12.625)
334.95
(13.187)
17.45
(0.687)
355.60
(14.000)
90.07
(3.546)
90.07
(3.546)
355.60
(14.000)
302.41
(11.906)
355.60
(14.000)
320.68
(12.625)
