Page 4

ADJUSTMENT
The Belt Sway Switch is adjusted to 20° and 35° at the factory.
If the angle of activation must be adjusted, the following steps
must be taken. Loosen the setscrew using an allen wrench as
shown in Fig 5 so that the cam can be moved. Rotate the cam to
the desired angle, and tighten the setscrew. Move the touch
roller to confirm that the micro switches activate at the desired
angle.

MAINTENANCE/REPAIR
Upon final installation of the Series CBAS, no routine
maintenance is required. The Series CBAS is not field
serviceable and should be returned if repair is needed. Field
repair should not be attempted and may void warranty.

WARRANTY/RETURN
Refer to “Terms and Conditions of Sales” in our catalog and on
our website. Contact customer service to receive a Return
Goods Authorization number before shipping the product back
for repair. Be sure to include a brief description of the problem
plus any additional application notes.

DEACTIVATED

ACTIVATED

ROLLER LEVEL

TERMINAL SCREW

COM-1, 4
NO- 3, 6
NC- 2, 5

MULTISWITCH

ROTATE

CAM

SET SCREW

LOOSEN

TIGHTEN

ALLEN WRENCH

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000

www.dwyer-inst.com

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.

Fax: 219/872-9057

e-mail: [email protected]

Printed in U.S.A. 3/11

FR# R4-443727-00 Rev. 1

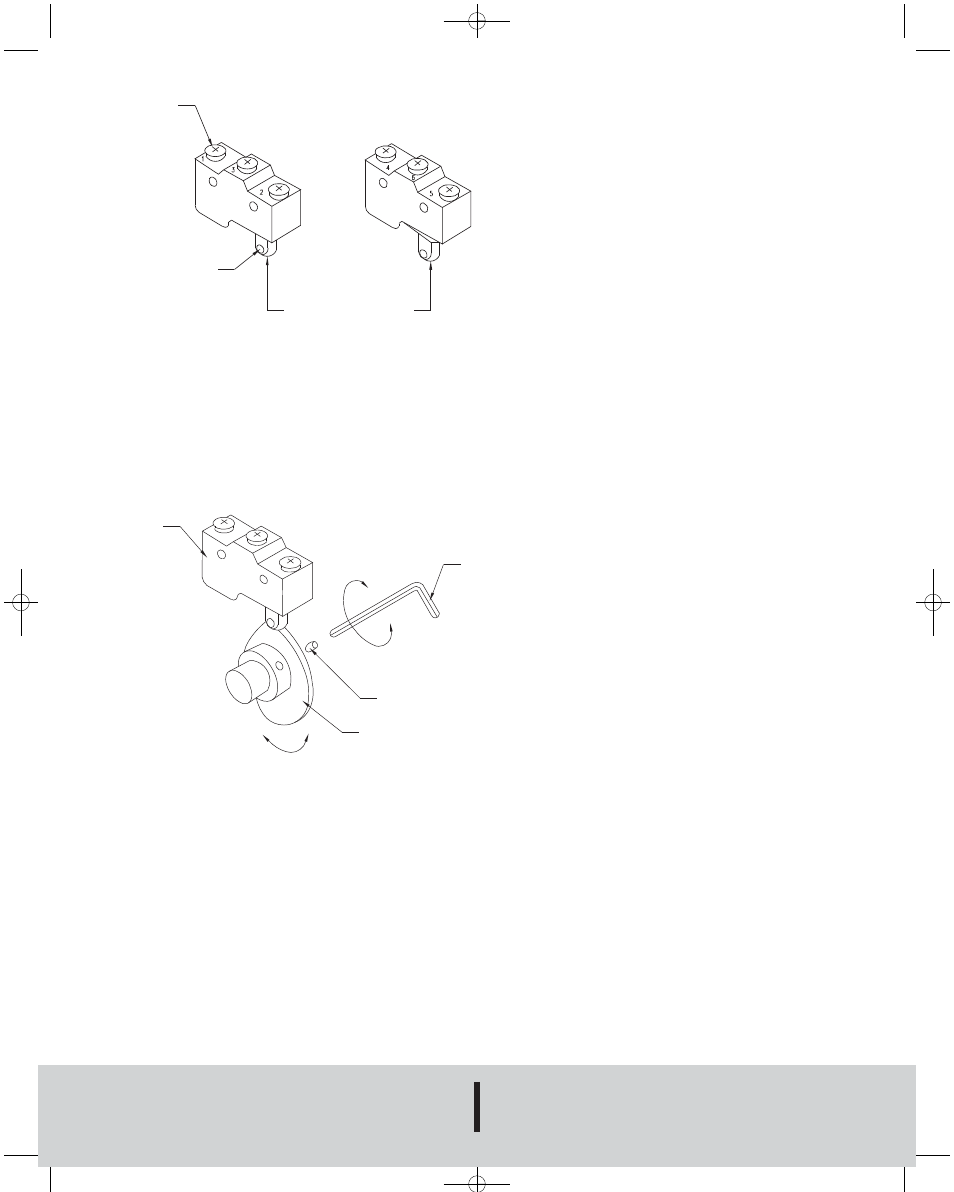

Fig. 4 Operation of Micro swtich

Fig. 5 Adjustment of Cam
