Camera interfaces
Hardware Installation Guide V2.0.0
60
OutVCC
Resistor value
5 V
1 k
Ω
≈ 5 mA load
12 V
2.4 k
Ω
24 V
4.7 k
Ω
Figure 40: OutVCC (STINGRAY)
Note
L
STINGRAY
•
Voltage above +30 V may damage the optical
coupler.
•
The output connection is different to the AVT Marlin
series to achieve higher output swing.
•
Depending on the voltage applied at OutVCC and the
type of input which you want to drive, it may be neces-
sary to switch an external resistor in series between
GPOut1...4 and ground. See
ics with external resistors R (pin no. from camera I/O
connector) (STINGRAY)
•
Typical delay is not more than 40 µs.

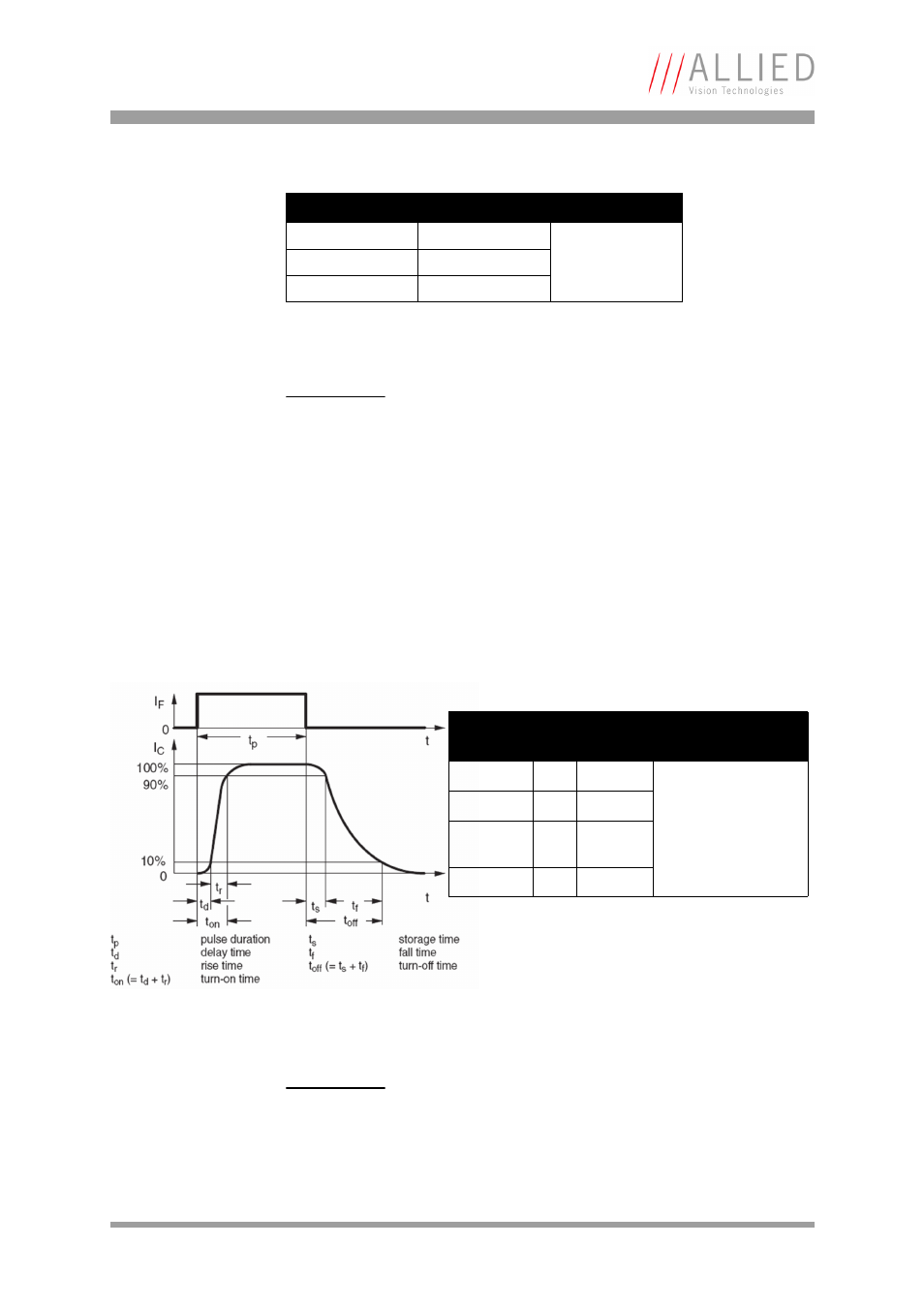

Figure 41: Output schematics: switching times (STINGRAY)
Note
L
For information on output features (IntEna, Fval, Busy) and
configuration via registers see Technical Manuals.
Parameter Sym-
bol
Value
(TLP281)
Condition
Delay time t
d
0.78 µs
OutVCC = 5 V
Resistor value = 1 k
Ω
Rise time
t
r
0.65 µs
Storage
time
t
s
27.6 µs
Fall time
t
f
11 µs
