Camera interfaces
Hardware Installation Guide V2.0.0
57
Outputs PIKE
The PIKE cameras have 4 non-inverting outputs with open emitters. These are
shown in the following diagram:

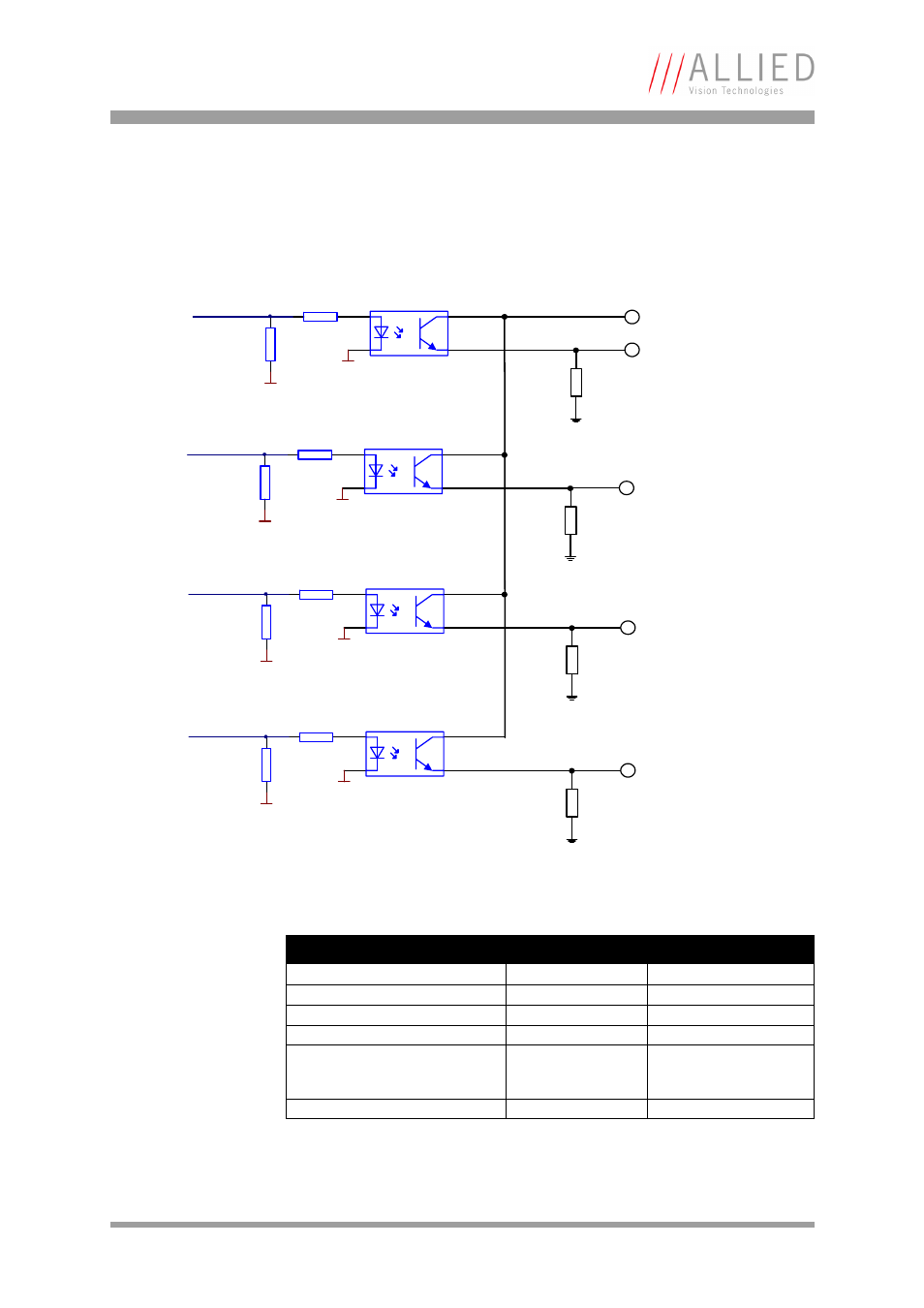

Figure 34: Output schematics with external resistors R (pin no. from camera I/O connector) (PIKE)
Parameter Test condition Value
Collector emitter voltage Max. 35 V
Emitter collector voltage Max. 7 V
Emitter current Max. 50 mA
Collector current Max. 80 mA
Collector peak current t
p
/T=0.5 100 mA
Power dissipation 150 mW
Figure 35: Output parameters (PIKE)
PIKE
GPOut1 – Pin 6
GND
OutVCC – Pin 10
GND
R
GPOut2 – Pin 12
GND
GND
R
GPOut3 – Pin 5
GND
GND
R
GPOut4 – Pin 3
GND
GND
R
t
p
10ms
≤
