Camera interfaces
Hardware Installation Guide V2.0.0
38
PIKE/STINGRAY fiber infos and cautions
All PIKE and STINGRAY cameras are also available as fiber version with
1 x GOF connector and 1x copper connector.
The GOF connector is of the following type: 2 x optical fiber on LCLC
The GOF transmission uses MMF (multi-mode fiber at 850 nm).
Connect the camera by using either of the connectors. The other connector
can be used to daisy chain a second camera. In case of long distances
between PC and camera, use the GOF connector for the long distance and the
IEEE 1394b connector for optional daisy-chaining. Please ensure that you use
a GOF hub on the PC side for reconversion from GOF to copper (order number
E3000074 (with mounting plate) or E3000084 (with top-hat rail)). Alterna-
tively use PCI or PCIExpress cards with built in GOF port. Ask your dealer for
availability and details of these cards.

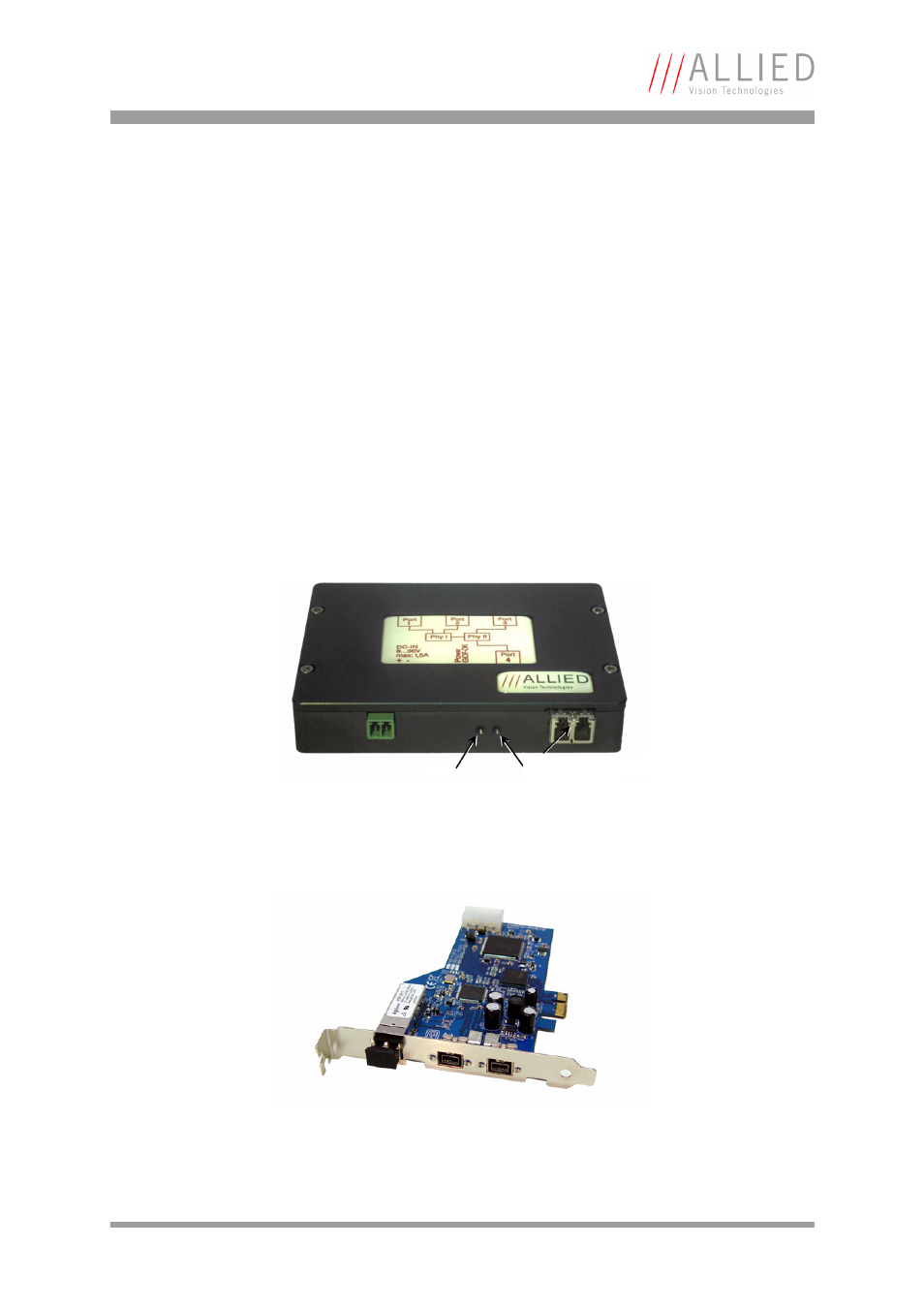

Figure 13: GOF hub
Figure 14: PCI Express card (1 x GOF, 2 x 1394 bilingual)
Dust cover off
Optical connection ok
Power
