Camera interfaces
Hardware Installation Guide V2.0.0
32
Camera interfaces
Each AVT camera has the following interfaces:
• The 12-pin camera I/O connector (Guppy: 8-pin) provides different con-
trol inputs and output lines.
• One or two IEEE 1394a or 1394b connectors with screw lock mechanism
provide access to the IEEE 1394 bus and thus makes it possible to con-
trol the camera and output frames.
– DOLPHIN, OSCAR, MARLIN AND GUPPY provide one 1394a connector
– PIKE and STINGRAY provide 2x 1394b connectors.
Note
L
For information on status LEDs see the Technical Manuals.

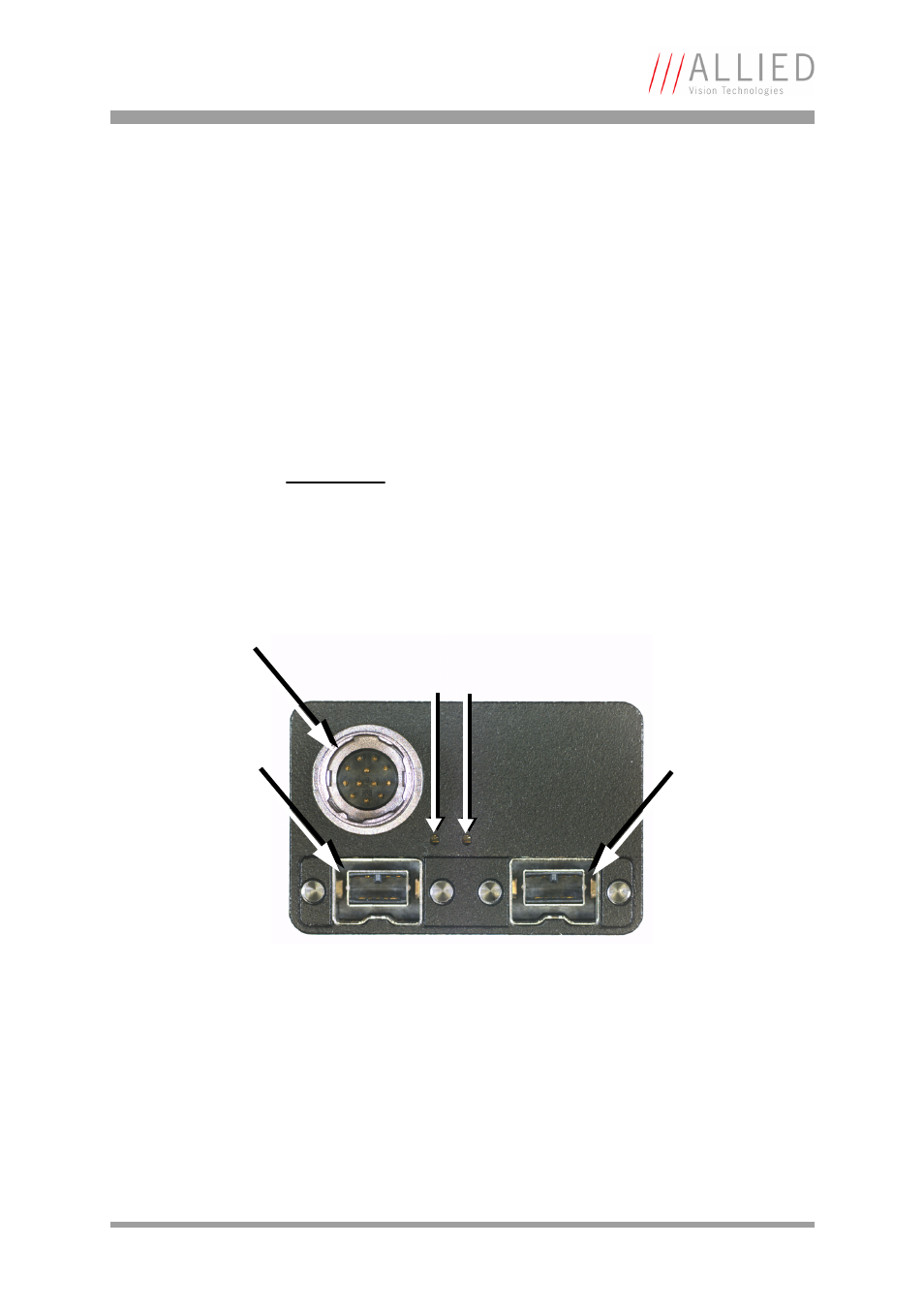

Figure 9: Example: Rear view of STINGRAY camera (2x 1394b copper)
Status LEDs
LED2
12-pin camera
IEEE 1394b connector
(copper)
IEEE 1394b connector
(copper)
LED1
I/O connector
