Crystal M1 Digital Test Gauge - Manual (Page 3)

Note: Whenever one of the rd settings is selected,
the battery icon will change from to
indicating that the M1 is in Ultra Low Power Mode.

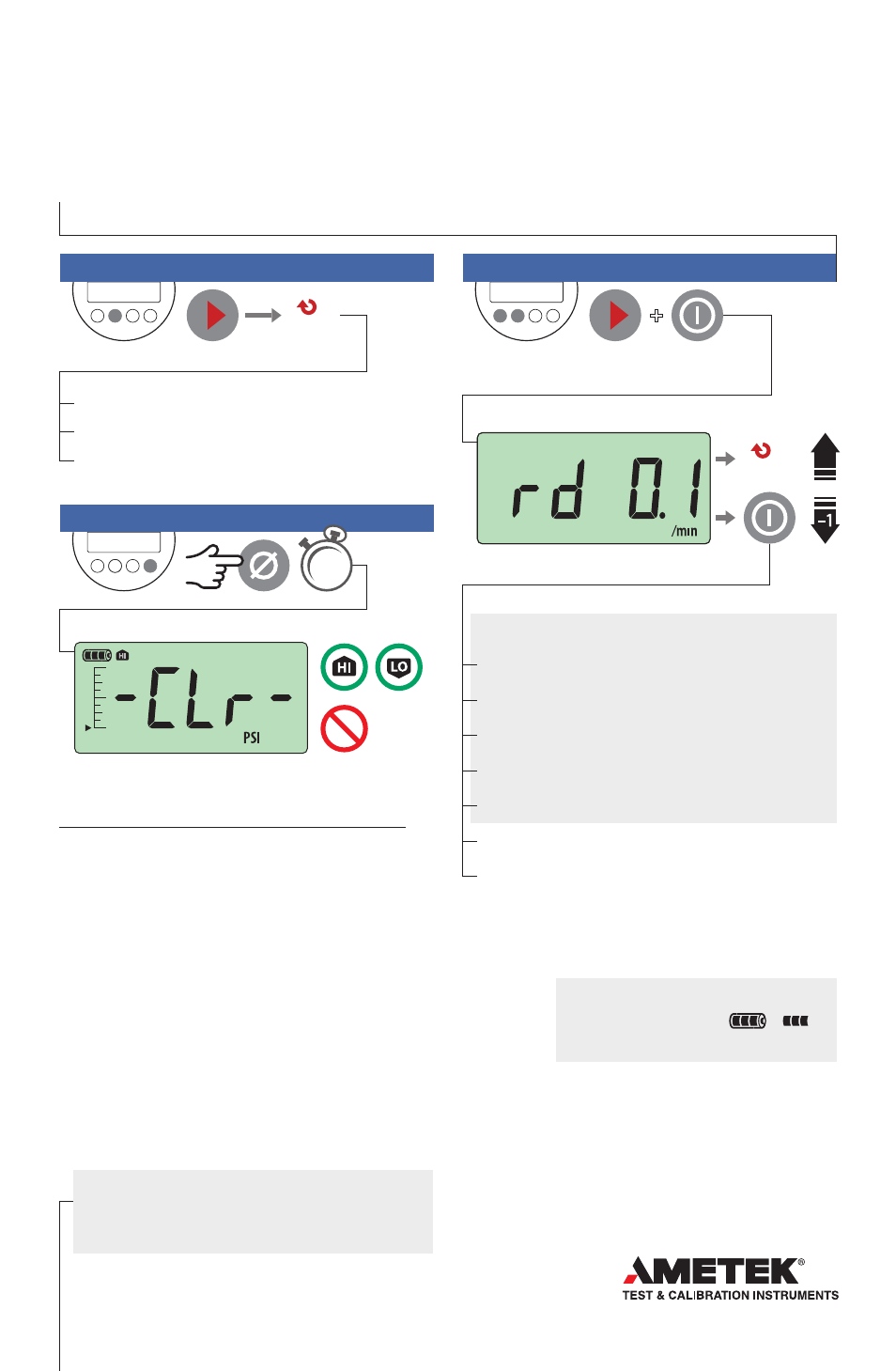

Gauge Setup Map
continued
Troubleshooting
Err 1 displayed:
The M1 checks the internal calibration every time it’s turned on.
Contact factory for further instructions.
Err 2 displayed:
The M1 has tried to display a number too large
for the display due to electrical malfunction or numerical error.
Contact factory for further instructions.
Err 5 or Err 6 displayed:
The M1 pressure sensor is exhibiting behavior out of normal
operating condition. Contact factory for sensor replacement.
Power Management
*
+
= + 1
=
next
( )
Lt: 15 (light stays on for 15 seconds)
Lt: 60 (light stays on for 60 seconds)
Lt: On (light does not turn off automatically)
3x
Backlight Timer
To Clear Peaks or Line Pressure
next
( )
setup
Note: If there is no gauge activity for 10 seconds, the gauge
will return to operating mode. Any Setup options that you have
selected will be enabled.
Ultra Low Power Mode
c r y s t a l e n g i n e e r i n g . n e t
*
This menu can be accessed only when the gauge is off.
*
At “Power On,” this setting is displayed as No Auto off
*
At “Power On,” this setting is displayed as Auto off 1H
*
Off - -
*
. . . . . (4/1 second . . . . . 600 hours)
Off 1H
**
. . . (4/1 second . . . . . 600 hours)
rd 4.0 . . . . . . . (1/15 seconds . . . 3,000 hours)
rd 2.0 . . . . . . . (1/ 30 seconds. . . 6,000 hours)
rd 1.0 . . . . . . . (1/1 minute . . . . . 10,000 hours)
rd 0.2 . . . . . . . (1/5 minutes . . . . 25,000 hours)
rd 0.1 . . . . . . . (1/10 minutes . . . 30,000 hours)
m1
Quick Reference
1
sec
