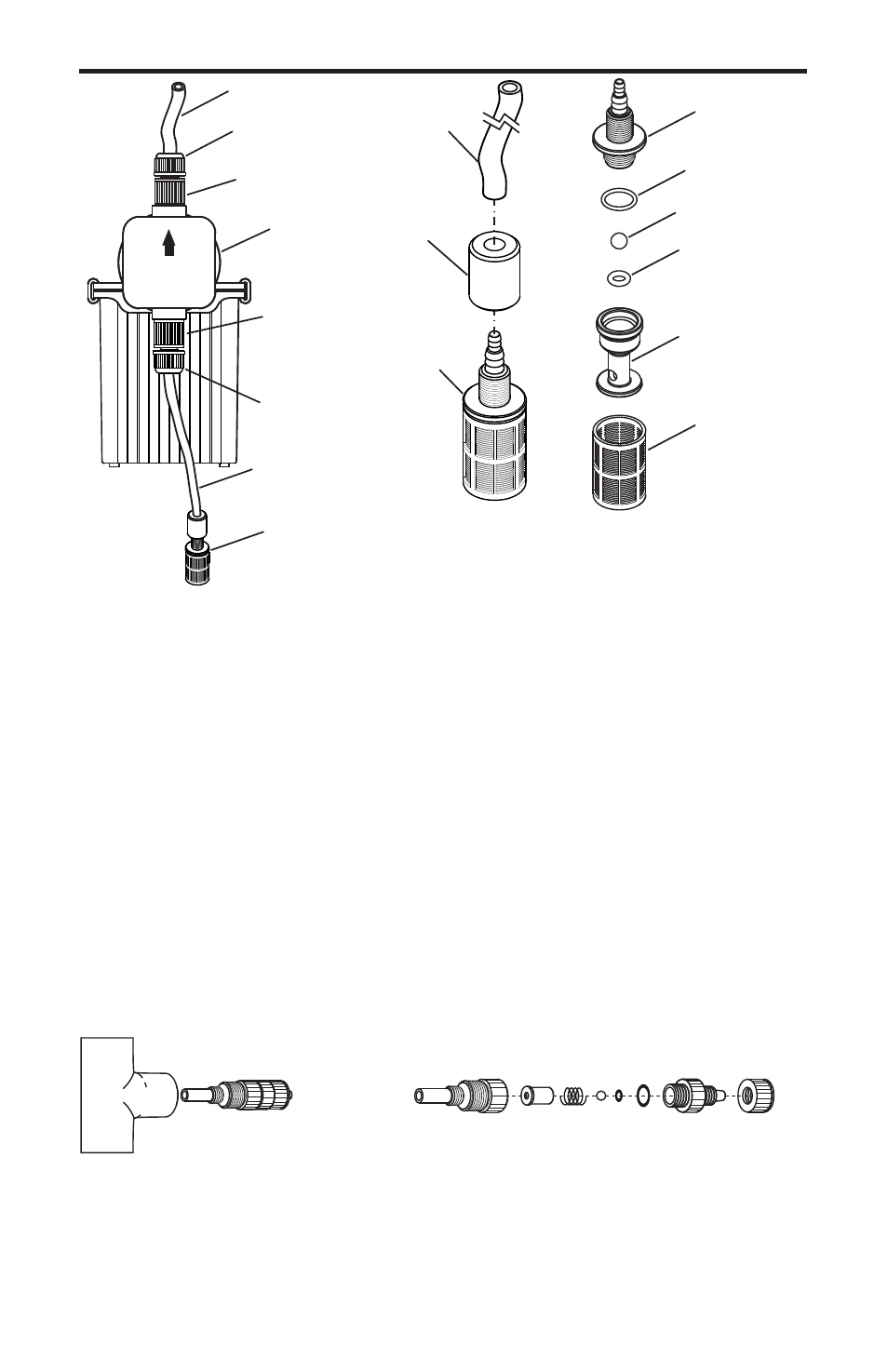

FootValve Assembly
Must be installed in
a vertical position.
DO NOT LAY ON SIDE!
Ceramic
Weight
Suction Tubing
Footvalve Adapter
O-Ring
Ceramic Ball
O-Ring
Footvalve Body
Footvalve Strainer
Discharge Tube
(Rigid P.E.)
Outlet Adapter
Tube Nut
Inlet Adapter
Tube Nut
Suction Tubing
(clear PVC)
Pump Head
FootValve
FIG. 4.6
FIG. 4.7 FOOTVALVE ASSY.
4.3.4 Injection/Check Valve Fitting Installation - The Injection/Check valve
fitting is designed to install directly into either 1/4” or 1/2” female pipe
threads.
Install the Injection/Check valve directly into the tee fitting. Do not install the
fitting into a pipe stud and then into the tee. The solution must inject directly
into the flow stream.
Use PTFE thread sealing tape on the pipe threads. Push the opaque outlet
(discharge) tubing onto the compression barb of the Injection/Check valve
fitting. Use the tube nut to secure the tube. Hand tighten only.
Injection/Check valve fitting fitting will require periodic cleaning, especially
when injecting fluids that calcify such as sodium hypochlorite. These lime
deposits and other build ups can clog the fitting increasing the back pressure
and interfering with the check valve operation. See section 6.0.
FIG. 4.8
INJECTION/CHECK VALVE
TEE INSTALLATION AND EXPLODED VIEW
C-1500N Page 7
