Blue-White C-1500N CHEM-FEED Diaphragm Pump - Manual (Page 4)

#10-32
FIG. 4.2 SWIMMING POOL INSTALLATION
FIG. 4.3 TYPICAL INSTALLATION
® 1. Strainer Blue-White F-300
2. Circulation Pump 7. Injector
® 3. Filter Blue-White C-1500N
4. Heater 8. Solution Tank
5. Check Valve 9. Injection Fitting
6. Flowmeter 10. Return Line
1
Pool
2 3 5 4 6 7
8
9
10
Discharge Tube
Pumping unit
Suction Tube
(vertical)
Chemical
Container
¼" & ½" NPT Injector
C-1500N
4-1/2”
9-1/16”
5-3/4”

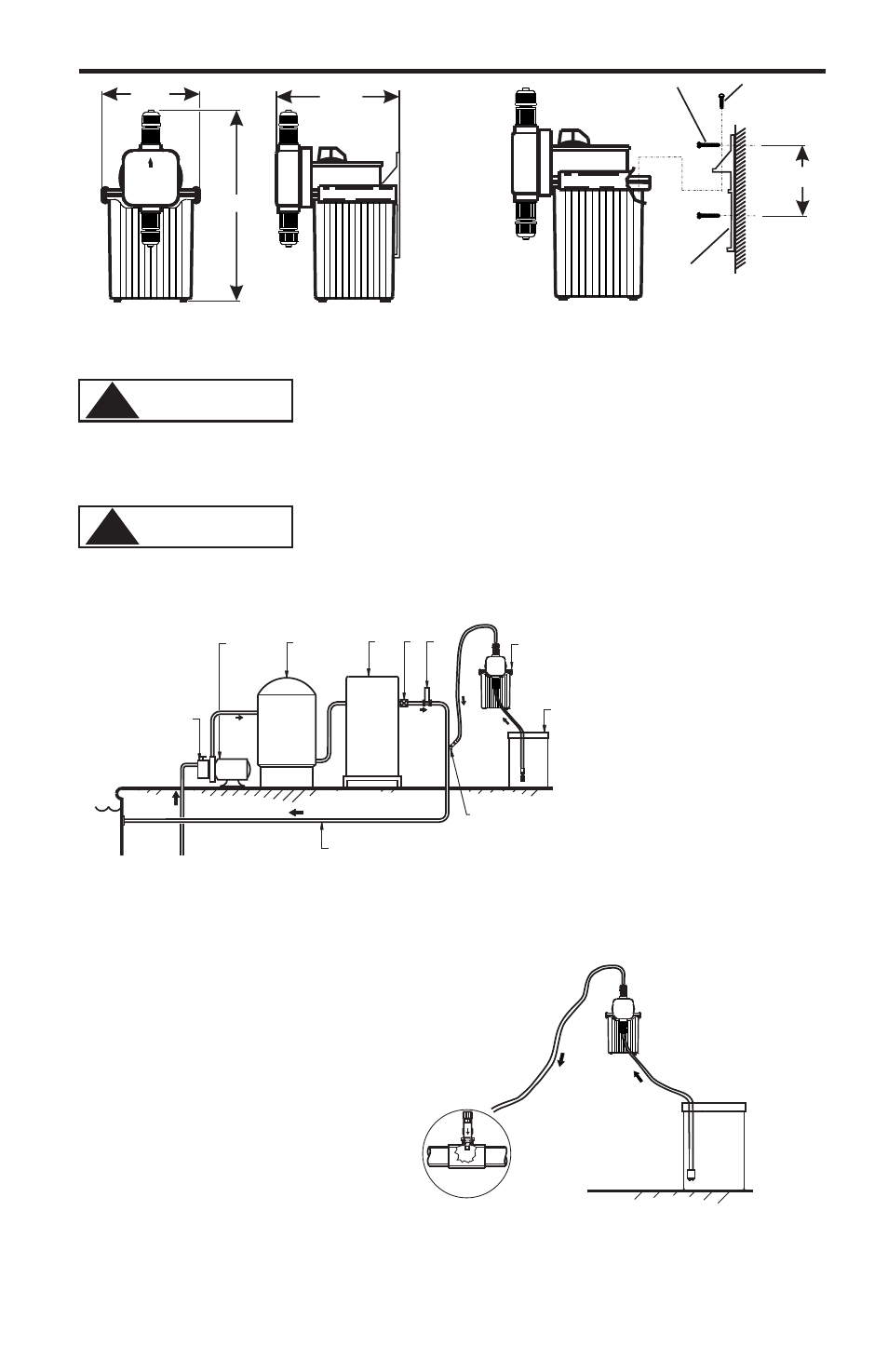

FIG. 4.0 DIMENSIONAL DRAWING FIG. 4.1 INJECTOR WALL MOUNTING
#10 Self-Tap
(2 X)
Wall Mount
Bracket
C-1500N Page 4
Risk of chemical overdose. Be certain the
pump does not overdose chemical during
backwash and periods of no flow in the
circulation system.
! WARNING
To prevent chemical overdosing, a flow switch
is recommended on the circulation system to
automatically stop chemical feed when there is
no return flow to the swimming pool or spa.
! CAUTION
