WIRING DIAGRAM

1 2

4

3

5

BLANCETT

817/920-9998

MODEL 1225T

S.N. XXXX
>>-------->

Part #222228

RF Preamplifier

Part #111117

RF Pickup

Illustration Using

Model 121-225 Meter

Cable Assembly

Part #120003

Black

White

7...30V DC

Green

10V Pulse Output

Common

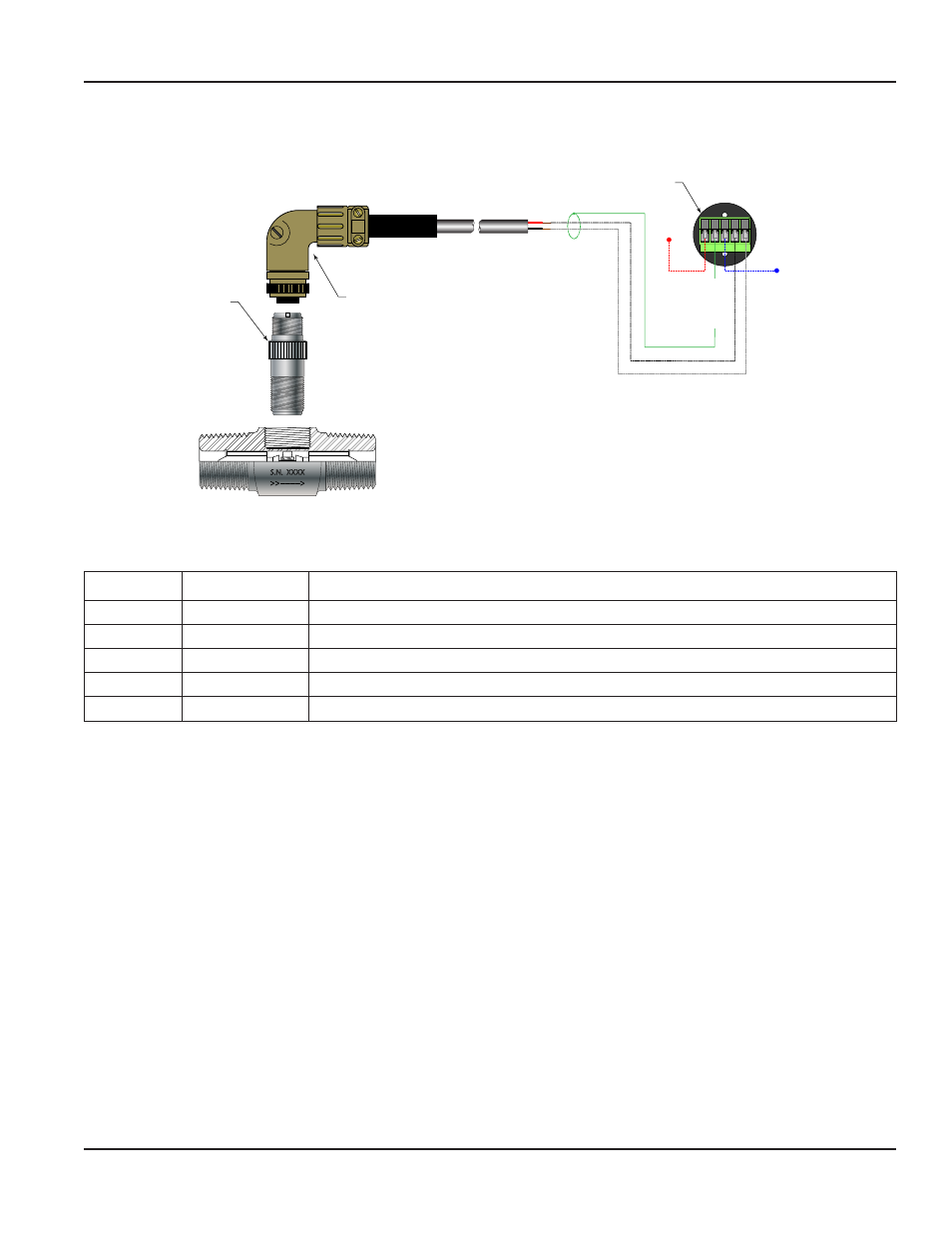

Figure 4: Wiring diagram with RF pickup, cable assembly and preamplifier

Terminal

Description

Notes

1

Power

7…30V DC

2

Common

Power return

3

Output signal

10V Square wave

4

Input

RF pickup (1 millihenry)

5

Input

RF pickup (1 millihenry)

User Manual

Page 9

November 2013
