Badger Meter High Resolution Encoders (HR-E) - Manual

INTRODUCTION
Product Inspection and Unpacking
Upon opening the shipping container, visually inspect the product
and applicable accessories for any physical damage such as
scratches, loose or broken parts, or any other sign of damage that
may have occurred during shipment.
OTTE: N If damage is found, request an inspection by the carrier’s
agent within 48 hours of delivery and file a claim with the
carrier. A claim for equipment damage in transit is the sole
responsibility of the purchaser.
License Requirements
This device complies with Part 15 of the FCC Rules. Operation of
this device is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation. Any changes made by the user not approved
by Badger Meter can void the user’s authority to operate the
equipment. No license is required by the utility to operate an HR-E
meter reading system.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
PRODUCT OVTRVITW
Description

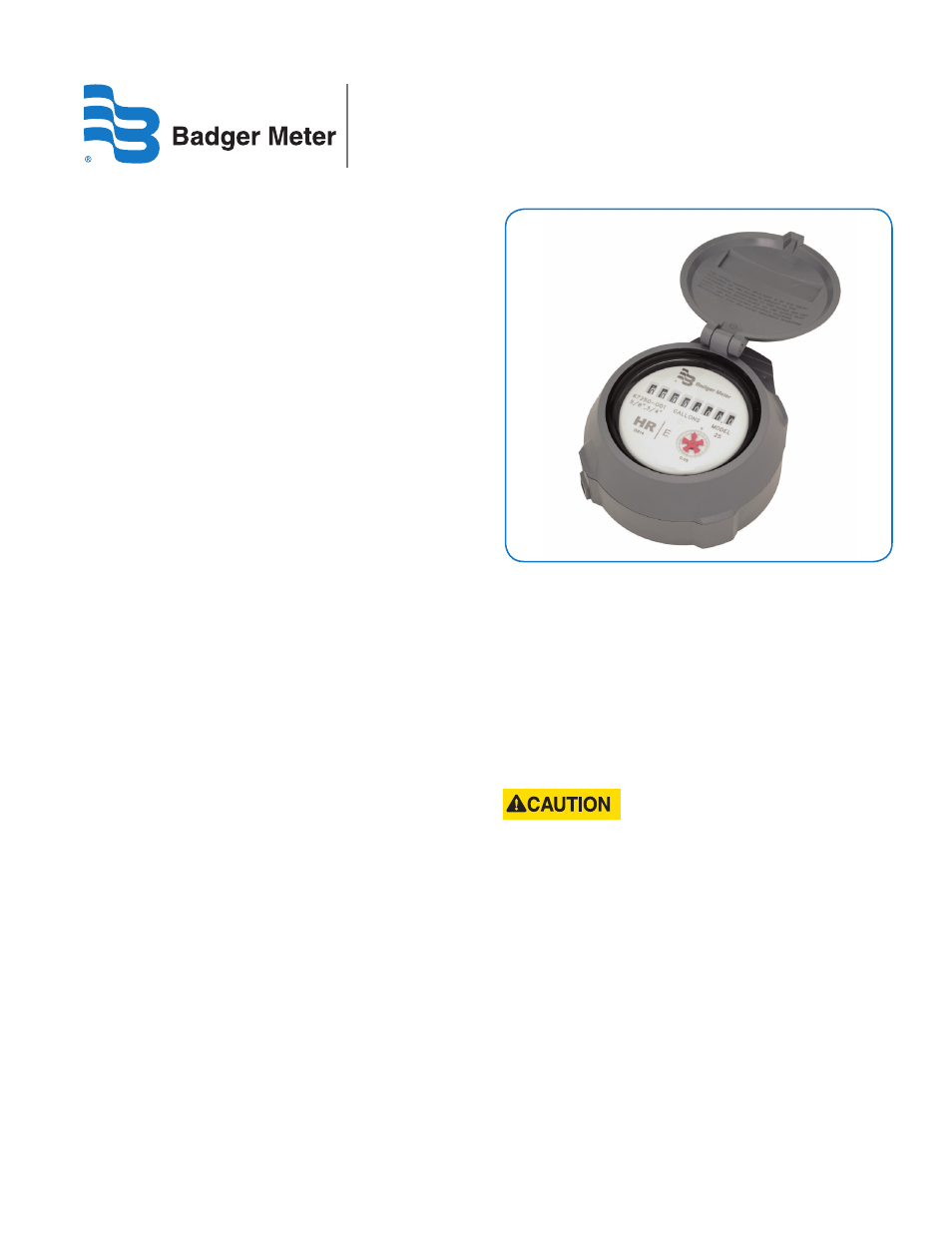

The HR-E is a fully potted, eight-wheel absolute encoder. The
encoder with glass lens is available factory pre-wired to
Badger Meter AMR/AMI products, or may be spliced to other devices
following the instructions. This version is permanently sealed to
eliminate the intrusion of moisture, dirt, or other contaminants, and
is suitable for installation in all environments, including meter pits
subject to continuous submergence.
The HR-E with terminal screws features the same permanent sealing
of the register's internal elements, but does not provide a moisture
resistant enclosure. Therefore, it is suitable for indoor installation in
a dry environment only, and is marked as such on the terminal
screw cover.
Compatibility
The HR-E is designed for use with all current Badger Meter
Recordall® Disc, Turbo Series, Compound Series, Combo Series and
Fire Service meters and assemblies. Each HR-E is clearly identified on
the face of the dial with an assembly number, unit of measure and
meter model. The HR-E provides connectivity with Badger Meter
ORION® and GALAXY® AMR/AMI endpoints, BadgerTouch® modules
and other AMR/AMI technology solutions approved by
Badger Meter.
CONNTCTING AN TNCODTR TO AN TNDPOINT
THE HR-E SHOULD ONLY BE CONNECTED TO A PRODUCT
APPROVED BY BADGER METER. CONNECTION TO AN
UNAPPROVED PRODUCT WILL VOID THE
HR-E WARRANTY.
Badger Meter encoders have a factory installed three-conductor
cable (brown) for connection to the endpoint. If the wire is cut
or broken and requires a field splice after the initial installation,
connect like-color wires to maintain proper installation.
Badger Meter wiring standards use the black wire as the negative (–)
conductor and the red as the positive (+) conductor.
Before proceeding with the installation, be certain that the
meter type and size correspond, and that the proper encoder
configuration has been supplied for the application.
HR | E High Resolution Encoder
ENC-UM-00237-EN-01 (June 2014)
