Mounting Endpoint under a Mlastic or Composite Mit Lid without Mounting Bosses
1 . Attach the two mounting clips to the endpoint with the flat side of each clip facing the endpoint bottom .

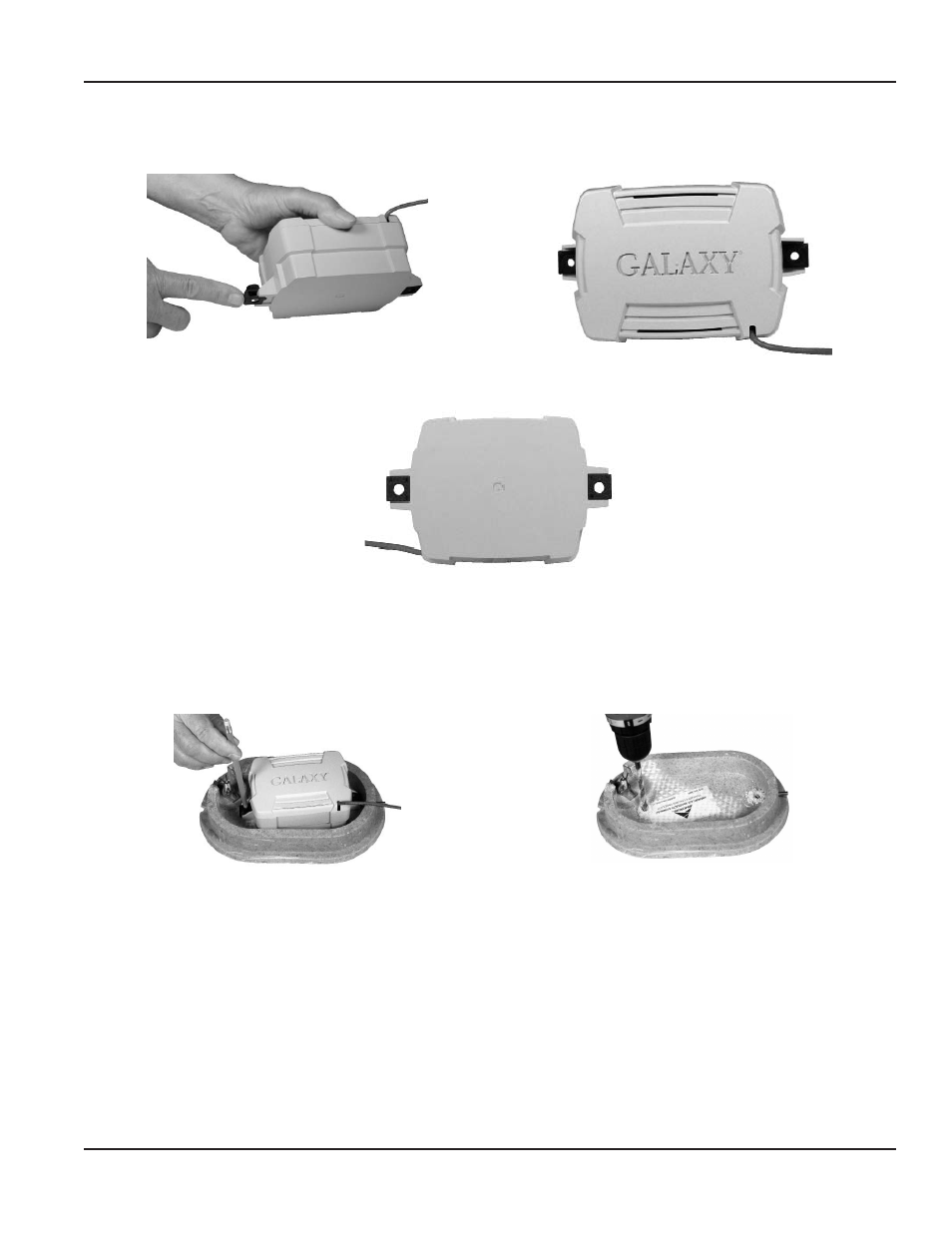

Figure 13: Pushing clip on endpoint Figure 14: Mounting clips from top
Figure 15: Mounting clips from bottom
2 . Remove the composite pit lid and turn it over . Ensure that the area inside the pit lid is flat . Adjust the endpoint so that
it fits in the bottom of the pit lid .
3 . With a pencil, mark the holes for two 1/4 inch screws .
4 . Drill the two holes for screws .
Figure 16: Mark the screw holes Figure 17: Drill the screw holes
